Hardware Installation

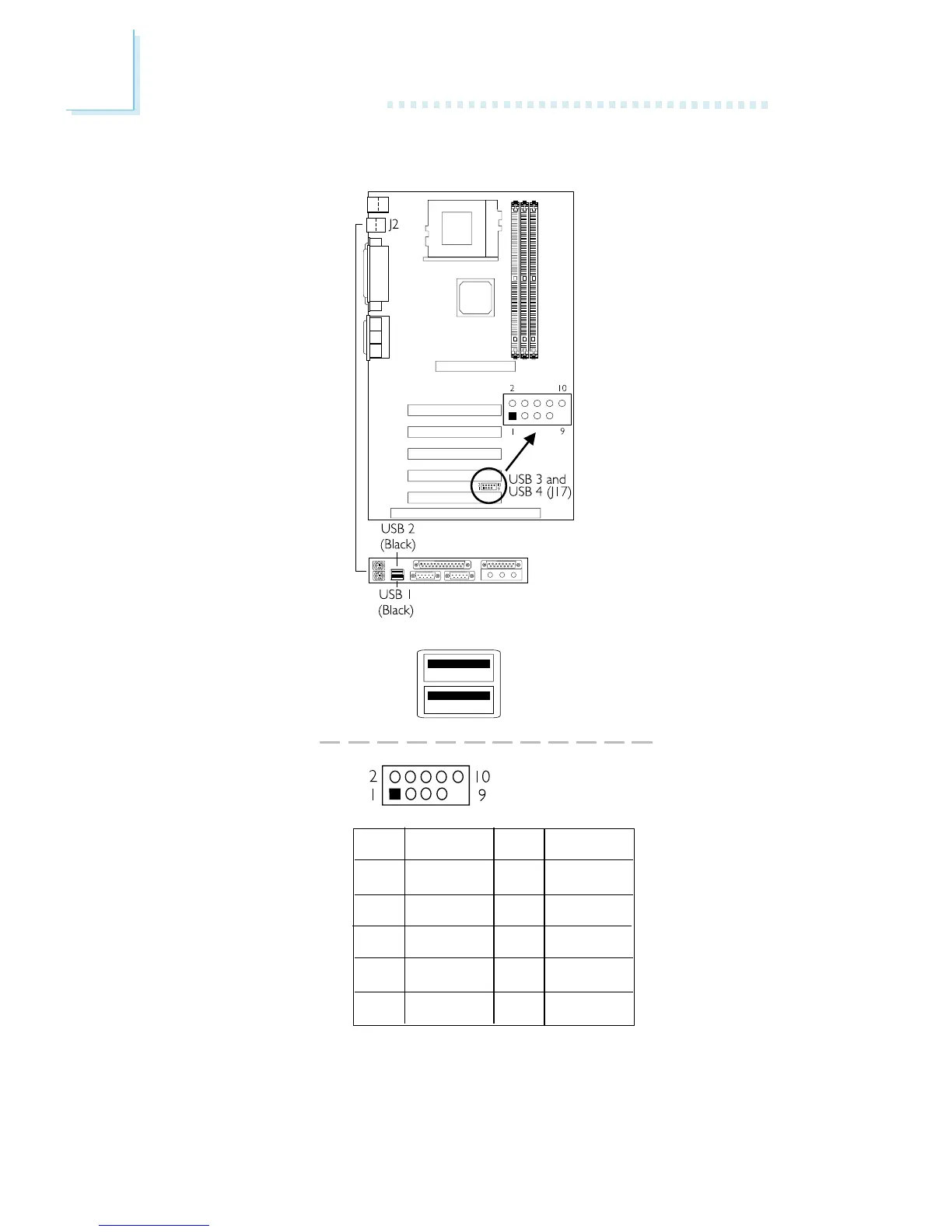

2.6.6 Universal Serial Bus Ports
J17 for USB 3
and USB 4
Pin
1
3
5
7
9
Function
VCC
-Data
+Data
Ground
Key
Function
VCC
-Data
+Data
Ground
Ground
Pin
2
4
6
8
10
USB 2
USB 1
