DFI CS330 Quick Reference

4Quick Reference | CS330-H310/Q370
DFI reserves the right to change the specications at any time prior
to the product's release. For the latest information about the product,
please visit the document download page at go.d.com/CS330-H310,
go.d.com/CS330-Q370 or via the QR codes to the right.

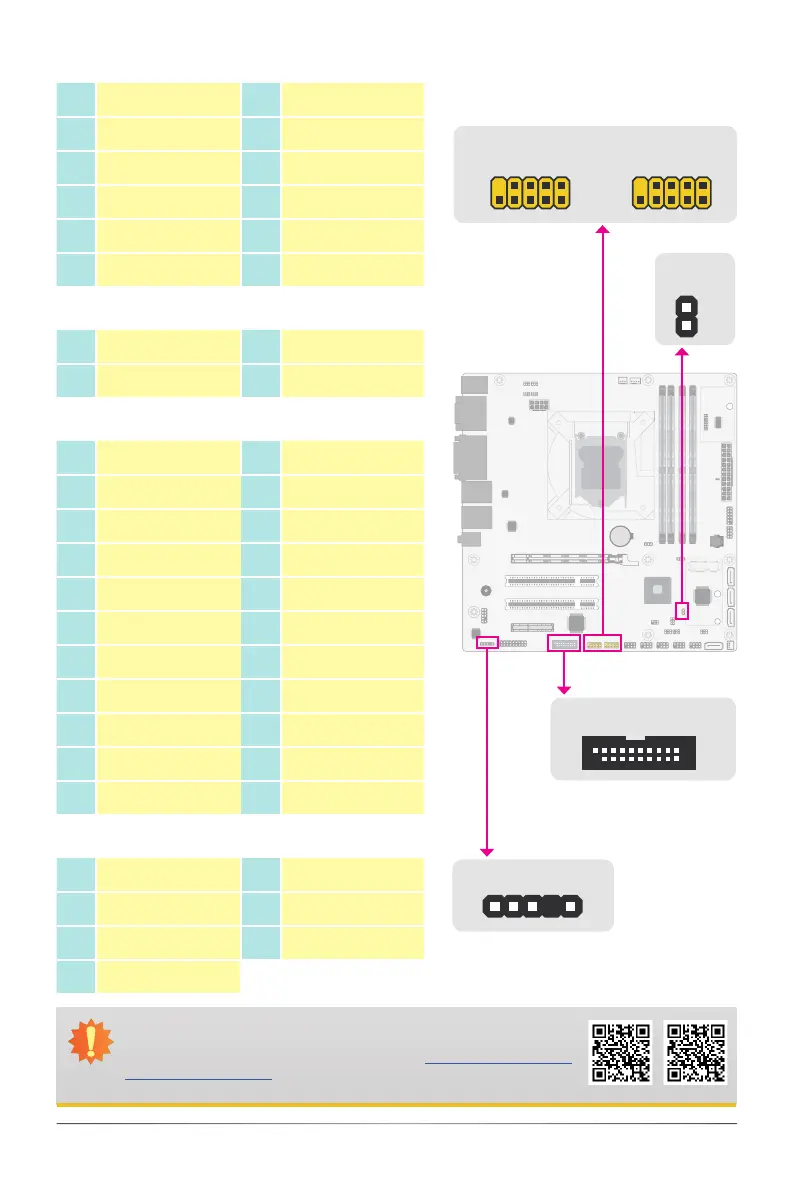

USB 2.0 Headers (for Internal I/0 USB 7/8/9/14)
Pin Assignment Pin Assignment
1 VCC 2 VCC
3 DATA- 4 DATA-
5 DATA+ 6 DATA+
7 GND 8 GND
9 --- 10 NC
Chassis Intrusion
Pin Function Pin Function
1 Signal 2 GND
USB 3.1 Gen 1 Headers (USB 5/6, CS330-Q370 only)
Pin Assignment Pin Assignment
1 PWR 11 D+
2 RX- 12 D-
3 RX+ 13 GND
4 GND 14 TX+
5 TX- 15 TX-
6 TX+ 16 GND
7 GND 17 RX+
8 D- 18 RX-
9 D+ 19 PWR
10
Over Current
Protection
20 ---
S/PDIF
Pin Assignment Pin Assignment
1 +5V 2 ---
3 SPDIF Out 4 GND
5 SPDIF In
USB 3.1 (USB 5/6)
10
11
1
USB 7/8USB 9/14
USB 2.0
1
210
9
1
210
9
S/PDIF
15
Note:
USB 9/14 can be replaced by optional vertical USB.
CS330-H310 CS330-Q370
Chassis
Intrusion
1
2
