1.3.12 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the systems power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
Lighted LED serves as a reminder that you must power-off the
system then turn off the power supplys switch or unplug the power
cord prior to installing any memory modules or add-in cards.
On: Default
3.3VSB Standby Power to PCI slots
(PCI 2.2 spec.)
Off:
Non-PCI 2.2 spec.
12 12

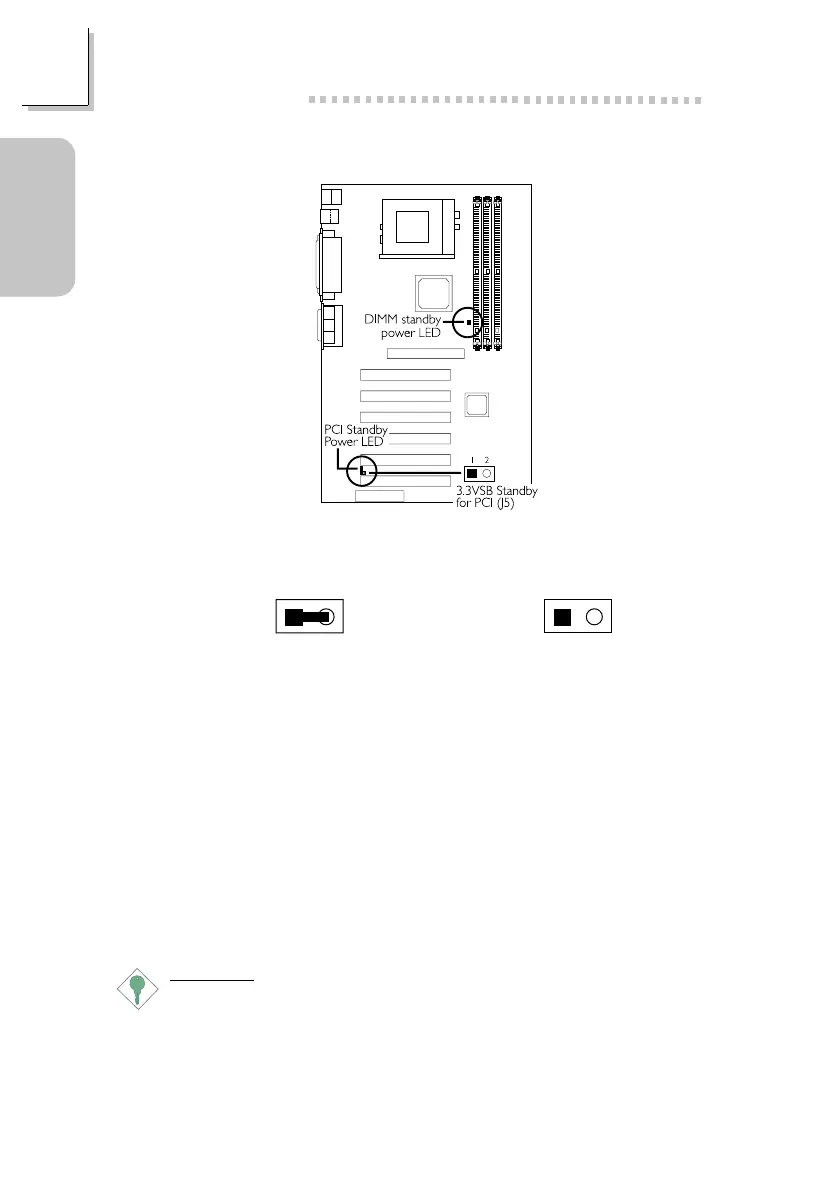

3.3VSB Standby for PCI - Jumper J5
