1.2 Jumpers

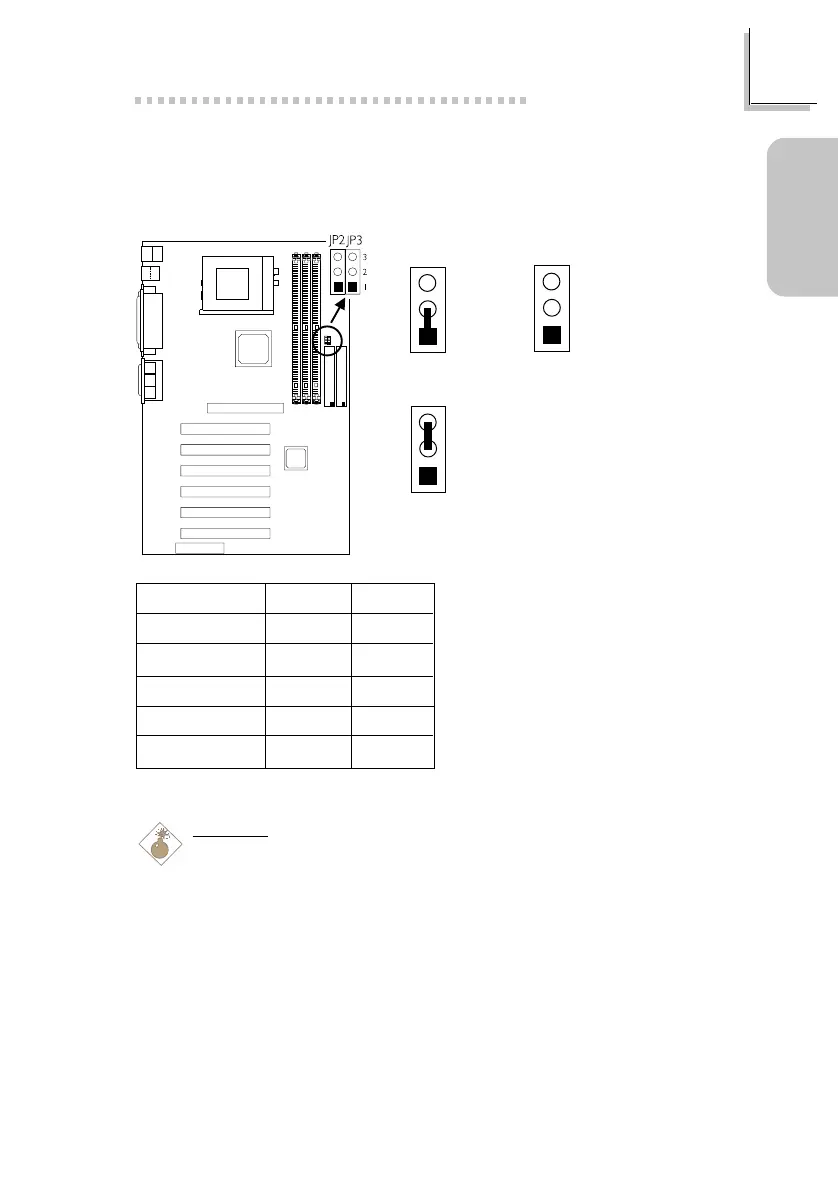

1.2.1 CPUs Front Side Bus - JP2 and JP3
Warning:
Some processors, when overclocked, may result to the processors or
systems instability and are not guaranteed to provide better system
performance. If you are unable to boot your system due to
overclocking, make sure to set these jumpers back to their default
settings.
CPU/DIMM
Auto*
66/100MHz
100/100MHz
133/100MHz
133/133MHz
JP2
1-2 On
2-3 On
All Off
All Off
2-3 On
JP3
1-2 On
2-3 On
2-3 On
All Off
All Off
* denotes default setting
2-3 On
1-2 On All Off
