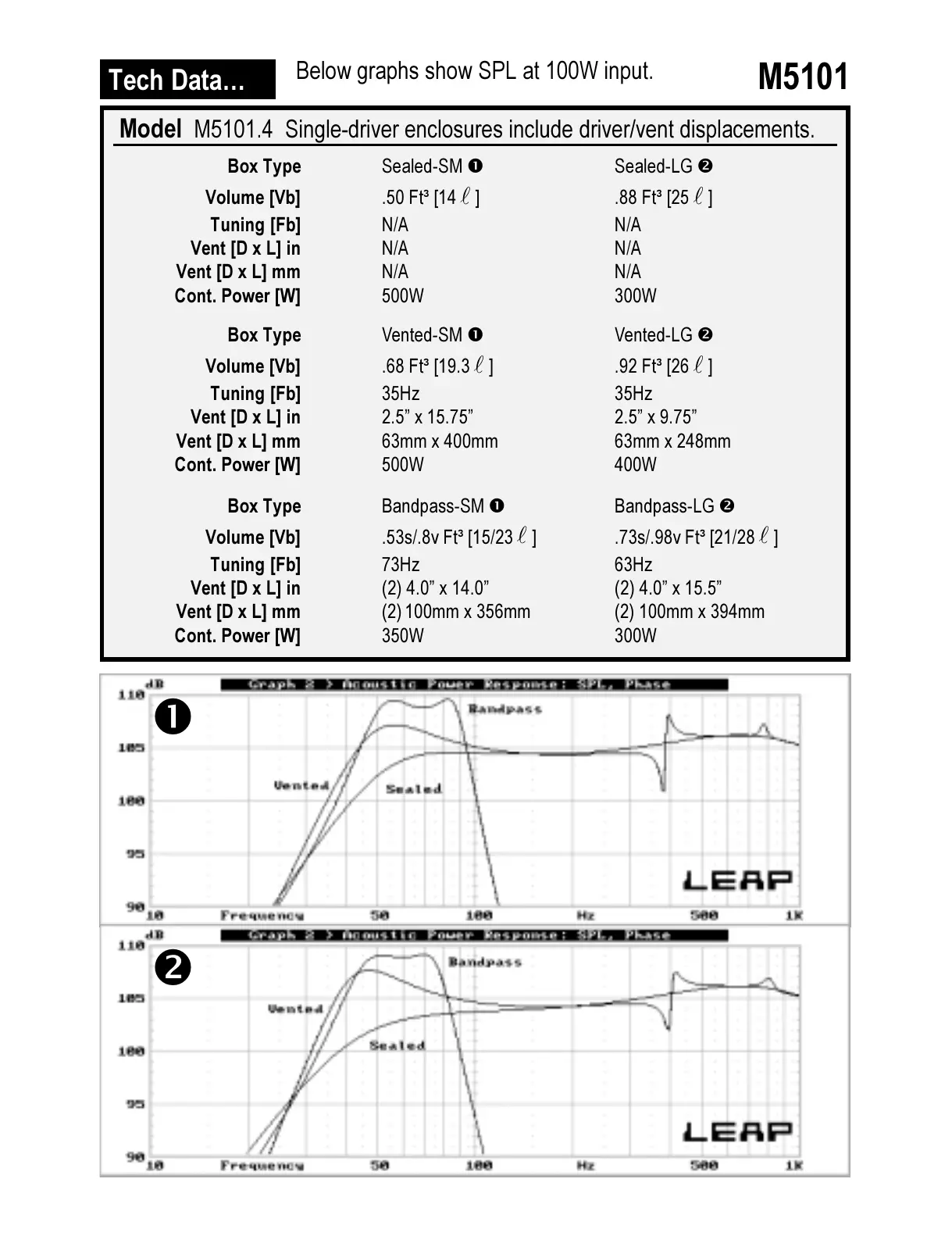

Diamond Audio Technology M5101 - M5101 Enclosure Specifications; M5101 Enclosure Data Table

Tech Data


Model M5101.4 Single-driver enclosures include driver/vent displacements.
Bandpass-SM 
.53s/.8v Ft³ [15/23
l
]
73Hz
(2) 4.0 x 14.0
(2) 100mm x 356mm
350W
Bandpass-LG 
.73s/.98v Ft³ [21/28
l
]
63Hz
(2) 4.0 x 15.5
(2) 100mm x 394mm
300W
Box Type
Volume [Vb]
Tuning [Fb]
Vent [D x L] in
Vent [D x L] mm
Cont. Power [W]
Vented-SM 
.68 Ft³ [19.3
l
]
35Hz
2.5 x 15.75
63mm x 400mm
500W
Vented-LG 
.92 Ft³ [26
l
]
35Hz
2.5 x 9.75
63mm x 248mm
400W
Box Type
Volume [Vb]
Tuning [Fb]
Vent [D x L] in
Vent [D x L] mm
Cont. Power [W]
Sealed-LG 
.88 Ft³ [25
l
]
N/A
N/A
N/A
300W
Sealed-SM 
.50 Ft³ [14
l
]
N/A
N/A
N/A
500W
Box Type
Volume [Vb]
Tuning [Fb]
Vent [D x L] in
Vent [D x L] mm
Cont. Power [W]
M5101
Below graphs show SPL at 100W input.
