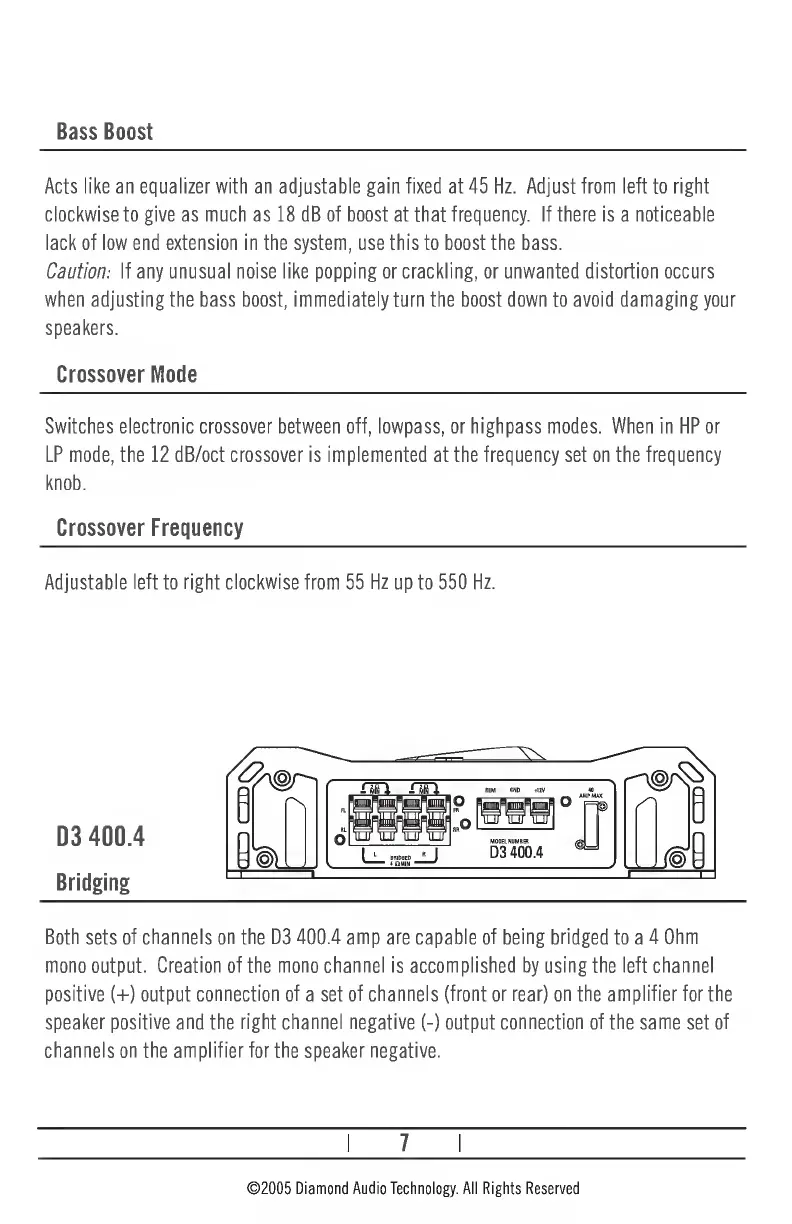

Bass
Boost
Acts
like
an
equalizer
with
an
adjustable
gain
fixed
at
45
Hz.
Adjust
from
left
to
right
clockwise
to
give
as
much
as
18
dB
of
boost
at
that
frequency.
If
there
is
a
noticeable
lack
of
low
end
extension
in
the
system,
use
this
to
boost
the
bass.
Caution:
If
any
unusual
noise
like
popping
or
crackling,
or
unwanted
distortion
occurs
when
adjusting
the
bass
boost,
immediately
turn
the
boost
down
to
avoid
damaging
your
speakers.
Crossover
Mode
Switches
electronic
crossover
between
off,
lowpass,
or
highpass
modes.
When
in
HP
or
LP
mode,
the
12
dB/oct
crossover
is
implemented
at
the
frequency
set
on
the
frequency
knob.
Crossover
Frequency
Adjustable
left
to
right
clockwise
from
55
Hz
up
to
550
Hz.
D3
400.4
Bridging
Both
sets
of
channels
on
the
D3
400.4
amp
are
capable
of
being
bridged
to
a
4
Ohm
mono
output.
Creation
of
the
mono
channel
is
accomplished
by
using
the
left
channel
positive
(+)
output
connection
of
a
set
of
channels
(front
or
rear)
on
the
amplifier
for
the
speaker
positive
and
the
right
channel
negative
(-)
output
connection
of
the
same
set
of
channels
on
the
amplifier
for
the
speaker
negative.
I
7
©2005
Diamond
Audio
Technology.
All
Rights
Reserved
