Set the I/O port to ON when configured as an output
To set the I/O port to ON when it is configured as an output:
gpio inout on
Input(s):
in : OFF
Output(s):
inout : ON
OK
The Input and Input/Output connections (pins 2 and 3) are programmed via the command line
using the gpio command. The default setting for pins 2 and 3 is OFF, as seen in the above example.
Note Use only one of the power connectors. Never apply power to both the MAIN and AUX
connectors at the same time.

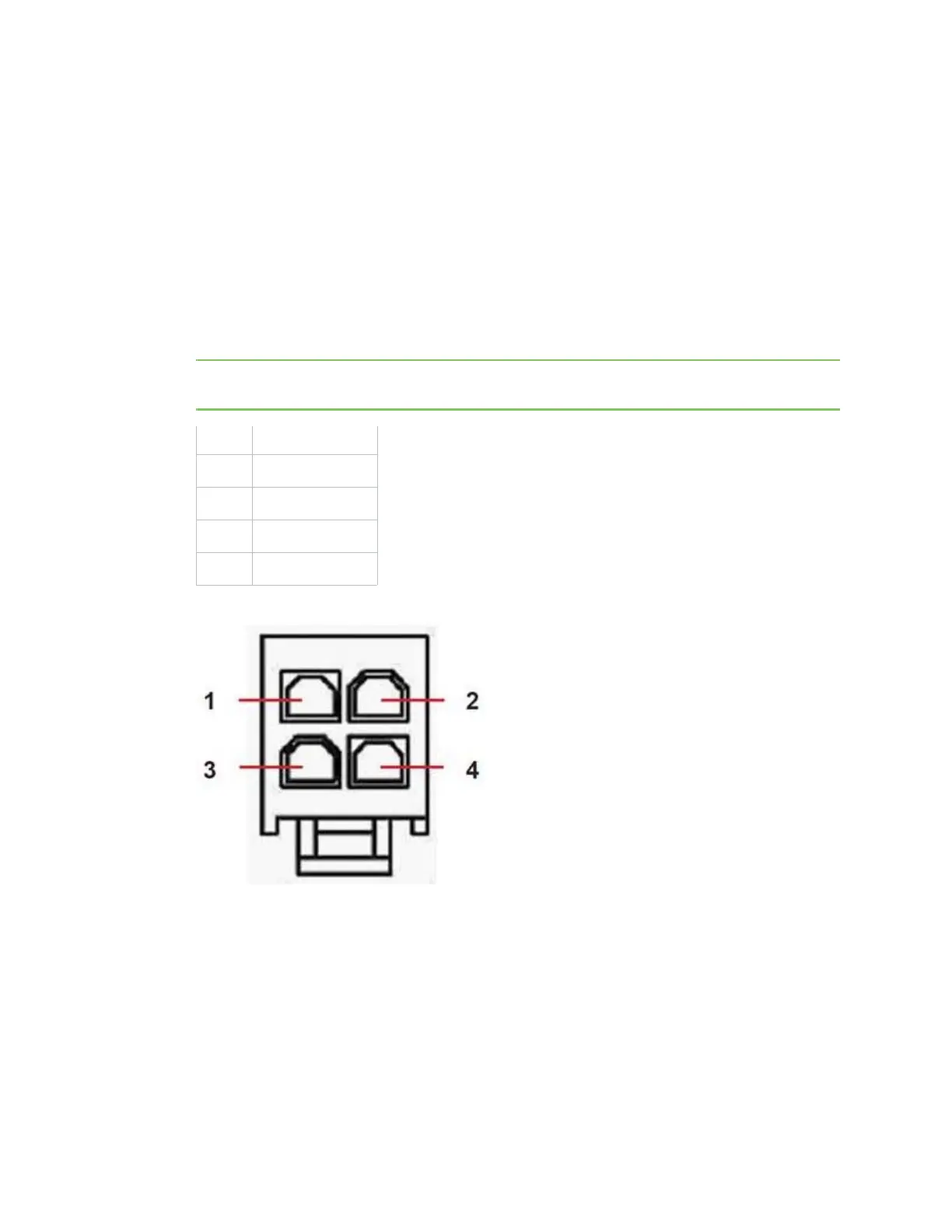

The following image shows the pins and the corresponding numbers:
For more information on wiring and other details, see the 4-pin DC Power Cord User Guide, Digi part
number 90001246.
Pin Description
Pin 1 GROUND
Pin 2 INPUT
Pin 3 Input/ Output
Pin 4 Power
