PGM
RLY2 RLY1
RF
Relay Relay
9 - 28V

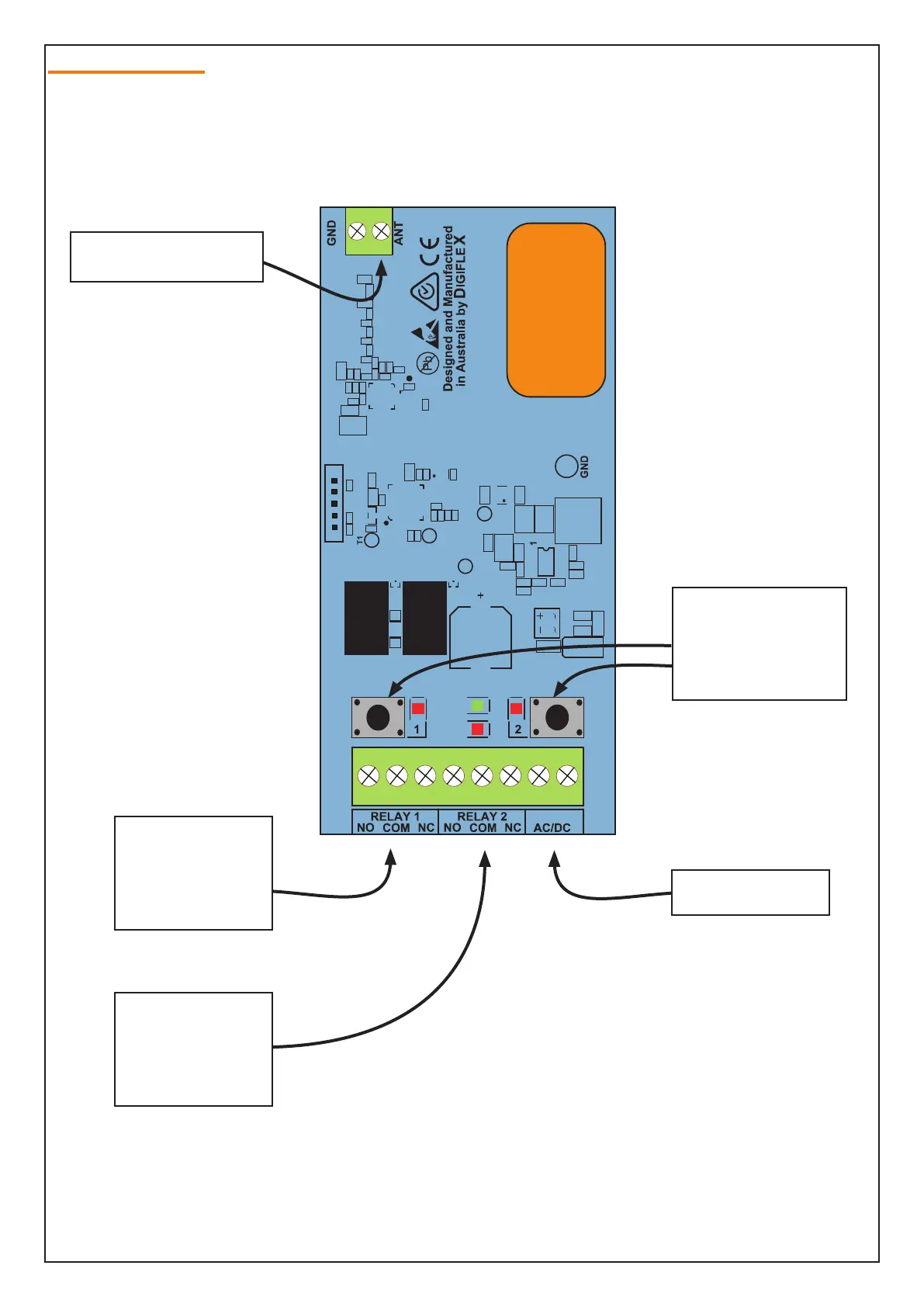

Figure 2: RF159 Connection Diagram
Connection Diagram
Antenna connects here
Relay 1 terminal
connections are
used to connect to a
3rd party device.
Relay 2 terminal
connections are
used to connect to a
3rd party device.
Relay 1 and Relay 2
can be manually
operated by pressing
their respective
buttons.
Power input
A.C. or D.C. 9 - 28 V
