DIGITECH Audio CS-2463 - Specifications; Installation; Notes; Mounting Diagram

Specifications:
Speaker: 2x2.5”
Sensitivity: 88dB
Power:  15WRMS
FrequencyRange: 60‐20kHz
Impedance: 8ohm
Dimensions: 89(H)x209(W)x109(D)mm

Installation:
‐Connectthepositiveleadtotheredterminalonthespeaker.
‐Connectthenegativeleadtotheblackterminalonthespeaker.
‐Connecttheleadstoyouramplifier,ensuringthatthepolarityiscorrect–positivetopositive
(redtored),negativetonegative(blacktoblack).

Notes:
‐Donotattempttoopen,modifyorrepairanypartofthespeakers.
‐Donotgetthespeakerswet.
‐Whencleaning,useasoftlightlydampclothfreeofchemicals.


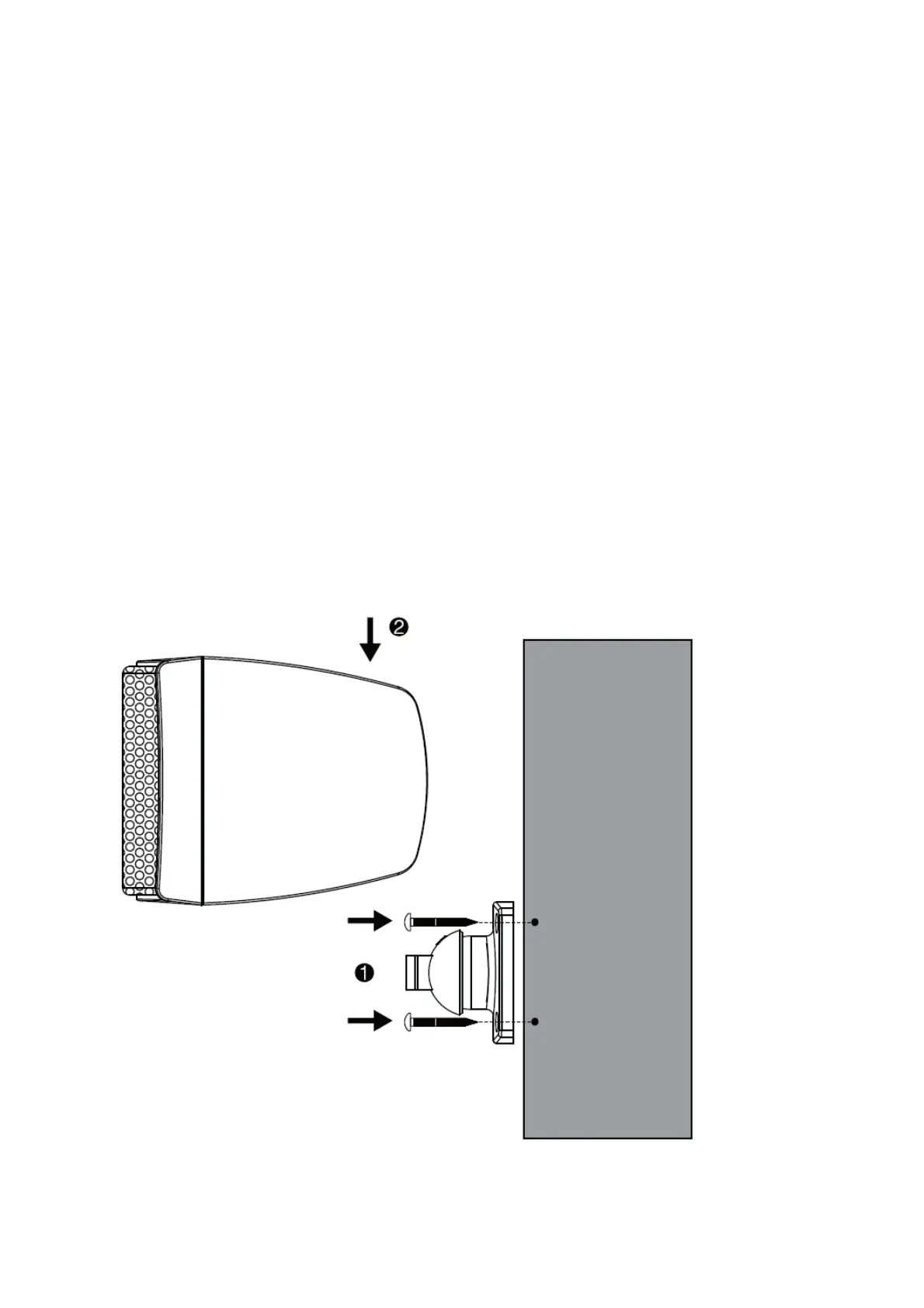

MountingDiagram:


