ASSEMBLY DimasTech Easy V.3.0 –
PD001_16mm

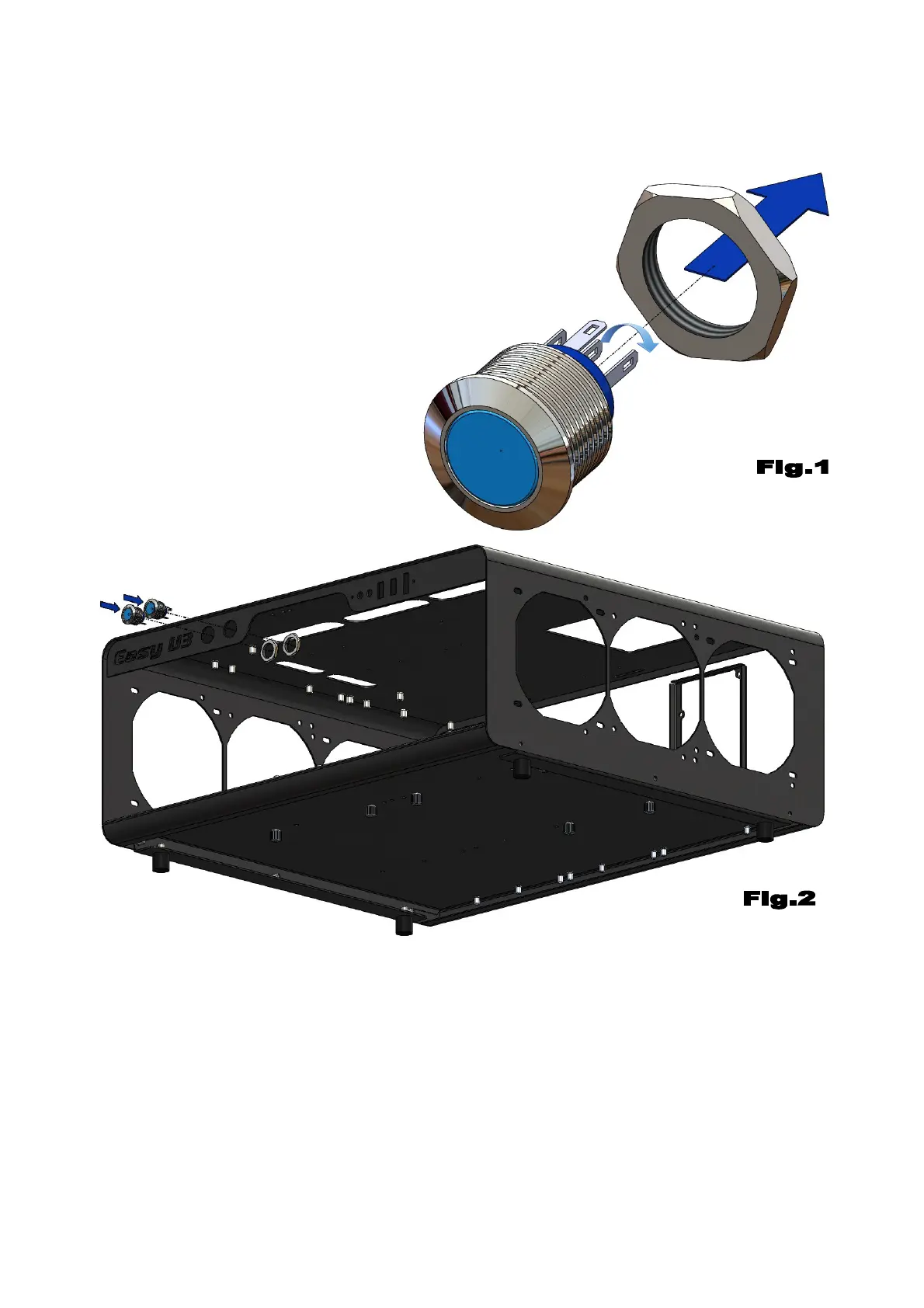

– Unscrew the hexagon nut of the
pushbutton PD001_16mm (11), as
shown in Figure 1
- Before proceeding with the
assembly of the hardware parts, it
is necessary to extract the BT148
(3) and BT149 components (4) as
shown in STEP-2 and STEP-5.
- Align No.2 PD001_16mm (11) to the No.2 horizontal holes in the front of the
body DIMAS_400_C_RF-RB_V.3.0 (1) and fasten with the previously unscrewed
hexagon nuts, as shown in Figure 2
Note: The number indicated in the brackets indicates the corresponding
identification in the table on the page No.2
