Commissioning English
 Select display P9. P9 flashes.
 Press the ENTER key. OFF flashes.
 Use the keys to select ON. ON flashes.
 Press the ENTER key. Display DC flashes.
NOTE
i
Display DC/AC stands for the control signal of the
central control device. Either DC or AC must be se-
lected depending on the type used.
Selecting the DC control signal
 Use the keys to select DC. Display flashes.
 Press the ENTER key. WSG appears. OFF flashes.
NOTE
i
Only for operation on the central control unit ZWU
06E: If the usage area “WSG Intelligent” was selected
(see standard display), switch to WSG ON (ON
flashes).

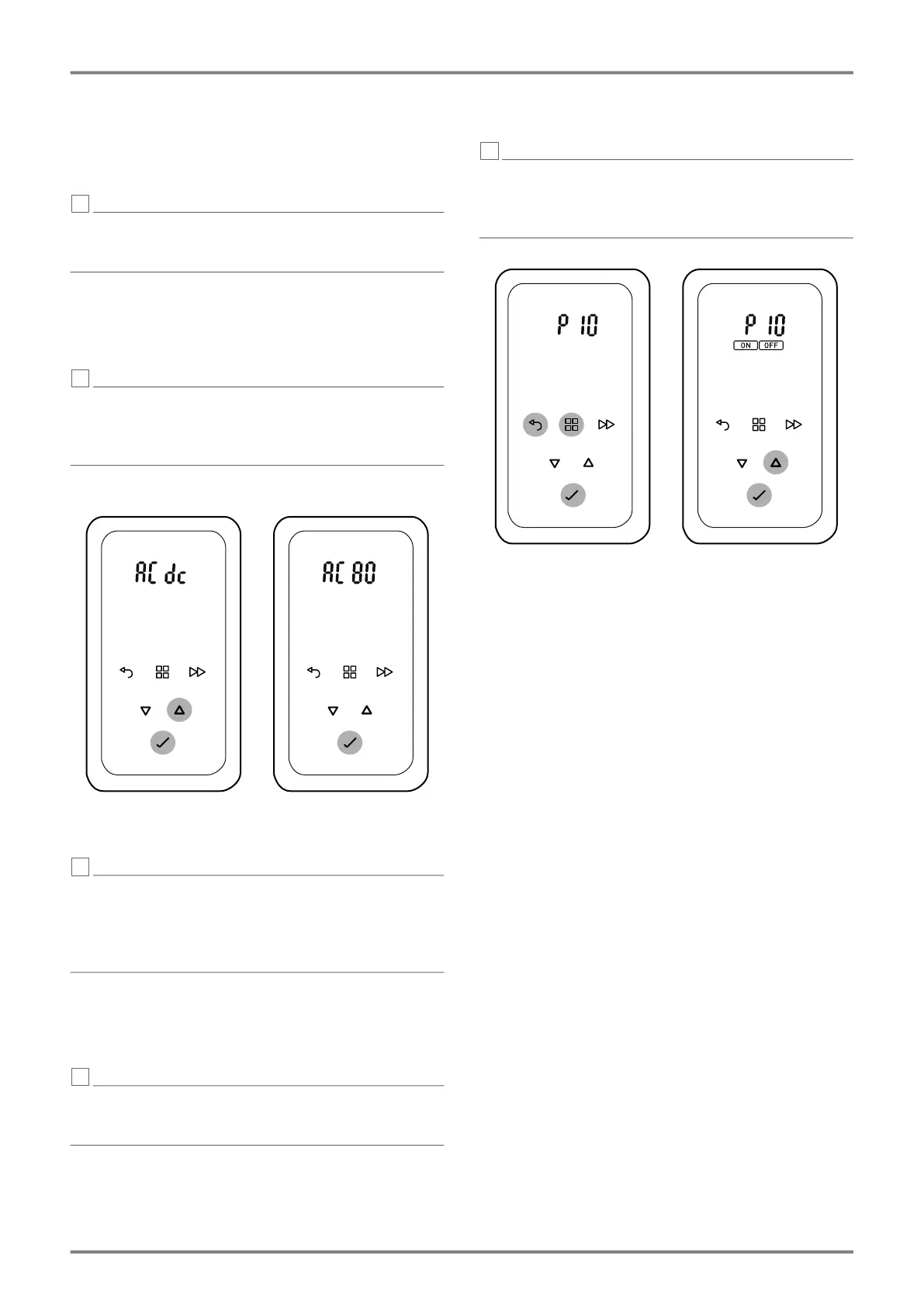

Selecting the AC control signal
 Use the keys to select AC. Display flashes.
 Press the ENTER key. Display 80 flashes.
NOTE
i
Display AC 80 stands for the maximum control signal
duty cycle (duty cycle signal) of the central control de-
vice.
In special cases, e.g. extremely old systems, the duty
cycle signal may need to be adjusted.
 If necessary, adjust the duty cycle signal with the
keys.
 Press the ENTER key. WSG appears. OFF flashes.
NOTE
i
O nly for operation on the central control unit ZWU 06E:
If the usage area “WSG Intelligent” was selected (see
standard display), switch to WSG ON (ON flashes).
 Press the ENTER key. Setting is complete.
P10 – Operation with external room temperature
controller
NOTE
i
The device has an integrated room temperature con-
troller with week program. But if the device is to be
controlled via an external controller, program P10
must be set to ON.
 Call up the installer menu.
 Confirm the PIN code four times with the ENTER
key. Display P9 flashes.
 Use the keys to select P10. Display flashes.
 Press the ENTER key. OFF flashes.
 Use the keys to select ON. ON flashes.
 Press the ENTER key. Setting is complete.
