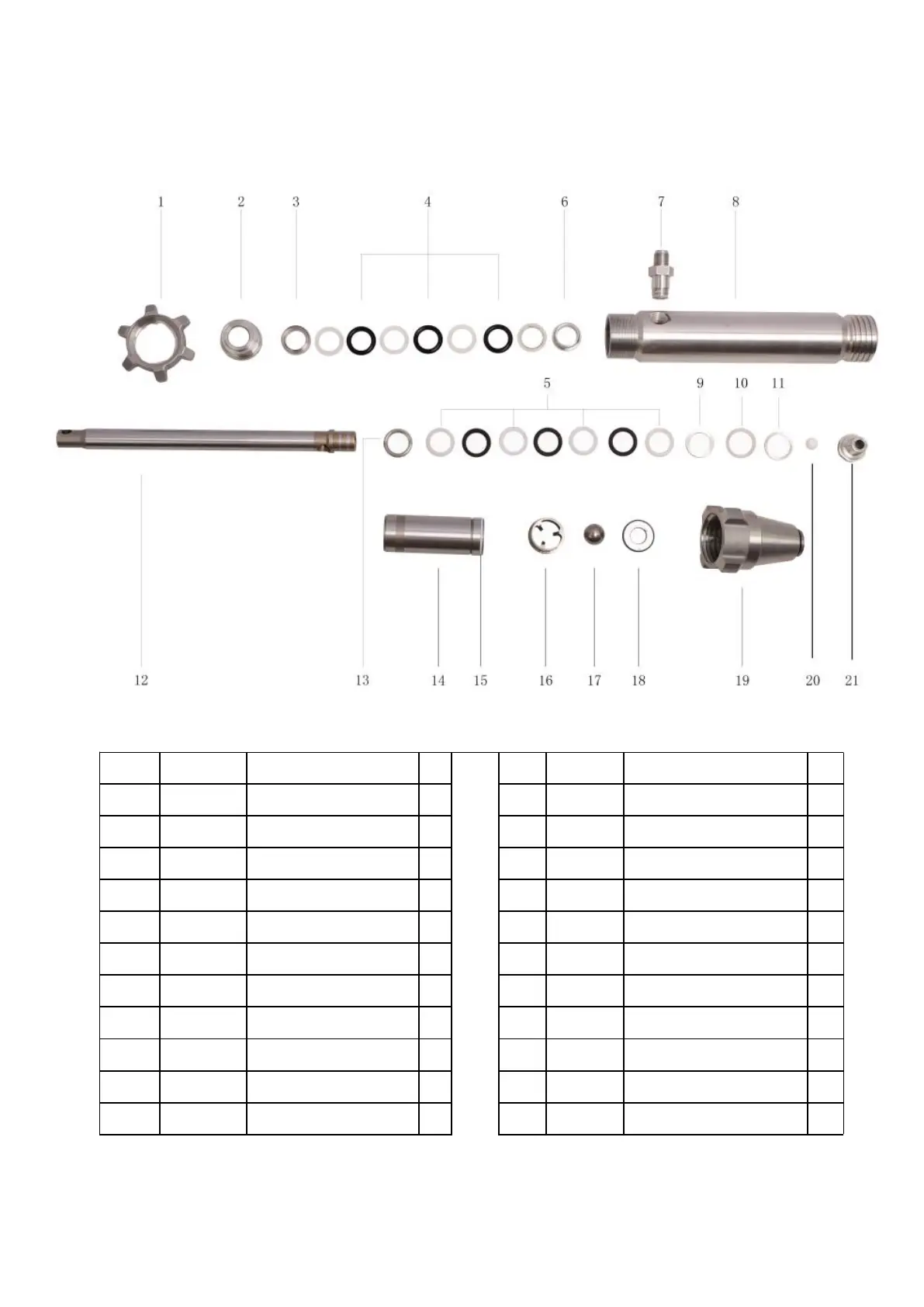

X80L Fluid Pump assembly
No.
Serial No.
Description
Qty
No.
Serial No.
Description
Qty
1
X80101
NUT, retaining
1
12
X801012
Piston rod
1
2
X80102
NUT, packing
1
13
X801013
Gland, piston
1
3
X80103
Gland
1
14
X801014
Sleeve, cylinder
1
4
X80104
V-packing, throat
7
15
X801015
O-ring
1
5
X80105
V-packing, piston
7
16
X801016
Guide, ball
1
6
X80106
Gland
1
17
X801017
Ball
1
7
X80107
Fitting, nipple, adapter
1
18
X801018
Carbide kit, seat
1
8
X80108
Cylinder, pump
1
19
X801019
Valve, intake
1
9
X80109
Gland, female, piston
1
20
X8010120
Ball
1
10
X801010
Wiper, piston
1
21
X8010121
Valve, piston
1
11
X801011
Washer
1
