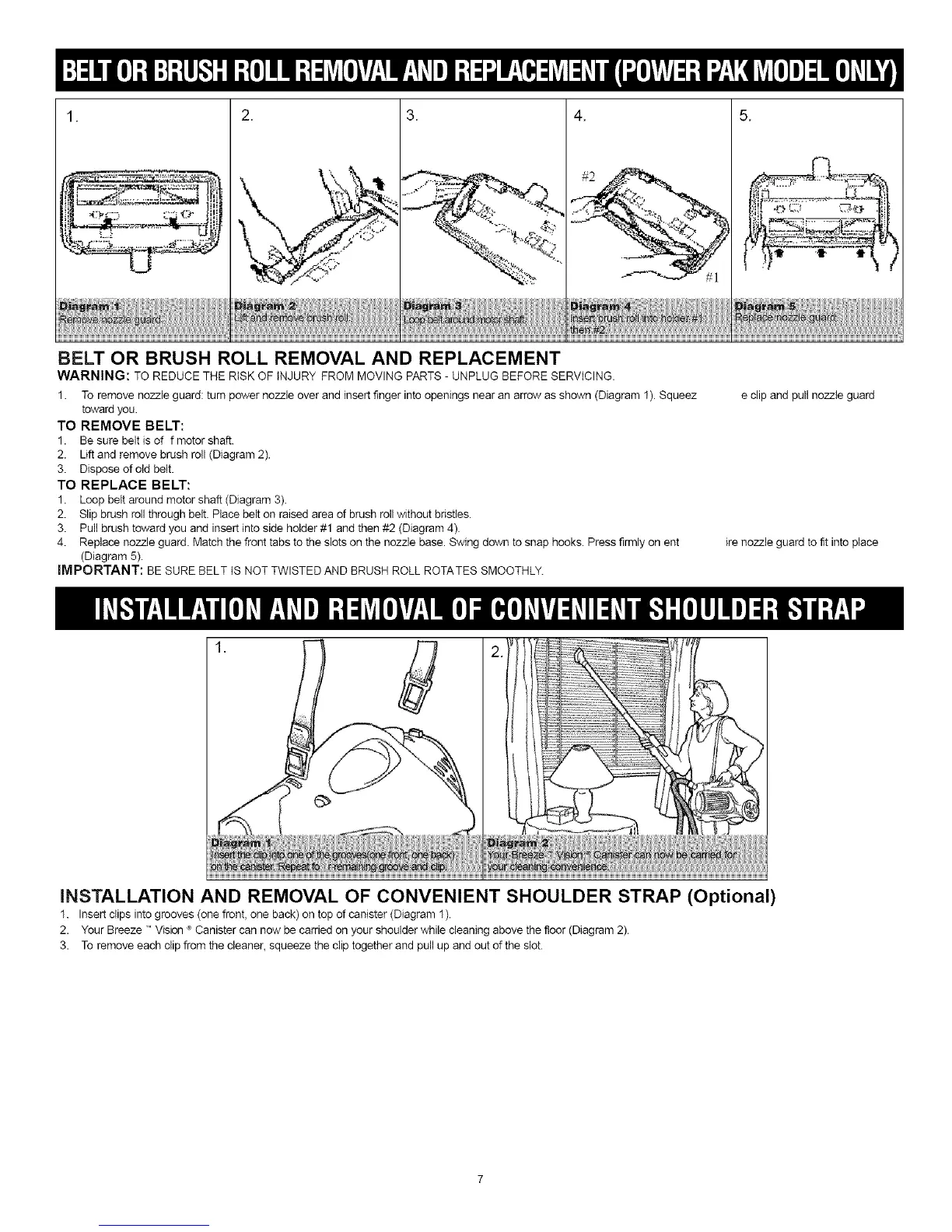

BELT OR BRUSH ROLL REMOVAL AND REPLACEMENT
WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING.
.
1. To remove nozzle guard: tum power nozzle over and insertfinger into openings near an arrow as shown (Diagram I). Squeez
towardyou.
TO REMOVE BELT:
1. Be sure belt is of f motor shaft.
2. Lift and remove brush roll (Diagram 2).
3. Dispose of old belt.
TO REPLACE BELT:
1. Loop belt around motor shaft (Diagram 3).
2. Stip brush roll through belt. Place belt on raised area of brush rotl without bristles.
3. Pull brush toward you and insert into side holder #1 and then #2 (Diagram 4).
4. Replace nozzle guard. Match the front tabs to the slots on the nozzle base. Swing down tosnap hooks. Pressfirmly on ent
(Diagram 5).
IMPORTANT: BE SURE BELT tS NOT TWISTED AND BRUSH ROLL ROTATES SMOOTHLY.
e clip and pult nozzle guard
ire nozzle guard to tit into place
INSTALLATION AND REMOVAL OF CONVENIENT SHOULDER STRAP (Optional)
1. Insert clips into grooves (one front, one back) on top of canister (Diagram 1).
2. Your Breeze " Vision ® Canister can now be carried on your shoulder while cleaning above the floor (Diagram 2).
3. To remove each clip from the cleaner, squeeze the clip together and pull up and out of the slot.
