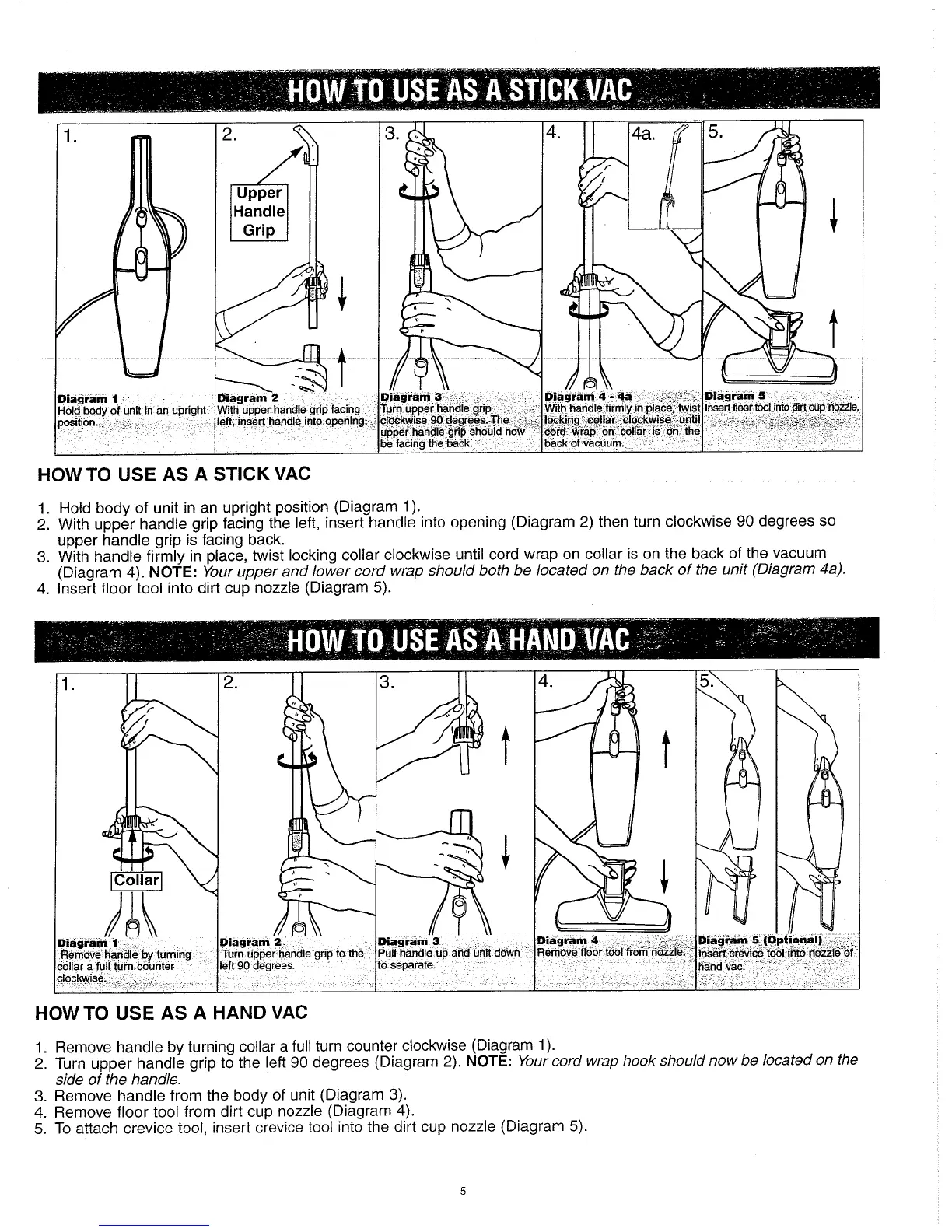

HOW TO USE AS A STICK VAC
1.
Hold body of unit in an upright position (Diagram
1).
2. With upper handle grip facing the left, insert handle into opening (Diagram 2) then turn clockwise
90
degrees so
upper handle grip is facing back.
3.
With handle firmly in place, twist locking collar clockwise until cord wrap on collar is on the back of the vacuum
(Diagram
4).
NOTE:
Your upper and lower cord wrap should both be located on the back of the unit (Diagram
#a).
4.
Insert floor tool into dirt cup nozzle (Diagram
5).
HOW TO USE AS
A
HAND VAC
1.
Remove handle bv turnina collar a full turn counter clockwise (Diaqram
1).
- --
-.-
2. Turn upper hand~; grip t< the left
90
degrees (Diagram 2). NOTE:
~our cord wrap hook should now be located on the
side of the handle.
3.
Remove handle from the body of unit (Diagram
3).
4. Remove floor tool from dirt cup nozzle (Diagram 4).
5. To attach crevice tool, insert crevice tool into the dirt cup nozzle (Diagram 5).

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dirt Devil Swift Stick and is the answer not in the manual?

Dirt Devil Swift Stick Specifications

General IconGeneral
Cleaning typeDry
Vacuum air filtering-
Dirt separating methodFiltering
Working width (standard brush)228.6 mm
Product typeUpright vacuum
Dust capacity- L
Product colorBlack, Red
Dust container typeBagless
Power sourceAC
AC input voltage120 V
Maximum input power- W
Cord length5.18 m
Quantity1
Crevice toolYes
Weight and Dimensions IconWeight and Dimensions
Weight1810 g
