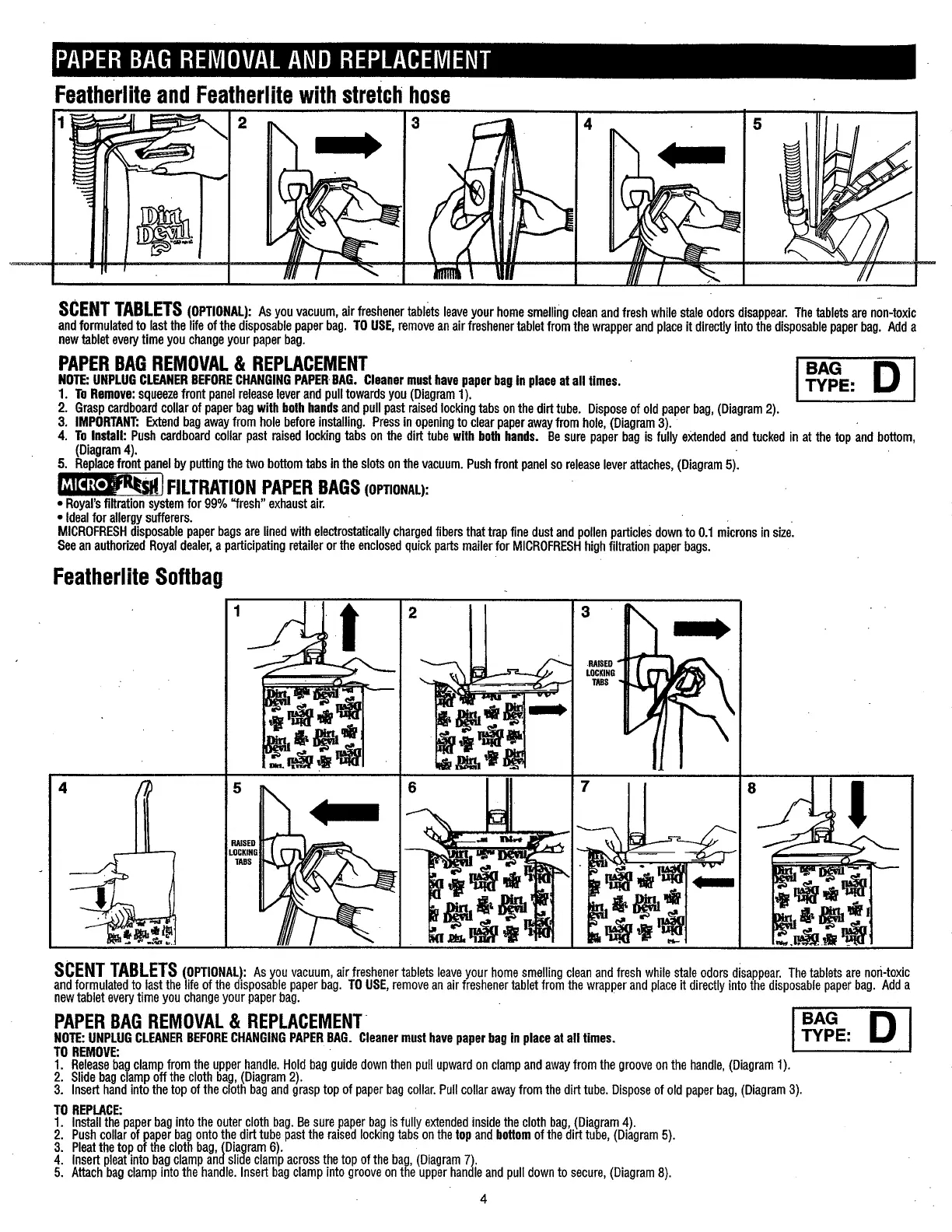

Dirt Devil UPRIGHT Series - PAPER BAG REMOVAL AND REPLACEMENT; Featherlite and Featherlite with stretch hose Bag Removal; Featherlite Softbag Bag Removal

Featherlite and Featherlite with stretch hose
SCENT TABLETS (OPTIONAL): As you vacuum, air freshener tablets leave your home srnelliig clean and fresh while stale odors disappear. The tablets are non-toxic
and formulated to last the life of the disposable paper bag. TO USE, remove an air freshener tablet from the wrapper and place it directly into the disposable paper bag. Add a
new tablet every time you change your paper bag.
PAPER BAG REMOVAL & REPLACEMENT
NOTE: UNPLUG CLEANER BEFORE CHANGING PAPERBAG. Cleaner must have paper bag in place at all times.
1. To Remove: squeeze front panel release lever and pull towards you (Diagram 1).
2. Grasp cardboard collar of paper bag with both hands and pull past raised locking tabs on the dirt tube. Dispose of old paper bag, (Diagram 2).
3. IMPORTANt Extend bag away from hole before installing. Press in opening to clear paper away from hole, (Diagram 3).
4. To Install: Push cardboard collar past raised locking tabs on the dirt tube with both hands. Be sure paper bag is fully extended and tucked in at the top and bottom,
(Diaaram
41.
, - . ..-. .. . . . . , .
5. Replace front panel by putting the two bottom tabs in the slots on the vacuum. Push front panel so release lever attaches, (Diagram 5).
-71 FILTRATION PAPER BAGS (o~ONAL):
Royal's filtration system for 99% "fresh" exhaust air.
Ideal for allergy sufferers.
MICROFRESH disposable paper bags are lined with electrostatically charged fibers that trao fine dust and ~ollen oarticles down to
0.1 microns in size.
See an authorizedRoyal dealer, a participating retailer or the enclosed quick parts mailer for
MICROFRESH high jiltration paper bags.
Featherlite Softbag
3
- RAISE0
LOCKING
-
TllBs
SCENT TABLETS (OPTIONAL): As you vacuum, air freshener tablets leave your home smelling clean and fresh while stale odors disappear. The tablets are nori-toxic
and formulated to last the life of the disposable paper bag.
TO USE, remove an air freshener tablet from the wrapper and place it directly into the disposable paper bag. Add a
new tablet every time you change your paper bag.
PAPER BAG REMOVAL & REPLACEMENT-
NOTE: UNPLUG CLEANER BEFORE CHANGING PAPER BAG. Cleaner must have paper bag in place at all times.
TO REMOVE:
1. Release bag clamp from the upper handle. Hold bag guide down then pull upward on clamp and away from the groove on the handle, (Diagram 1).
2. Slide bag clamp off the cloth bag, (Diagram 2).
3. Insert hand into the top of the cloth bag and grasp top of paper bag collar. Pull collar away from the dirt tube. Dispose of old paper bag, (Diagram 3).
TO REPLACE:
1. Install the paper bag into the outer cloth bag. Be sure paper bag is fully extended inside the cloth bag,jDia ram 4).
2. Push collar of paper bag onto the dirt tube past the ra~sed locking tabs on the top and bottom of the dlR tu!e, (D~agram 5).
3. Pleat the top of the cloth bag, Dia ram 6).
4. Insert pleat mto bag clamp ani sde clamp across the top of the bag, (Diagram 7 .
5. Attach bag clamp into the handle. Insert bag clamp into groove on the upper han d le and pull down to secure, (Diagram 8).
