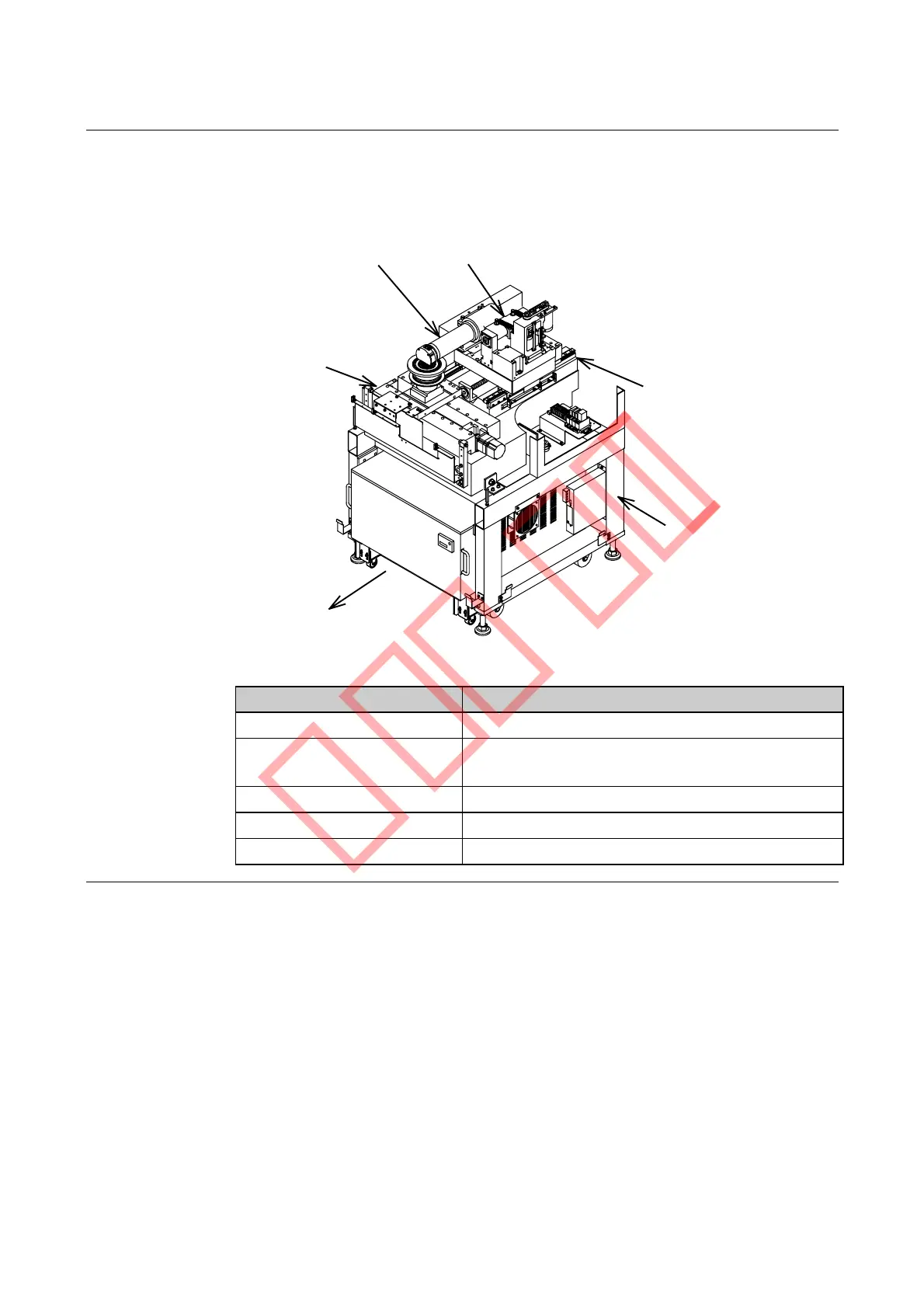

Axis arrangement diagram [DAC552]
The diagram and the table below show axis arrangement, names and functions
of each axis for the DAC552.
X-axis
Spindle shaft
Y-axis
Z-axis
Main body frame
Front
Name Function
X-axis Moves the chuck table to the right and the left.
Y-axis Moves the spindle shaft and the microscope
forward and backward.
Z-axis Moves the spindle up and down.
Spindle Shaft Section Rotates a blade at a high speed.
Main Body Frame Supports the machine main body.
