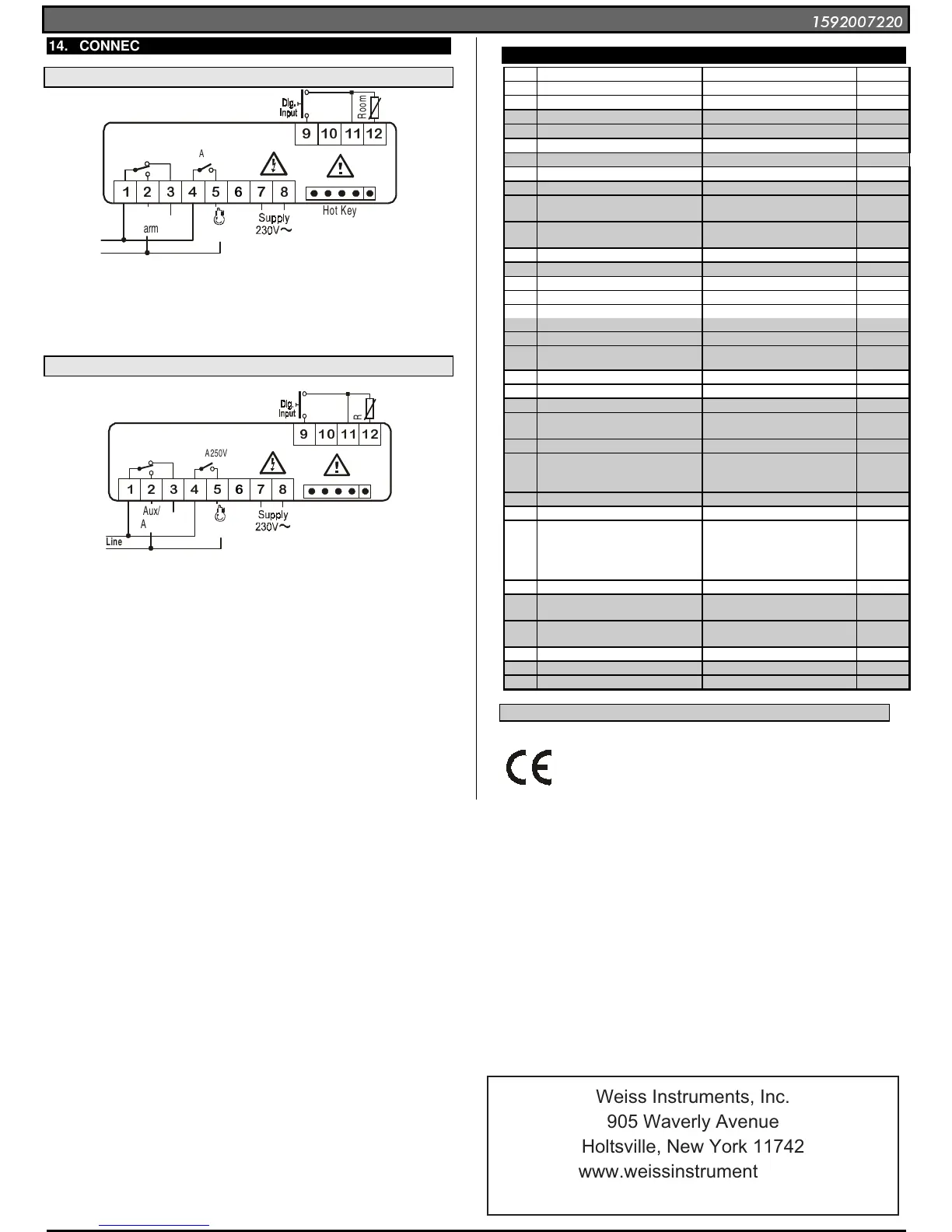

14. CONNECTIONS
14.1 XR30C: 8A COMPRESSOR
N.C.
 

Comp
Aux/
Alarm

Room
Hot Key
8(3)A250V
8(3)A250V
Line
12Vac/dc supply: connect to the terminals 7 and 8.
24Vac/dc supply: connect to the terminals 7 and 8.
120Vac supply: connect to the terminals 7 and 8.
14.2 XR30C: 20A COMPRESSOR
N.C.
 

Comp

Hot Key
8(3)A250V 20(8)A250V
Lin e
Aux/
Alarm
Room
12Vac/dc supply: connect to the terminals 7 and 8.
24Vac/dc supply: connect to the terminals 7 and 8.
120Vac supply: connect to the terminals 7 and 8.
15. DEFAULT SETTING VALUES
Label Name Range °C/°F
Set Set point LS÷US 3.0/37
Hy Differential
0,1÷25.5°C/ 1÷ 255°F
2.0/4
LS Minimum set point
-50°C÷SET/-58°F÷SET
-50,0/-58
US Maximum set point
SET÷110°C/ SET ÷ 230°F
110/230
Ot Thermostat probe calibration
-12÷12°C /-120÷120°F
0.0
OdS Outputs delay at start up 0÷255 min 0
AC Anti-short cycle delay
0 ÷ 50 min
1
CCt Continuos cycle duration 0.0÷24.0h
0.0
COn Compressor ON time with faulty
probe
0 ÷ 255 min
15
COF Compressor OFF time with faulty
probe
0 ÷ 255 min
30
CH Kind of action CL=cooling; Ht= heating CL
CF Temperature measurement unit
°C ÷ °F
°C/°F
rES Resolution
in=integer; dE= dec.point
dE/-
IdF Interval between defrost cycles
1
÷
120 ore
8
MdF (Maximum) length for defrost
0
÷
255 min
20
dFd Displaying during defrost
rt, it, SEt, DEF
it
dAd MAX display delay after defrost 0 ÷ 255 min 30
ALc Temperat. alarms configuration
rE= related to set;
Ab = absolute
Ab
ALU MAXIMUM temperature alarm
Set
÷
110.0°C; Set÷230°F
110/230
ALL Minimum temperature alarm
-50.0°C
÷
Set/ -58°F
÷
Set
-50/-58
ALd Temperature alarm delay
0 ÷ 255 min
15
dAO Delay of temperature alarm at
start up
0 ÷ 23h e 50’
1.3
tbA Alarm relay silencing n=no; y=yes Y
oA1 2
nd
relay configuration ALr= alarm; dEF=no select it;
LHt=auxiliary; onF=always on;
Fan= no select it
LHt
AoP Second relay polarity (oA1=ALr) oP; cL cL
i1P Digital input polarity oP=opening;CL=closing cL
i1F Digital input configuration
EAL=extern. alarm; bAL=lock
regulation; PAL=press. switch;
dor=door switch; dEF=defrost;
LHt=switch on 2
nd
relay; Htr=
cooling - heating
LHt
did Digital input alarm delay 0÷255min 5
Nps Number of activation of pressure
switch
0 ÷15
15
odc Compressor status with open
door:
no, Fan = normal;
CPr; F_C = Compr. OFF;
no
PbC Kind of probe
Ptc; ntc
ntc/Ptc
rEL Software release -- 4.0
Ptb Map code -- -
Hidden parameters
