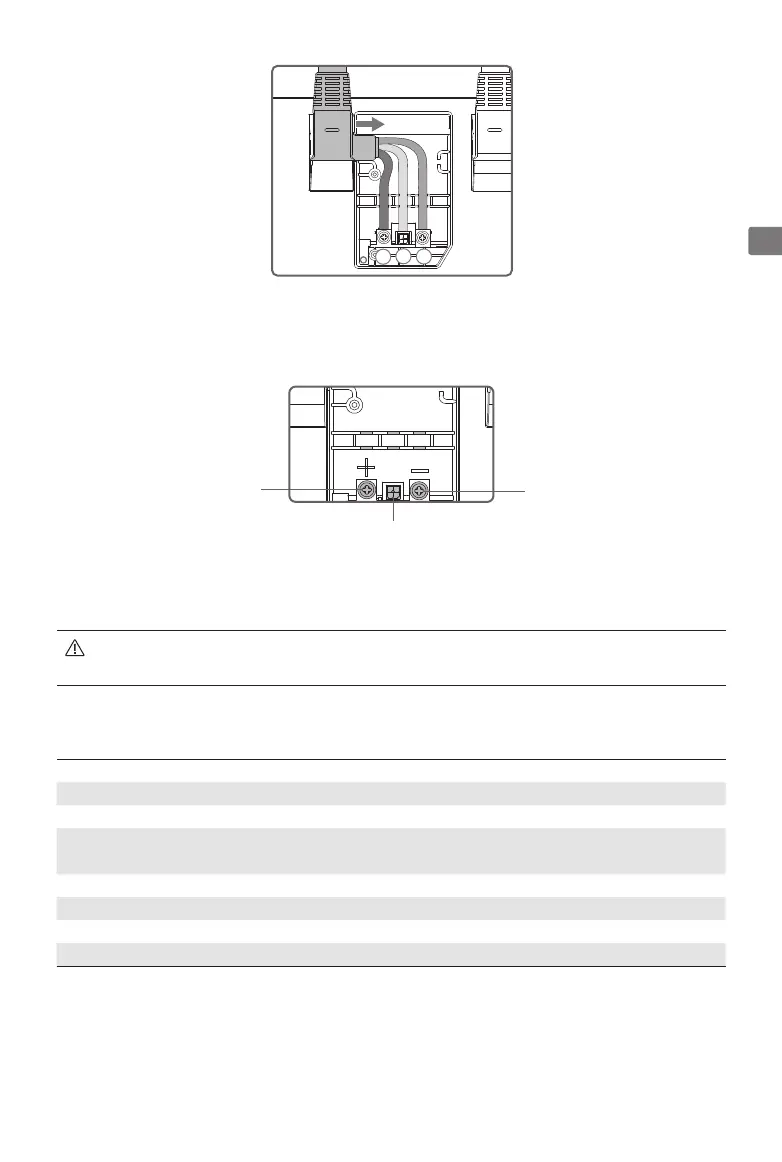

White cable
Red cable
Blue cable
3. Make sure the red cable is aligned with “+”, and the blue cable with “–”. Secure the blue and red
cables using the A and B screws and press the C cable to insert the white cable in the middle.
4. Clamp the new charging cable’s end to where the original cable was. Attach the panel and
secure it using the screws.
Make sure the new charging cable’s end is in the vertical position shown in Step 2.
Otherwise, it may not be possible to attach the panel.
Specications
Compatible Battery Models T16 Batteries, MG-12000P Batteries
Rated Input Voltage/Frequency 110-220 V/ 50-60 Hz
Charging Voltage T16: 58.8 V; MG-12000P: 50.4 V
Rated Current
T16: Quick charge 45 A; Slow charge 17.5 A;
MG-12000P: Quick charge 24 A; Slow charge 12 A
Rated Power 220 V: 2600 W; 110 V: 1200 W
Operation Temperature Range -23° F to 122° F (-5° C to 50° C)
Dimensions Approx. 314×303×220 mm
Weight Approx. 9.14 kg
