The structures of the two landing gear legs are different. The one with a compass cable
should be mounted to the right side of the aircraft (when looking from the rear).
1. Identify the landing gear leg containing the compass cable.
2. Take out the cable protector from the landing gear leg and open it. Looking from the rear,
connect the compass cable to the compass port on the right side of the aircraft body. Put the
assembled cable into the cable protector slot and close it. Be careful not to damage the cable.
3. Place the cable protector and cable into the mounting position on the center frame then mount
the right landing gear leg to the mounting position and tighten the M3×10 screws.
4. Mount the left landing gear leg and tighten the four M3×10 screws.
Compass Cable
(For the right landing gear leg only)
Hose Bracket
Installation
Threadlocker is required for installation. Apply threadlocker when mounting landing gear,
spray tank, sprinklers and radar module. Ensure threadlocker is totally dry and solid
before ight.
Ensure that all installation and connection procedures are completed before powering on
the aircraft.

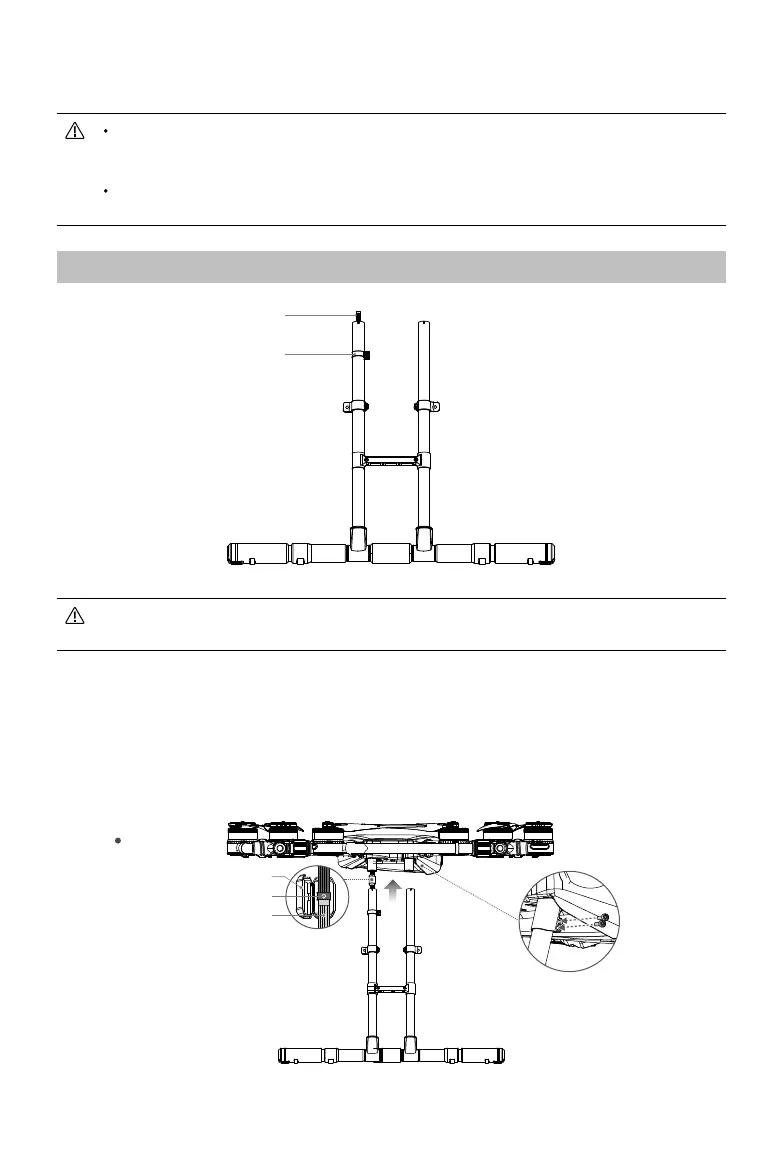

Mounting the Landing Gear
Aircraft’s Rear
Compass Port
Cable Protector
Compass Cable
