dji LiDAR Range Finder User Manual

5
EN
Introduction
DJI
TM
LiDAR Range Finder with LiDAR focus technology features a built-in camera
with an equivalent focal length of 30 mm. Autofocus for manual lenses is available
when used with DJI RS 3 Pro and the DJI RS Focus Motor. In addition, ActiveTrack
Pro and autofocus can be used simultaneously.

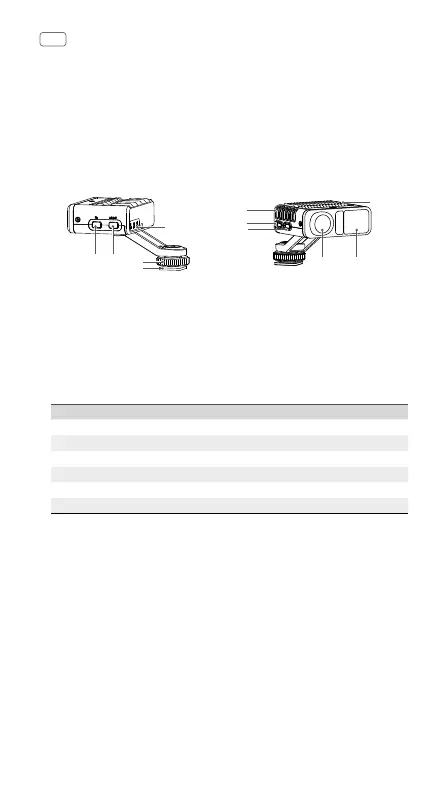

Overview
1 2
3
7
8
9 10
11
6
4
5
1. Function Button
Press once to switch lens prole. Press twice to initiate focus motor calibration.
Press and hold to enter sleep mode during usage. Press again to exit sleep mode.
2. AF/MF Button
Press once to switch between manual and auto focus.
3. Status Indicators
Indicates C1, C2, or C3 lens prole is in use when C1, C2, or C3 is on. Refer to
the table below for more information.
Blinking Pattern Descriptions
Solid green AF mode
Blinks green twice Lens not calibrated
Solid red MF mode
O Sleep mode
Blinks red twice Focus motor not calibrated
Blinks red Firmware updating
4. Lock Knob
Tighten the lock knob after attaching the LiDAR Range Finder to a camera.
5. 1/4"-20 Thread to Cold Shoe Adapter
Attach the LiDAR Range Finder to the hot shoe of a camera.
6. Heat Dissipation Slot
DO NOT obstruct the slot during use.
7. Firmware Update Port (USB-C)
Connect the LiDAR Range Finder to a computer when updating rmware.
8. Power and Communication Port (USB-C)
Connect the LiDAR Range Finder to the power and communication port of
DJI RS 3 Pro for power and data transfer.
9. Visible Light Camera
10. LiDAR Camera
