dji MAVIC 2 PRO Quick Start Guide

13. Upward Infrared Sensing System
14. Backward Vision System
15. Intelligent Flight Battery
16. Battery Level LEDs
17. Power Button
18. Battery Buckles
19. USB-C Port
20. Link Button/Linking Status Indicator
* The Vision Systems and Infrared Sensing Systems are affected by surrounding conditions. Read
the Disclaimer and Safety Guidelines and watch the tutorial in the DJI GO
TM
4 app or on the official
DJI website to learn more. http://www.dji.com/mavic-2
** Maximum flight time was tested in an environment with no wind while flying at a consistent
15.5 mph (25 kph). This value is for reference only.

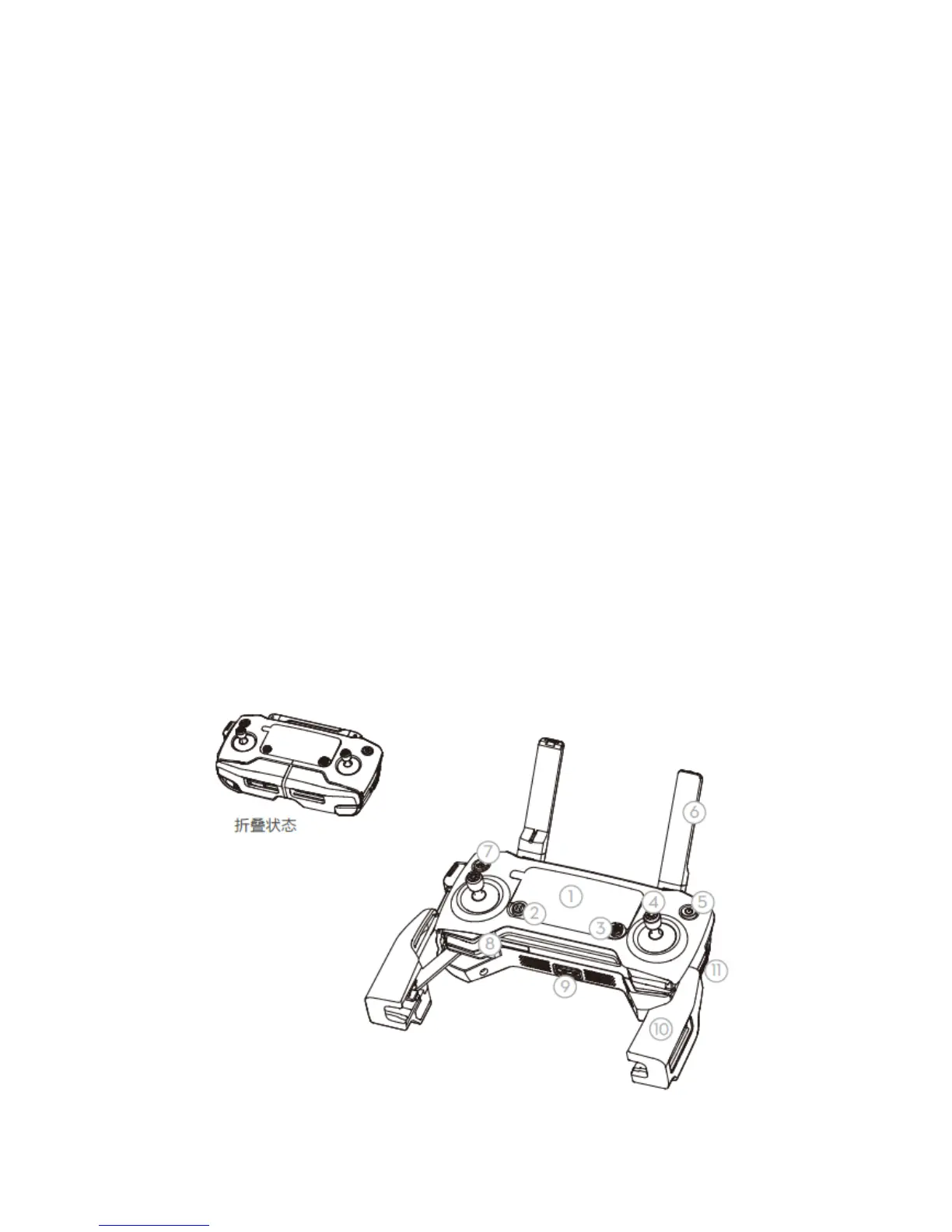

Remote Controller (RC1A)
Built into the remote controller is the DJI’s long-range transmission technology OCUSYNC
TM
2.0,
offering a maximum transmission range of 5 mi (8 km) and displaying video from the aircraft to the
DJI GO 4 app on your mobile device at up to 1080p. An on-board LCD screen gives real-time aircraft
data information and the detachable control sticks make the remote controller easier to store.
Maximum run time: 2 hours and 15 minutes*

dji MAVIC 2 PRO Specifications

General

Type	Quadcopter
Backlight	Yes
Product color	Gray
Construction type	Ready-to-fly (RTF)
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/1 \
Camera shutter speed	8 – 1/8000 s
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	77 °
Bitrate at maximum video resolution	100 Mbit/s
Operating temperature (T-T)	-10 - 40 °C
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Built-in processor	-
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Moving control functions	Backward, Downward, Forward, Turn left, Turn right, Upward
Cables included	Lightning, Micro-USB, USB Type-C

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	907 g
Battery weight	297 g
