N1 Video Encoder
User Manual
Supported Video Inputs
Source Video Formats
AV PAL, NTSC
HDMI
720p50, 720p60, 1080i50, 1080i60, 1080p25,
1080p30, 1080p50, 1080p60
Specificaitions
Dimensions 65.2 mm × 45 mm × 10.7 mm
Weight 31.4 g
Operating Temperature -10° to 40° C

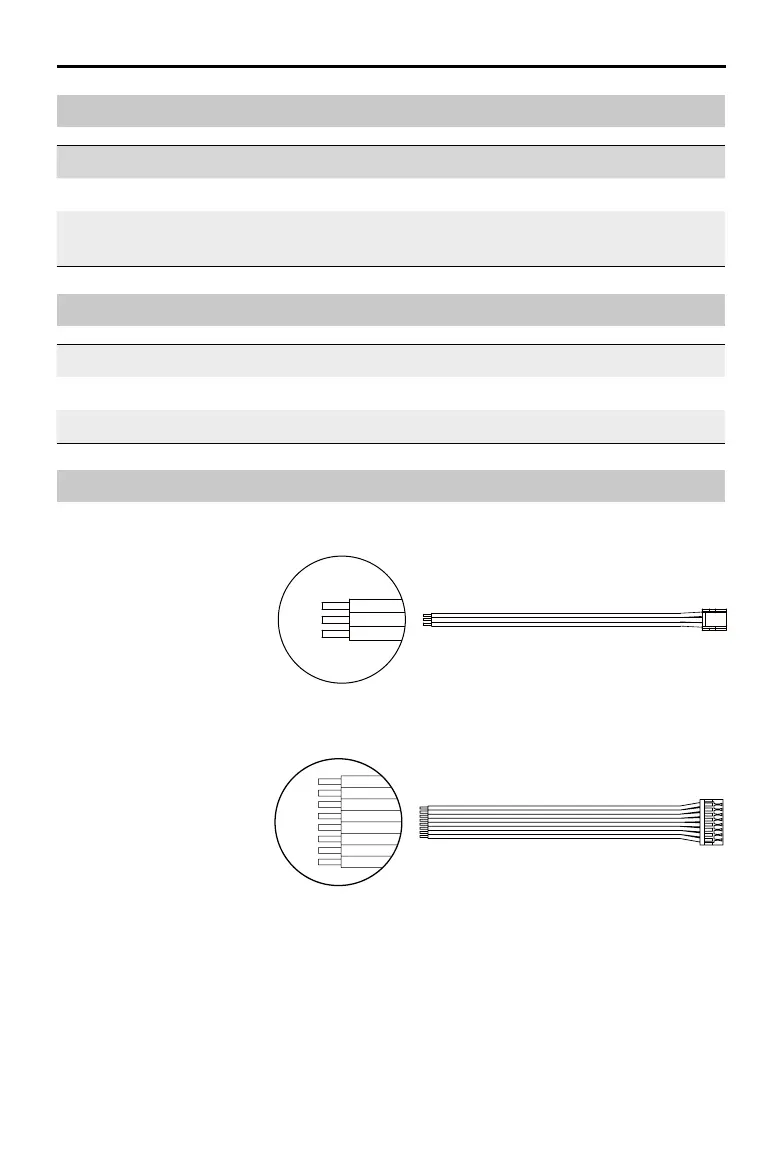

Pinout Diagrams
AV Port
[1] GND
[2] AV IN
[3] GND
1
2
3
[1] IO (RX)
[2] IO (TX)
[3] GND
[4] 12V
[5] 12V
[6] GND
[7] IO (TX)
[8] IO (RX)
1
2
3
4
5
6
7
8
