dji N3 Quick Start Guide

N3
Quick Start Guide
EN
4
©
2016 DJI. All Rights Reserved.
GNSS-Compass Module
1. Orientation Arrow
The GNSS-Compass module should be mounted with the
arrow pointing toward the aircraft nose.
2. GNSS-Compass Status Indicator
Indicates the status of the GNSS-Compass Module.
3. Extended CAN1 Port
Dedicated DJI CAN-Bus port. Communicates with a DJI
device.
PMU Module
1. iBAT
Communicates with DJI Intelligent Flight Battery.

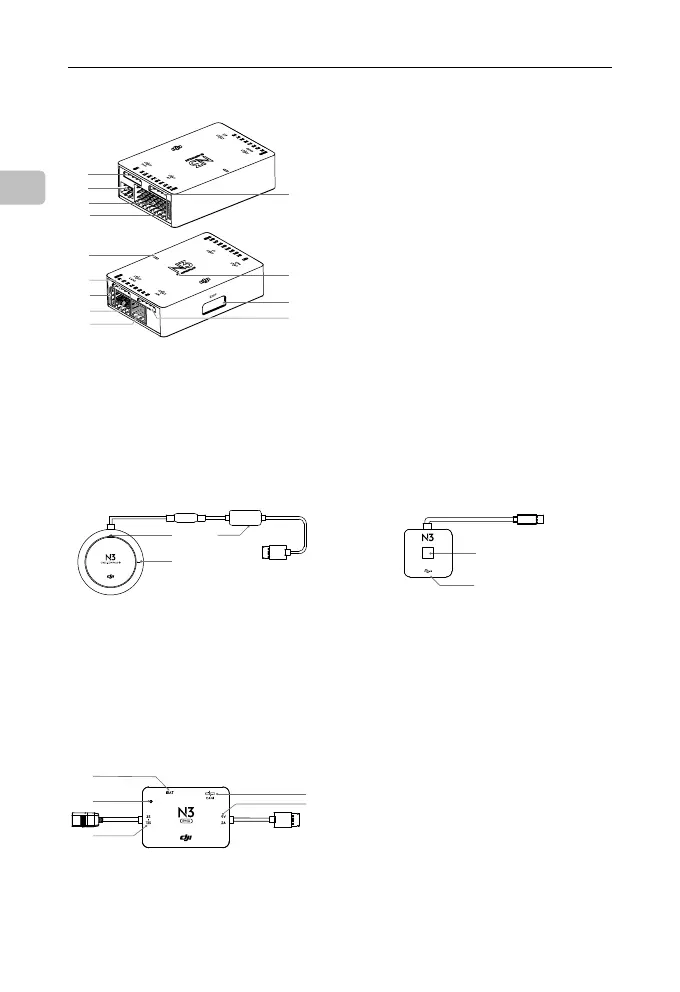

Parts
Flight Controller
1. PMU Port
Derives power from the PMU module.
2. LED Port
Communicates with the LED module.
3. M1-M8 Pins
Connects to the corresponding ESC PWM port for each
motor.
4. iESC Port
Communicates with the DJI Smart ESC using the Smart
ESC Communication Cable.
5. RF Port
Communicates with the DJI Lightbridge 2 Air System.
6. Status Indicator
Indicates the status of the ight controller.
7. CAN2 Port
CAN Bus port (Reserved port).
8. S-Bus Port
Communicates with a DJI DR16 or S-Bus receiver.
9. F1-F4 Pins
Multifunction PWM output ports.
10. F5-F8 Pins
Multifunction PWM I / O ports.
11. API Port
Communicates with an SDK device.
12. EXP Port
Extended port (Communicates with the A3 upgrade kit).
13. Orientation Arrow
The ight controller orientation arrow.
LED Module
1. Flight Status Indicator
Indicates the status of the ight control system.
2. Micro USB Port
Used to congure and upgrade the N3 via DJI Assistant 2.
1
2
5
3
4
1
2
LED
3
2
1
1
2
3
6
7
8
9
10
4
5
11
12
13
2. Power Status Indicator
Indicates the power status of the ight control system.
3. 3S-12S
Derives power from DJI Intelligent Flight Battery or other
LiPo battery.
4. Power Port (9V 2A)
Connected to the Flight Controller for power supply.
5. CAN1 Port
Connected to the GNSS-Compass module.

dji N3 Specifications

General

Product type	Control unit
Product color	Black
Brand compatibility	DJI

Weight and Dimensions

Weight	132 g
