dji OM 4 Quick Start Guide

2
EN

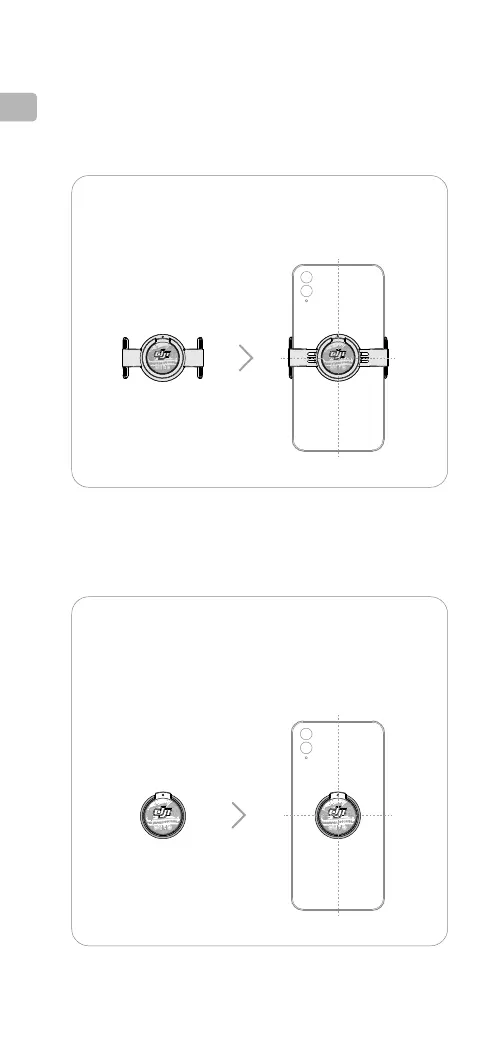

Attaching the Phone
Using the
Magnetic Phone Clamp
: attach the phone
clamp in the center of the phone.
1. The provided
Magnetic Phone Clamp
and
Magnetic
Ring Holder
can be used to mount a phone to DJI OM 4.
Using the
Magnetic Ring Holder
: attach the ring
holder in the center of the phone. Read the DJI OM
Magnetic Ring Holder User Guide carefully to make
sure you are using the ring holder properly.
OR

dji OM 4 Specifications

General

Stabilization	3-Axis
Battery Life	15 hours
Weight	390 g
Compatible Devices	Smartphones
Mounting	Magnetic phone clamp
App	DJI Mimo
Compatible Phone Weight	230 ± 60 g
Compatible Phone Thickness	6.9 - 10 mm
Compatible Phone Width	67 - 84 mm
Battery Capacity	2450 mAh
Battery Energy	17.64 Wh
Battery Voltage	7.2 V
Charging Time	2.5 hours
Gimbal Charging Port	USB-C
External Device Charging Port	USB-A
Universal Mount	1/4"-20 UNC port
Wireless	Bluetooth 5.0
Gimbal Controllable Range	Pan: -161.2° to 171.95°, Roll: -136.7° to 198°, Tilt: -106.54° to 235.5°
Max Controllable Speed	120°/s
Max Payload	290 g
Dimensions Folded	163 × 99.5 × 46.5 mm
Battery Type	Li-ion
Dimensions Unfolded	276 × 119.6 × 103.6 mm (L×W×H)
