Model Woofer Mid Tweeter Nom. Max Sensi- Magnet Inst. Mounting Crossover

power power tivity size depth hole bass

IR 6.2 16,5 cm / 6,5” 28 mm / 1,1” 100 W 160 W 91 dB 85 mm / 3,35” 65 mm / 2,56” 140 mm / 5,51” Separate box

IR 8.2 20 cm / 8” 28 mm / 1,1” 100 W 160 W 91 dB 85 mm / 3,35” 70 mm / 2,76” 180 mm / 7,09” Separate box

IR 6.3 16,5 cm / 6,5” IR 3” 28 mm / 1,1” 100 W 160 W 91 dB 85 mm / 3,35” 65 mm / 2,56” 140 mm / 5,51” Separate box

IR8.3 20 cm / 8” IR 3” 28 mm / 1,1” 100 W 160 W 91 dB 85 mm / 3,35” 70 mm / 2,76” 180 mm / 7,09” Separate box

IR 3 3” 100 W 160 W 91 dB 80 mm/3,15” 35 mm/1,38” 95 mm/ 3,74”

SPEAKER FACTS FOR DLS ULTIMATE Iridium SERIES

RUNNING-IN PERIOD

Allow the speakers to play for at

least 15-20 hours. After this time the

performance is correct.

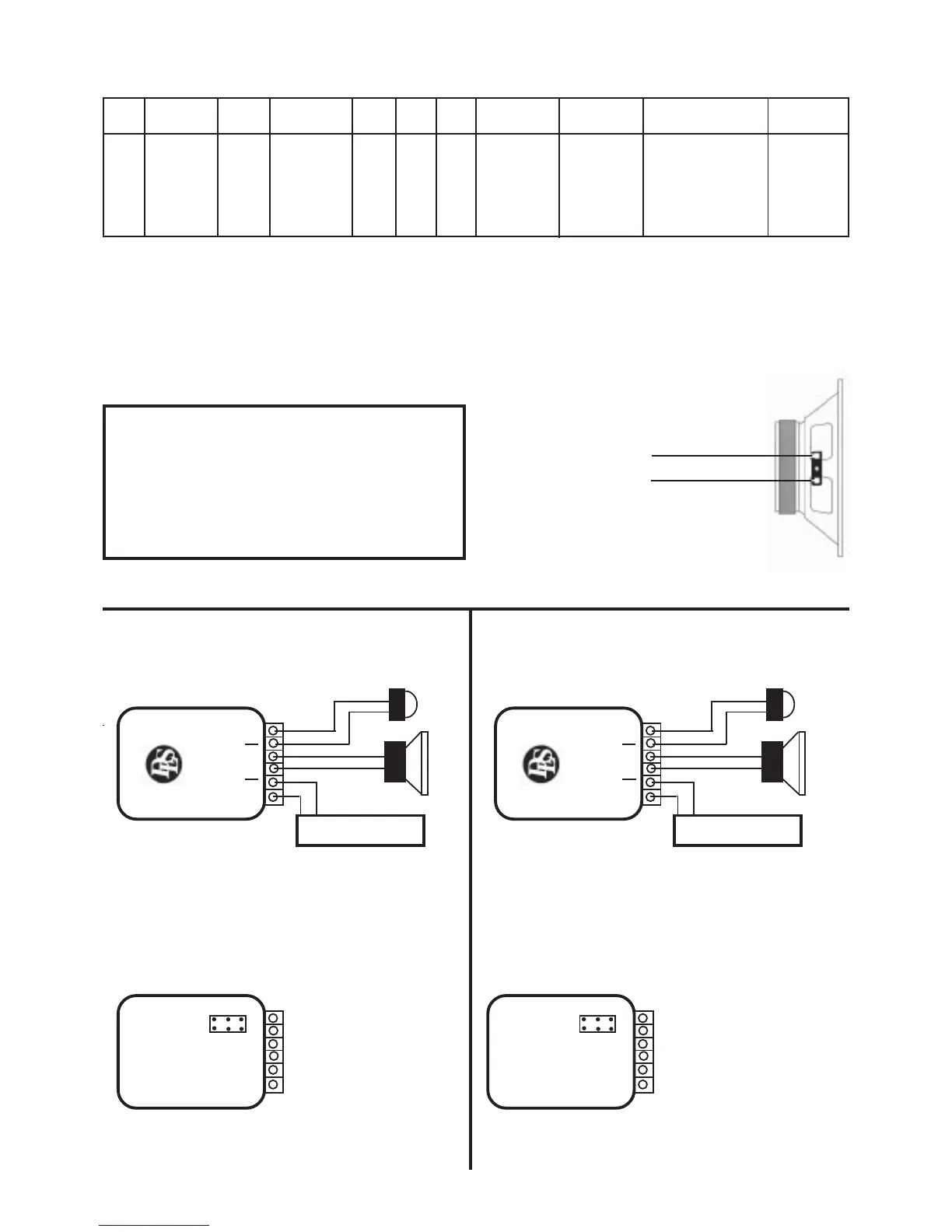

Filter installation and connection of Iridium 6.2

FILTER/CROSSOVER INSTALLATIONS

CONNECTION OF SPEAKERS

Make sure you connect the cables

with correct polarity to the speakers.

Observe the markings on the

terminal. The small terminal is

minus.

SPEAKER PHASING

To be sure to have the correct speaker polarity (phase) you can

check this by using a 1,5 Volt battery.

Connect a cable from the battery plus-pole to the speaker plus,

and a cable from the battery minus to the speaker minus.

If the speakers are correctly connected the speaker cone should

move outwards on both right and left channel.

This check must be made on the cables going from the speakers,

to the output terminals of your car stereo or amplifier.

Head unit / amp.

2-way crossover

INPUT WOOFER TWEETER

+ - + - + -

Bass/mid

Tweeter

THE JUMPERS INSIDE THE FILTER:

TWEETER LEVEL JUMPER

Select between three different tweeter levels by moving the small

jumper J1 inside the filter box.

High level Mid level Low level

level

Mid

Low

Filter installation and connection of Iridium 8.2
