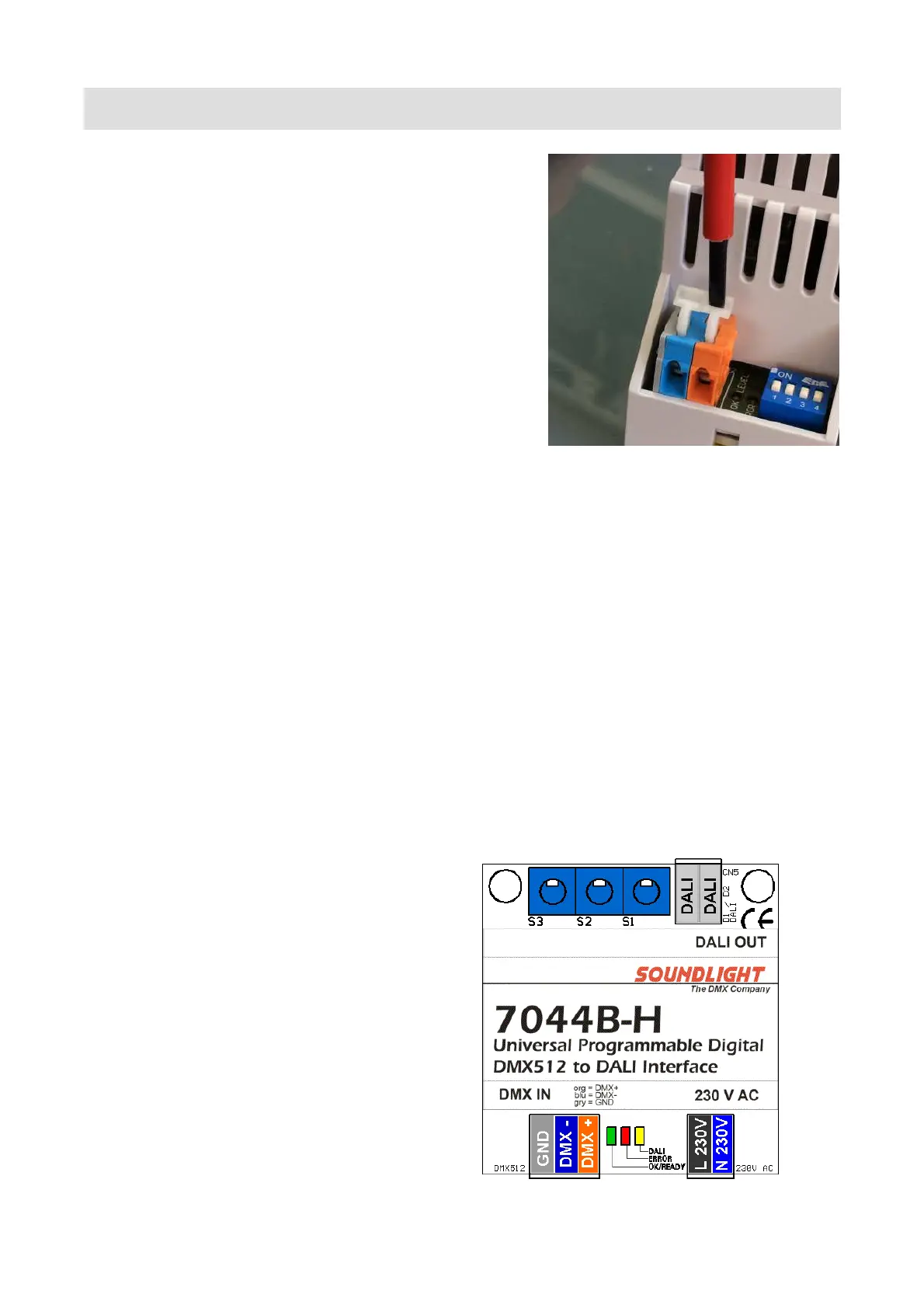

CONNECTORS
Our decoders use easy-to.-use screwlles cage clamp conn-
nectors. Please use a standard flat blade screw driver to
open the clamps (a standard phase tester will be just fine) -
never use a phillipps-, pozidrive aor torx tool since this may
damage the levers.
To open, gentlöy press, insert wire and release. You’re do-
ne!. Cage clamp connectors accept both, stranded and so-
lid wires. We recommend to use ferrules with stranded wi-
res whenever poosible.
The decoder 7044B-H consits of connectors for these inputs and outputs:
CN6 POWER SUPPLY 230V AC 50 Hz
1 black: L 230V AC
2 blue: N 0V AC
CN5 DALI Data bus
1 grey DALI OUT
2 grey DALI OUT
CN4 DMX Data input
1 (grey) GND, Screen connects to XLR Pin 1
2 (blue) Control signal - connects to XLR Pin 2
3 (orange) Control signal + connects to XLR Pin 3
CN5: DALI OUT
CN4: DMX IN
CN6: 230V AC
