DNS AS-410M User Manual

Chapter 4 - Operational Procedures -
AS-410M Auto Slide Preparation System 167
4-18-7 Slide Transfer

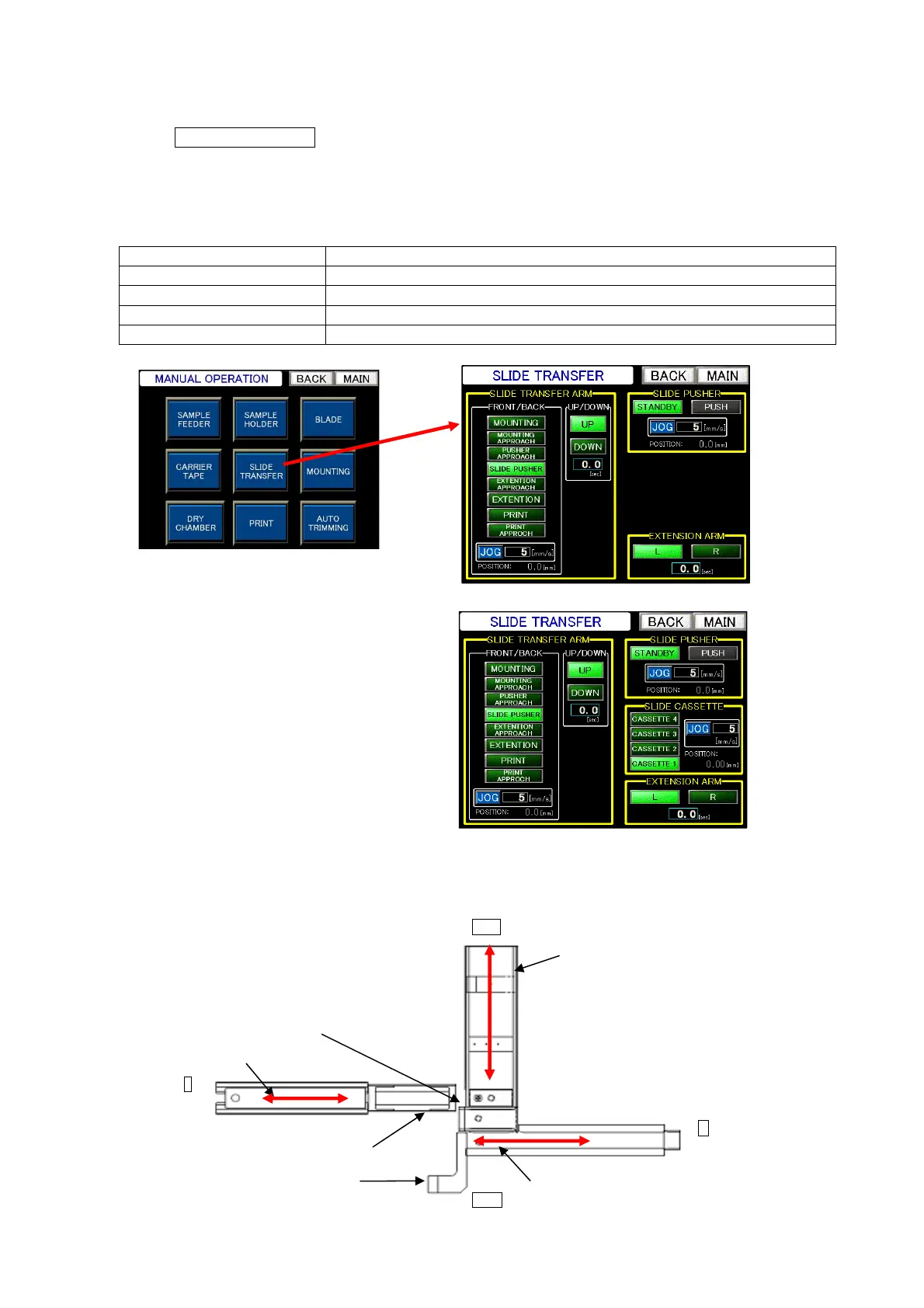

Touch SLIDE TRANSFER on the “Manual operation” screen to open the “Slide transfer” screen. In
this mode, the following operations are available: Slide Transfer Arm FWD/BWD; Slide Feed Pusher
LEFT/RIGHT; Stretching Arm LEFT/RIGHT; and slide cassette FWD/BWD.
Operations available in this mode
Component Operation
Slide Transfer Arm FWD/BWD
Slide Feed Pusher LEFT/RIGHT
Stretching Arm LEFT/RIGHT
Slide Cassettes FWD/BWD
Slide feed pusher
Slide transfer screen
Slide
t
r
ansfer screen
(System with Sample identification function + 400-slide feeding unit)
Manual operation screen
Operating Principle of
Slide transfer unit
Slide cassette
L
R
Back
Front
Stretching arm
Slide transfer arm
Stretching heater unit
Slide transfer lane
