594
Practical hints
Fuses
5
Preliminary fuse box in the battery re-
cess in the driver’s footwell F59

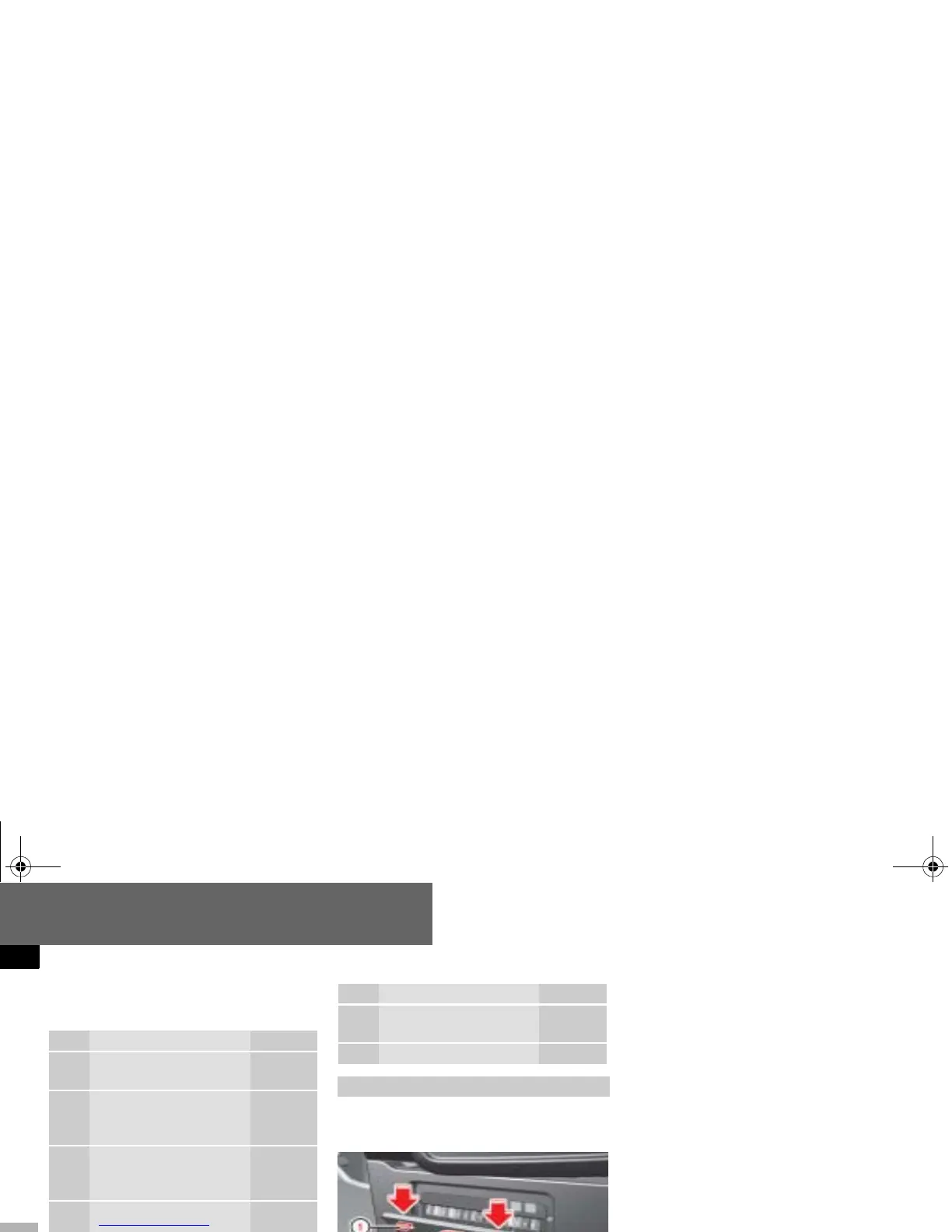

The fuse box is located in the base of the
driver’s seat on the outboard side.
1 Latching springs
To open: adjust the seat to its high-
est position (
page 69).
Press both latching springs 1 down
and remove the cover.
To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
No. Consumer Amp.
1 Pre-glow relay/second-
ary air pump
80/40 A
2 Engine fan (air-condi-
tioning system) –
cab chassis/crewcab
60/40 A
3 Signal acquisition and
actuation module SAM/
fuse and relay block SRB
80 A
4 Auxiliary battery* in the
engine compartment/
retarder*
150 A
5 Terminal 30 fuse boxes,
signal acquisition and
actuation module SAM/
fuse and relay block SRB
150 A
6 Connecting point in driv-
er’s seat base
Bridge
7 Heater booster (PTC) 150 A
Fuse box in the driver’s seat
No. Consumer Amp.
N54.15-2149-31
