Underhood Fuses

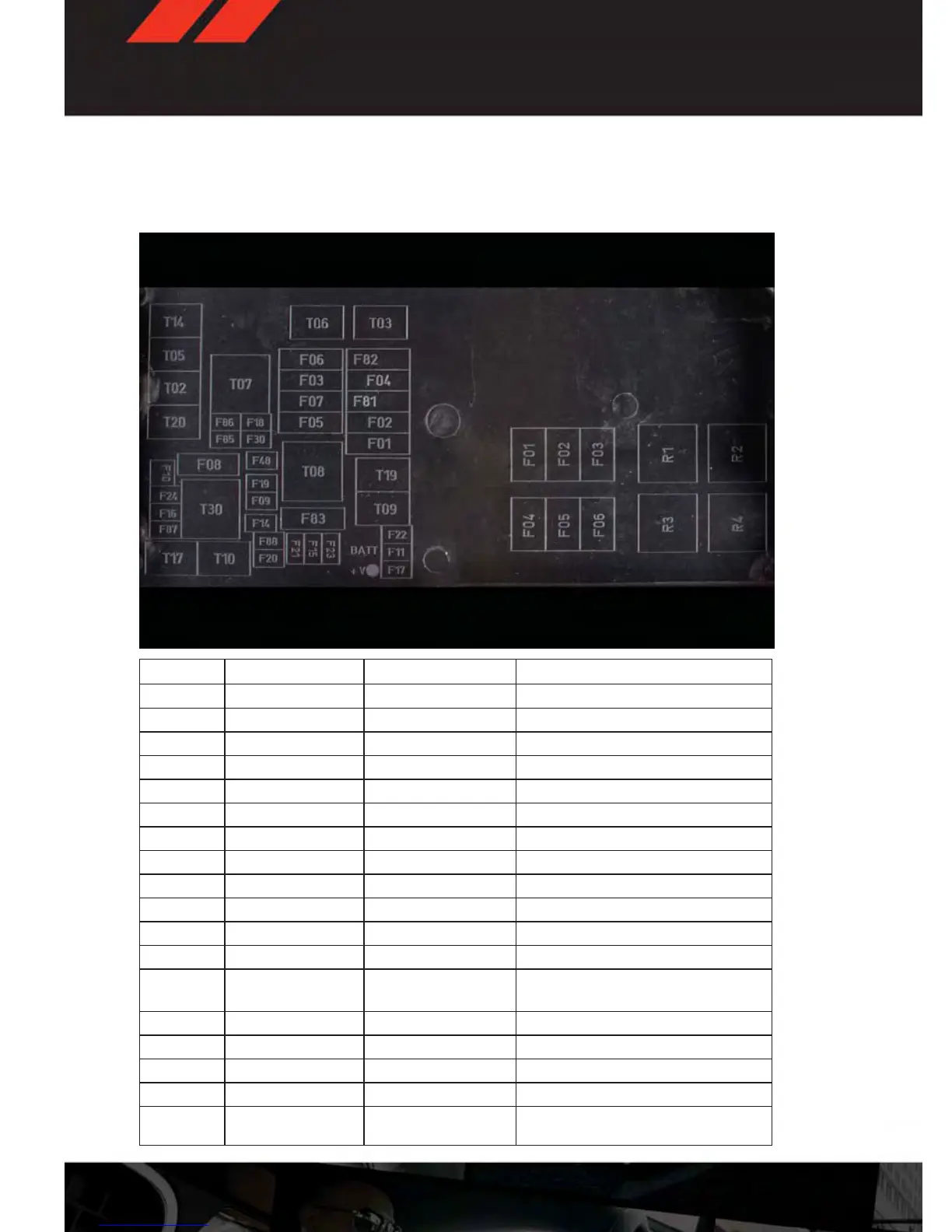

• The Power Distribution Center is located on the right side of the engine compartment,
behind the battery.
Cavity Maxi Fuse Mini Fuse Description
F01 70 Amp Tan — Body Control Module #1
F02 60 Amp Blue — Body Control Module #2
F03 30 Amp Green — Output For Starter Relay #1
F04 40 Amp Orange — ESC Pump Motor
F05 40 Amp Orange — Transmission Control Module #1
F06 30 Amp Green — Body Control Module #3
F07 40 Amp Orange — EBL RLY Coil, Blower Motor RLY Coil
F09 — 5 Amp Tan Radiator Fan
F10 — 10 Amp Red ORC
F11 — 20 Amp Yellow Run/Start, Engine Control Module
F14 — 15 Amp Blue Transmission Control Module #2
F15 — 15 Amp Blue Transmission Control Module #3
F16 — 15 Amp Blue Engine Control Module,
Ignition Coils
F17 — 15 Amp Blue Brake System Module
F18 — 20 Amp Yellow Engine Control Module
F19 — 10 Amp Red A/C Compressor Clutch
F20 — 30 Amp Green Rear Defroster (EBL)
F21 — 20 Amp Yellow Fuel Pump
MAINTAINING YOUR VEHICLE
118
