Connect the auxiliary port jumper into the unused con-
nector taped to the wiring bundle. Connect the other end
of the auxiliary port jumper to the electronic device.
NOTE: The red wire in the bundle is the power wire and
will provide the positive 12 volts to the electronic device.
Re-install the mirror cover and be sure to not pinch the
wires that go into the electronic device.

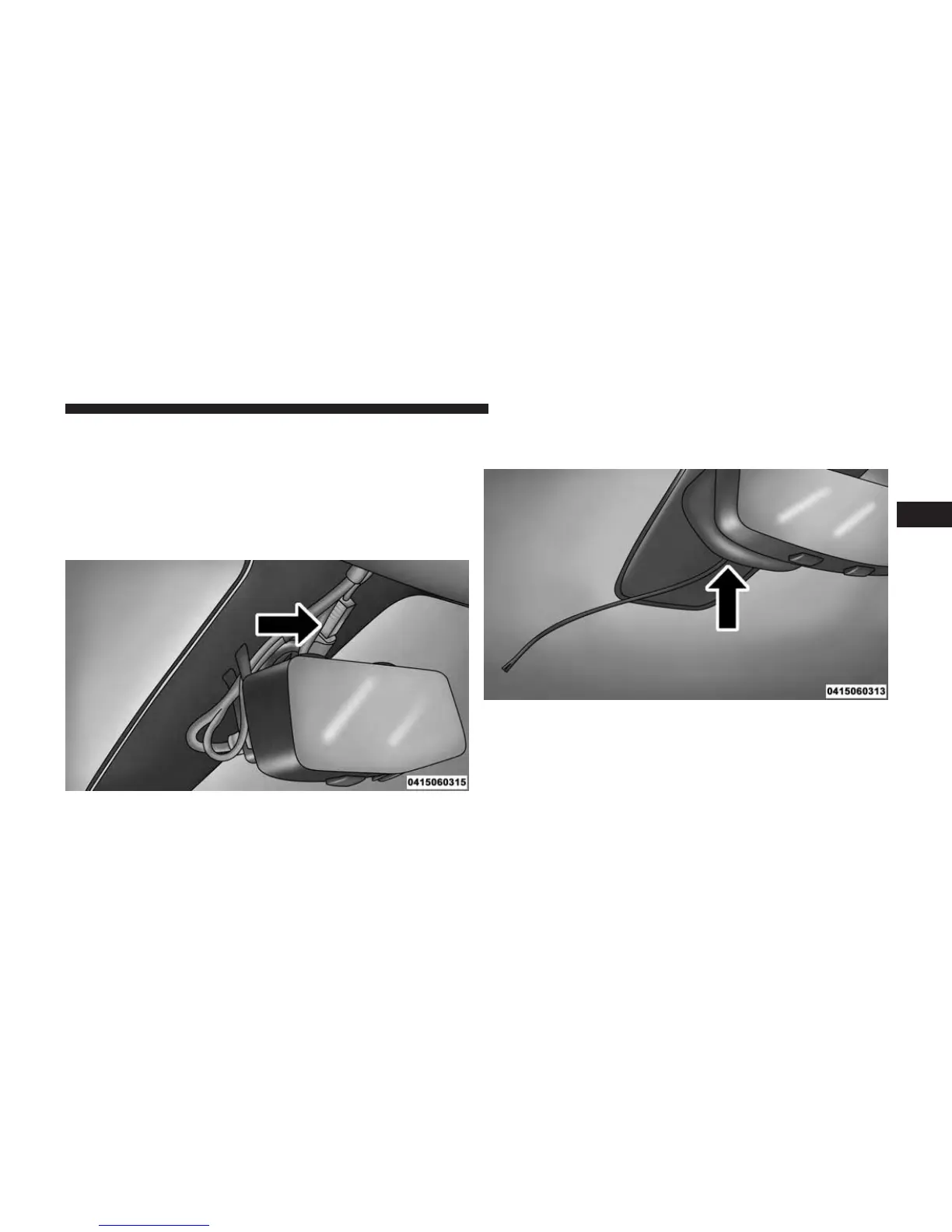

Auxiliary Port Jumper
Mirror Cover Installation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
