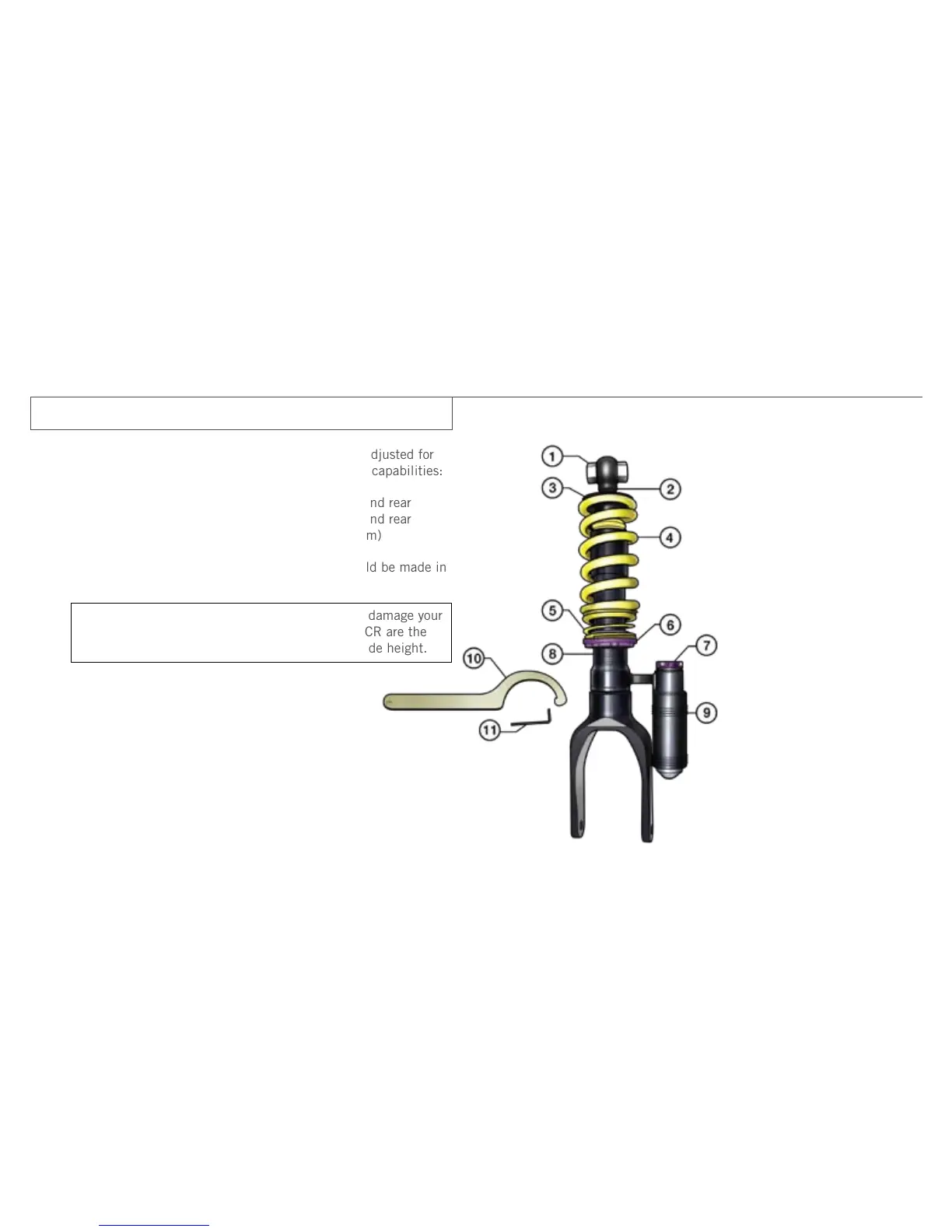

Components
1. Spherical Bearing Mount
2. Rebound Adjuster
3. Upper Spring Seat
4. Primary Spring
5. Helper Spring
6. Lower Spring Seat
7. Compression Adjuster
8. Threaded Main Body
9. Reservoir
10. Spanner Wrench
11. Spring Seat Hex Wrench
YourViperACRisdeliveredwiththesuspensionadjustedfor
optimal street comfort. Below are the adjustment capabilities:
 •CompressionDamping: 14 settings front and rear
 •ReboundDamping: 19 settings front and rear
 •RideHeight: +/- 1 ¼ in. (32 mm)
Any adjustments to the suspension settings should be made in
small increments.
CAUTION: The use of improper tools may severely damage your
suspension. The tools included with your Viper ACR are the
only tools that should be used for adjusting the ride height.
5.1 Damper Components
