Switchable Automatic Locking Retractor
(ALR)
The seat belts in the passenger seating posi-
tions are equipped with a Switchable Automatic
Locking Retractor (ALR) which is used to secure
a child restraint system. For additional informa-
tion, refer to “Installing Child Restraints Using
The Vehicle Seat Belt” under the “Child Re-
straints” section of this manual. The figure below
illustrates the locking feature for each seating
position.
If the passenger seating position is equipped
with an ALR and is being used for normal usage,
only pull the seat belt webbing out far enough to
comfortably wrap around the occupant’s mid-
section so as to not activate the ALR. If the ALR
is activated, you will hear a clicking sound as the
seat belt retracts. Allow the webbing to retract
completely in this case and then carefully pull
out only the amount of webbing necessary to
comfortably wrap around the occupant’s mid-
section. Slide the latch plate into the buckle until
you hear a "click.”
In Automatic Locking Mode, the shoulder belt is
automatically pre-locked. The seat belt will still
retract to remove any slack in the shoulder belt.
Use the Automatic Locking Mode anytime a
child restraint is installed in a seating position
that has a seat belt with this feature. Children
12 years old and under should always be prop-
erly restrained in a vehicle with a rear seat.
WARNING!
• NEVER use a rearward facing child re-
straint on a seat protected by an ACTIVE
AIRBAG in front of it, DEATH or SERIOUS
INJURY to the CHILD can occur.
• Only use a rear-facing child restraint in a
vehicle with a rear seat.
• A deploying passenger front air bag can
cause death or serious injury to a child
12 years or younger, including a child in a
rear-facing child restraint.

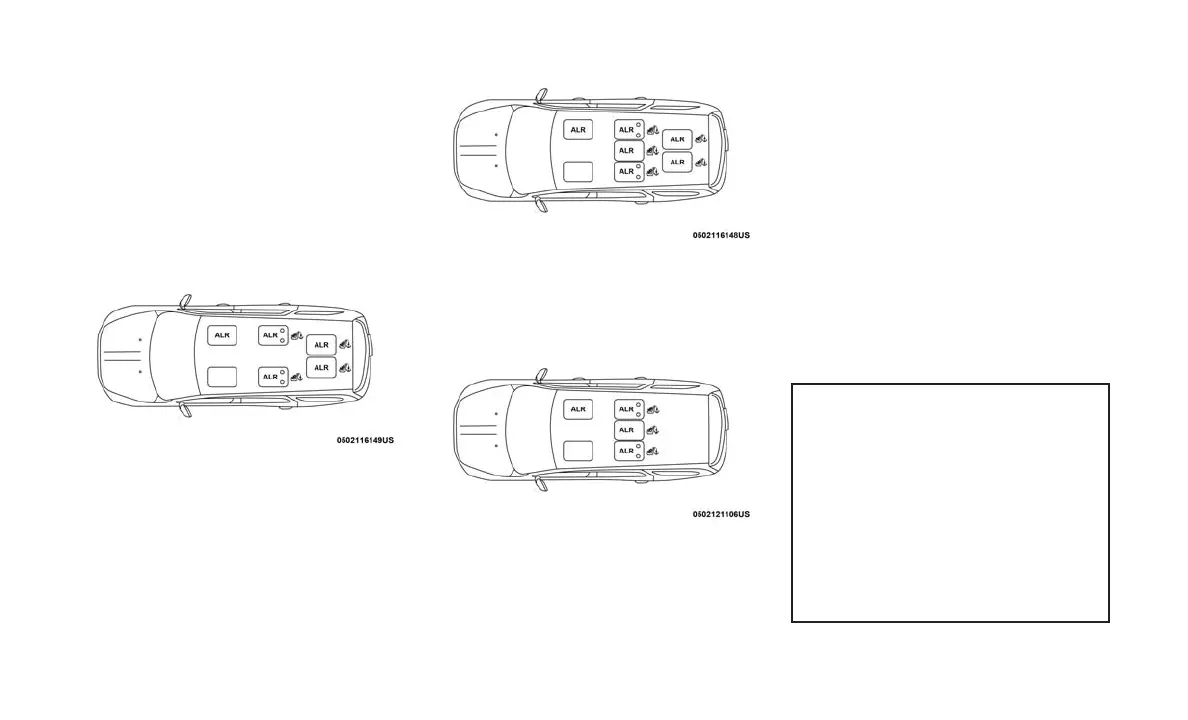

Captain’s Chairs Second Row (6 Passenger)
Automatic Locking Retractor (ALR) Locations
• ALR = Switchable Automatic Locking Retrac-
tor
60/40 Second Row (7 Passenger) Automatic
Locking Retractor (ALR) Locations
• ALR = Switchable Automatic Locking Retrac-
tor
60/40 Second Row (5 Passenger) Automatic
Locking Retractor (ALR) Locations
• ALR = Switchable Automatic Locking Retrac-
tor
