Deploying The Crossbars
1. Starting with one crossbar, completely
loosen the thumb screws at both ends of the
crossbar.
NOTE:
The thumb screws cannot be fully removed.
2. Remove the crossbar from the stowed posi-
tion by sliding the crossbar towards the cen-
ter of the roof. Repeat with crossbar on the
opposite side.
CAUTION!
Use care when removing and handling the
crossbars to prevent damage to the vehicle.
3. Starting with one crossbar, bend down the
pivot supports at each end.
4. Position the crossbars across the roof mak-
ing sure the letters on the crossbars align
with the matching letters on the side rail.
5. Slide the cross bar into to the deploy position
by moving it towards the matching letter in
the side rail. Be sure the crossbar is fully
deployed with the crossbar pushed as far
into the slot as possible. Once the crossbar is
in place, tighten both thumb screws com-
pletely.

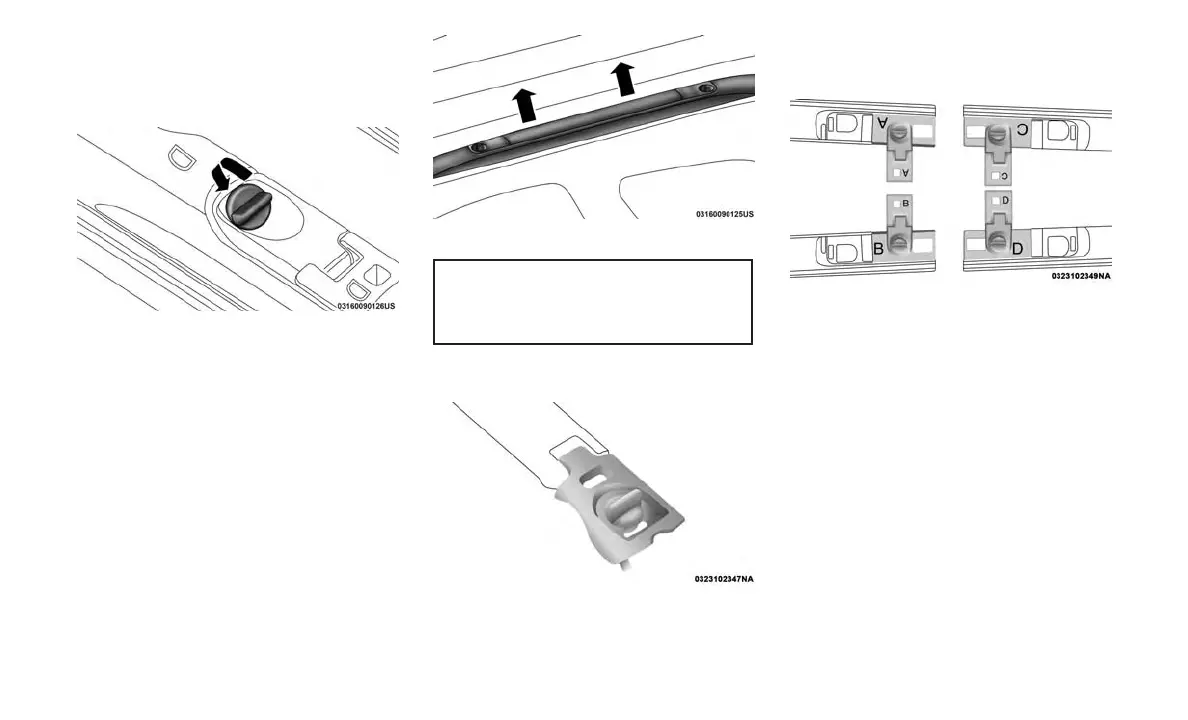

Thumb Screw
Removing Crossbars
Bending Pivot
Positioning Crossbars
