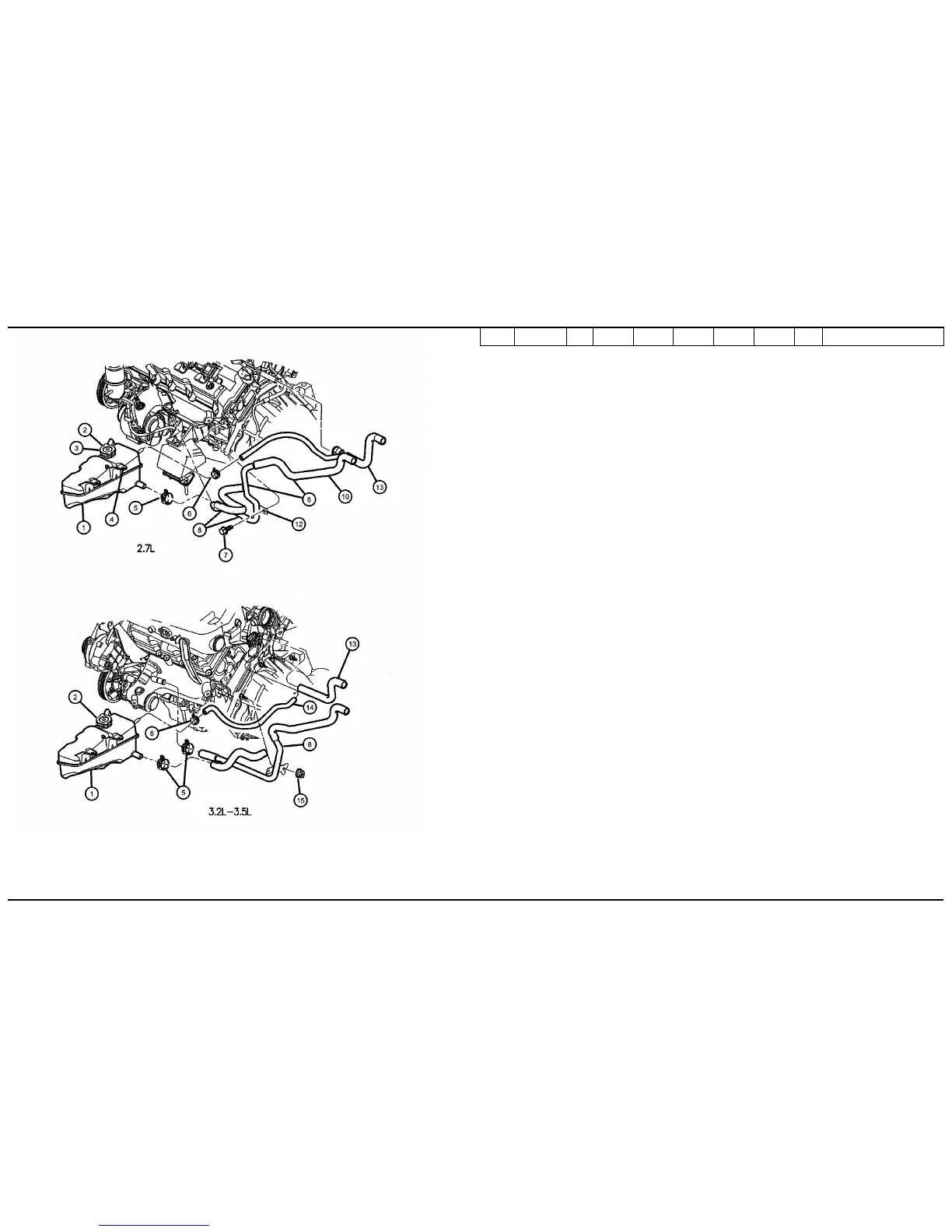

Coolant Recovery System Heater Plumbing
Figure 7 - 310
ITEM
P ART
NUMBER
QTY
LINE
SERIES BODY ENGINE TRANS
TRIM
DESCRIPTION
Coolant Recovery System Heater Plumbing C OOLANT R ECOVER Y S YSTEM H EA TER P LUMBING
NOTE:Sales Codes:
[EER] = 2.7L V6 DOHC 24 V AL VE MPI
[EES] = 2.7L V6 24V W/ACTIVE INT AKE
[EGC] = ‘MAGNUM‘ 3.5L V6 SOHC 24V
[EGG] = 3.5L HIGH OUTPUT V6 24V MPI
[EGW] = 3.2L V6 SOHC 24 V AL VE MPI
1
04758269AC
1
BOTTLE, Pressurized Coolant
2 04596444AA 1
CAP , Pressurized Coolant, Export
3 04596198 1
CAP , Radiator
4 06034716 2
SCREW AND W ASHER, Hex
Flange Head, .25 -14x.875, Bottle
Mounting
5
06502018 1
EG0 CLAMP , Hose, M28.9 x 1.60
6 04592126 1 EE0
CLAMP , Hose
7
06100574 1 EE0
BOL T AND CONED W ASHER,
Hex Head, M8x20x17
8
TUBE, Heater Return, w/Hose
04767150AC
1
EG0
04767152AC
1 EE0
-9 04792308 1 EER
CLIP , Heater Hose
10 HHR00034AA 1
HOSE 1FT , Heater , 3/4", Return
(Roll Stock)
-1 1 06505692AA 1
EG0 O RING
12
04596266AC
1 EE0
BRACKET , Heater T ube T o Block
13
HOSE, Heater Supply
04767170AB 1
EG0
04767172AI 1 EE0
14 04767172AI 1
HOSE, Bottle Supply , Serviced
with TUBE ASSY - POSTIVE
CRANKCASE VENTILA TION
HEA TED - 4792645AB, (NOT
SER VICED)
15 06101467 1 EER NUT , Hex Flange, M8x1.25
CONCORDE,INTREPID,VISION,300M,NEW YORKER,LHS (LH)
SERIES
LINE
BODY ENGINE TRANSMISSION
P = Limited
S = 300M
H = SE
M = LXI
X = 300M Special
C = Concorde
E = 300M
H = Chrysler Intrepid
D = Dodge Intrepid
41 = 4 Door Sedan EER = Engine - 2.7L V6 DOHC
24 V alve MPI
EGC = Engine - "Magnum"
3.5L V6 SOHC 24V
EGG = Engine - 3.5L High
Output V6 24V MPI
EGJ = Engine - 3.5L V6 SOHC
24 V alve
EGK = Engine - 3.5L High
Output V6 24V MPI
DGX = T ransmission - 4 -Speed
Automatic
DG0 = All Automatic T ransmissions
AR = use ase required - = Non illustrrated part
