knobs on the control unit and a comfort temperature
setting by using the temperature up and down but-
tons.
•
The system provides set-and-forget operation for op-
timum comfort and convenience.
•
The system can be controlled manually, if desired.
•
SYNC feature links the temperature controls, the pas-
senger side temperature becomes the same as the
temperature selected by the driver.
The ATC system automatically maintains the interior
comfort level desired by the driver and all passengers.

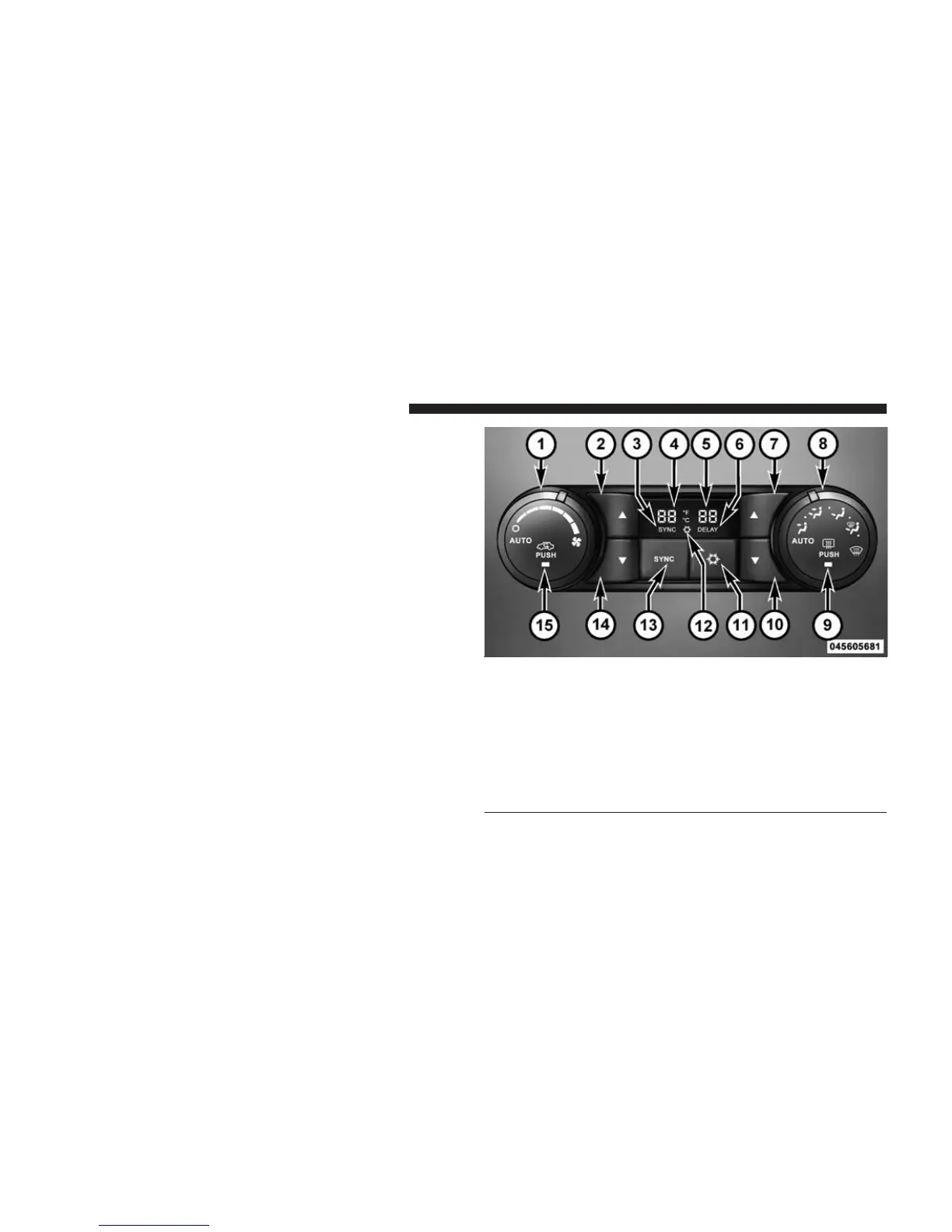

Automatic Temperature Control (ATC) Panel
1 - Blower Control 9 - DEFROST
2 - Left Temperature Up 10 - Right Temperature Down
3 - SYNC Indicator 11 - A/C
4 - Left Temperature Indicator 12 - A/C Indicator
5 - Right Temperature
Indicator
13 - SYNC Temperature Button
6 - DELAY Indicator 14 - Left Temperature Down
7 - Right Temperature Up 15 - RECIRCULATE
8 - MODE
280 UNDERSTANDING YOUR INSTRUMENT PANEL
