Dodge Industrial, Inc.
6040 Ponders Court
Greenville, SC 29615
Ph: 1.864.297.4800
© Dodge Industrial, Inc.
MN1635 (Replaces 499365)
All Rights Reserved. Printed in USA.
11/21
*1635-1121*
Reference Description
Qty
Required
Part Numbers
TXT505A TXT5C TDT6, TXT6A TDT7, TXT7A TDT8, TXT8A TDT9, TXT9A
Cooling Fan Assembly ① 1 255231 272369 272325 272326 272327 272328
1 ② Fan Blade 1 255232 272415 272334 272335 272335 272336
2 ② Fan Shroud 1 255233 272422 272344 272346 272346 272347
3 ② Mounting Strap
③
255234 245636 272353 272354 272355 272356
4 ② Set Screw 2 400026 400026 400026 400086 400086 400094
5 ② Cap Screw
③
411394 411394 411409 411409 411409 411407
6 ② Lockwasher
③
419009 419009 419011 419011 419011 419011
7 ② Hex Nut 1 407083 407083 407087 407087 407087 407087
8 Safety Screen 1 - - 242750 242751 242751 242753
9 ② Bracket
④
255235 255235 - - - -
10 ② Bracket Screw
④
411022 411022 - - - -
11 ② Lock Washer
④
419077 419077 - - - -
12 ② Fan Key 1 443112 443112 - - - -
13 ② Shaft Key 1 443094 443094 - - - -
Reference Description
Qty
Required
Part Numbers
TDT10, TXT10A TDT12, TXT12 TDT13 TDT14 TDT15 T19
Cooling Fan Assembly 1 272329 272330 272331 272332 272333 272324
1 ② Fan Blade 1 272337 272337 272338 272338 272339 272335
2 ② Fan Shroud 1 272347 272347 272348 272348 272348 272346
3 ② Mounting Strap
③
272356 272357 272361 272358 272359 272360
4 ② Set Screw 2 400090 400090 400154 400154 400146 400086
5 ② Cap Screw
③
411407 411407 411407 411407 411407 411409
6 ② Lockwasher
③
419011 419011 419011 419011 419011 419011
7 ② Hex Nut 1 407087 407087 407087 407087 407087 407087
8 Safety Screen 1 242753 424753 242756 242756 242756 242753
9 ② Bracket
④
- - - - - -
10 ② Bracket Screw
④
- - - - - -
11 ② Lock Washer
④
- - - - - -
12 ② Fan Key 1 - - - - - -
13 ② Shaft Key 1 - - - - - -
① Assembly includes parts listed immediately below.
② Included in assemblies under which they are listed.
③ 2 required on size TXT505A; 3 rquired on sizes TXT5B, TDT6 & 7; 4 required on sizes TDT8 – 15 & T19.
④ 2 required on size TXT505A; 3 rquired on size TXT5B.
8
1
6
7
3
4
2
5

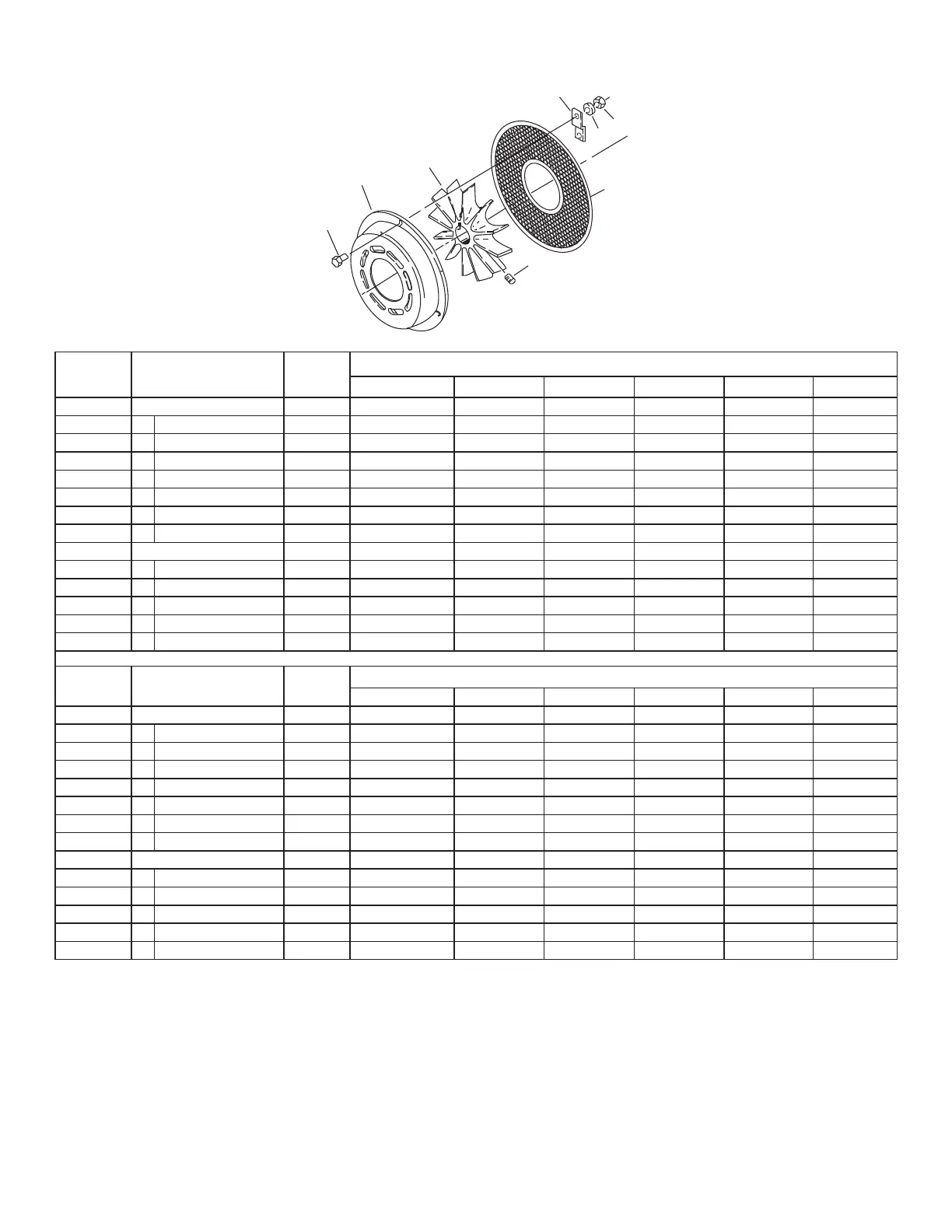

Replacement Parts for Cooling Fan
