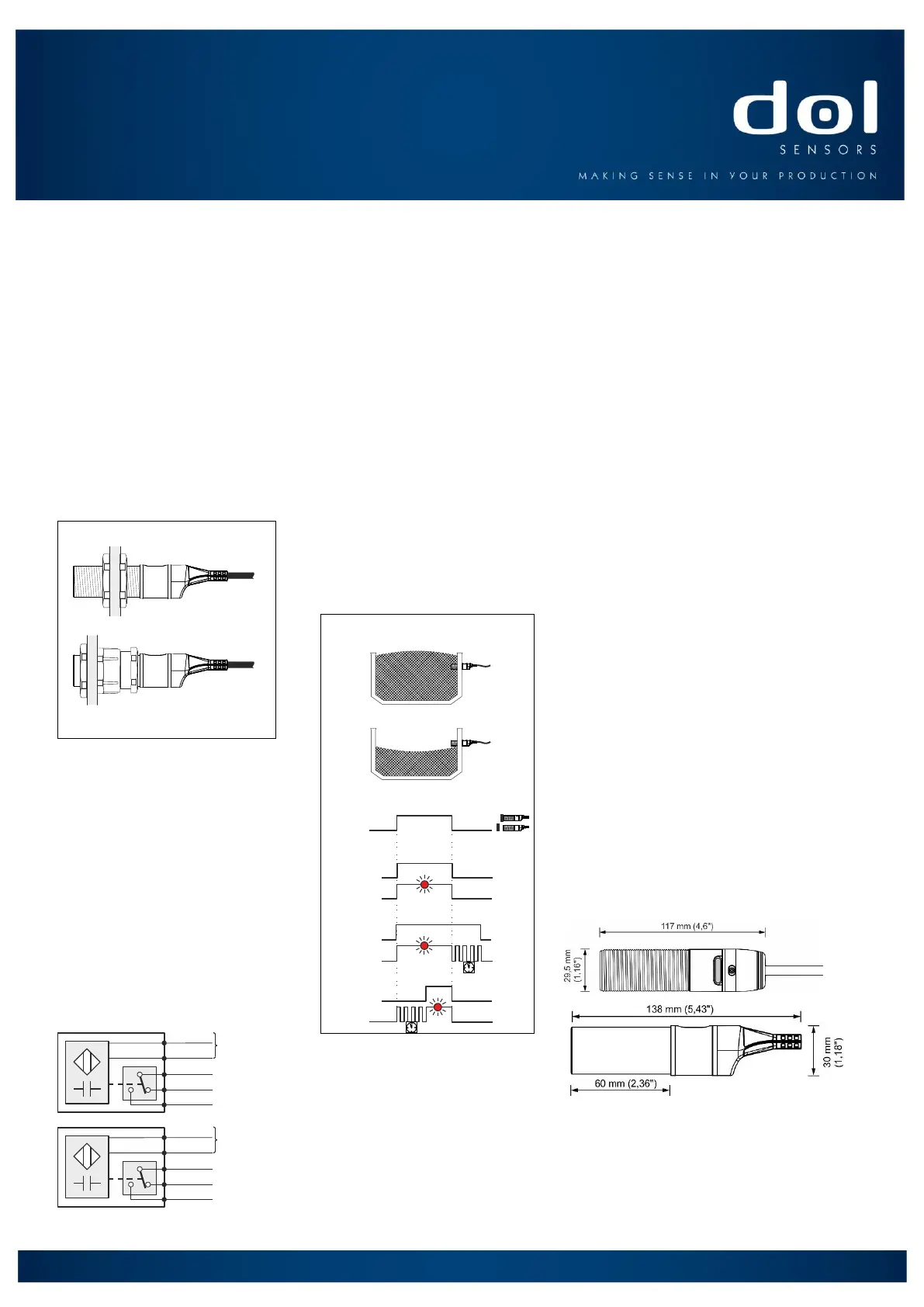

TECHNICAL USER GUIDE
PRODUCT DESCRIPTION:
DOL 44R is a capacitive relay sensor for
detection of feed, grain and solids. The
sensors have relay output including switch
function.
Fields of application:
• Level control in silos and containers
• Controlling the filling and emptying
process.
MOUNTING GUIDE (FIG. 1):
DOL 44R includes M30 thread. Mount it in a
ø30 mm hole and tighten using the locknuts
included.
DOL 44R is made in a ø30 mm smooth
design mounted in a PG36/M40 gland.
Figure1
DOL 44R-G
DOL 44R
INSTALLATION GUIDE (FIG. 2):
Supply voltage is connected to the blue and
brown wire.
The load is connected in series with the
relay contact of the sensor.
STOP by activating the sensor: Use the
black wires 1 and 3.
START by activating the sensor: Use the
black wires 1 and 4.
NOTE! The internal relay is in position NC
when the supply voltage is connected and
the sensor is activated - wire 1 and 4 are
connected.
Figure 2: No-current sensor
USER’S GUIDE (FIG. 3):
Depending on its type, DOL 44R has
two trimmers with different
functionalities.
Delayed disconnection:
• Fixed time or
• Time adjustable on trimmer
Delayed connection:
• Fixed time or
• Time adjustable on trimmer
Sensitivity:
• Fixed distance or
• Distance adjustable on trimmer
Max RunTimer:
• Settings on the trimmer: Off, Period 1,
Period 2
The actual functionality of the sensor is
indicated on the product label.
DOL 44R has a red LED, indicating
sensor status.
Fig. 3 shows examples of LED
sequences.
Figure 3
DOL 44RH has a built-in, controlled heat
function which prevents frost and
condensation on the sensor. This
ensures optimum detection in very cold
and damp environments.
The heat function is only possible for the
90-265 V AC voltage version.
TECHNICAL DATA:
Supply voltage:
Voltage version:
90 - 265 VAC
47 - 63 Hz
Voltage version:
10 - 30V AC/DC
47 - 63 Hz
Voltage version:
20 - 280V AC/DC
47 - 63 Hz
Relay:
Max. resistive load, 250VAC:
5 A
Max. lagging load, 250VAC:
2 A
Min. relay current, 12 VDC
100 mA
Temperature:
Temp. operation:
- 20 °C - + 70 °C
- 4 °F - + 158 °F
Temp. operation, USA
and Canada:
- 20 °C - + 65 °C
- 4 °F - + 149 °F
Temp. operation,
storage:
- 30 °C - + 80 °C
- 22 °F - + 176 °F
Temp. operation and
storage with heat
function:
- 40 °C - + 70 °C
- 40 °F - + 158 °F
Degree of protection:
IP:
69k
NEMA:
1, 3, 4, 6, 12, 13
Cable:
Lenght:
2 m
6.6 feet
Conductor dimensions:
Style:
5 x 0.5 mm
2
5 x AWG20
UL2517
Dimensions:
Approvals:
CE
UL
C-UL
Blue
Brown
Black 1
Black 4
Black 3
10-30V
AC/DC
COM
NC
NO
Blue
Brown
Black 1
Black 4
Black 3
90-
265VAC
COM
NC
NO
NC(1-4)
NO(1-3)
NC(1-4)
NO(1-3)
NC(1-4)
NO(1-3)
Sensor
Ingen
tidsforsinkelse
Forsinket
frakobling
Forsinket
tilkobling
LED
LED
LED
Relay NC(1-4)
Relay NO(1-3) after delay
LED- sequence
No time
delay
Delayed dis-
connection
Delayed
connection
