APPENDIX A
DA20 CIRCUIT BOARD LOCATIONS
673
611A686675674
671
671
670
Caution:
Remove power before removing or inserting circuit boards.

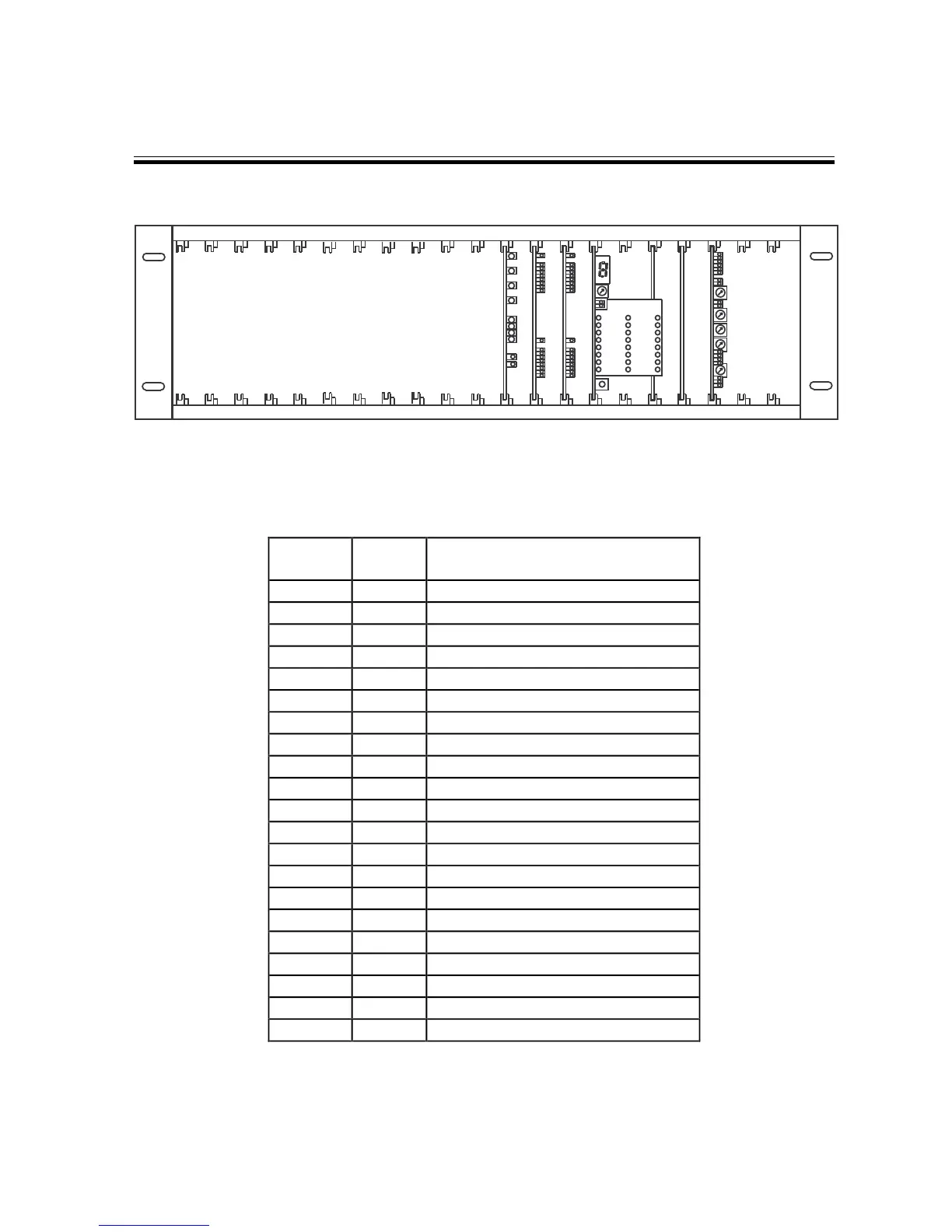

(Left to right, facing front of DA20):
Slot
Number
Cat.
No.
Description
1 Empty
2 reserved
3 reserved
4 reserved
5 reserved
6 reserved
7 reserved
8 reserved
9 reserved
10 reserved
11 reserved
12 670 Video Front End board
13 671 Dual DSP board
14 671 Dual DSP board
15 673 System Services board
16 674 LED board (mounted on 675)
17 675 AC-3 decoder DSP board
18 686 Hex DAC board
19 611A CP Interface board
20 Empty
21 Empty
In the Cat. 700 Digital Soundhead:
Cat. No.634 CCD (Charge Coupled Device) board
