Cladding material must not weigh more than 6 kg per m
2
.
Cladding material must not be more than 12 mm thick. We
recommend that the cladding is afxed using construction
adhesive.
WARNING: It is important that cladding is tted rmly and
correctly. When afxing cladding, the ladder must NOT be
loaded.

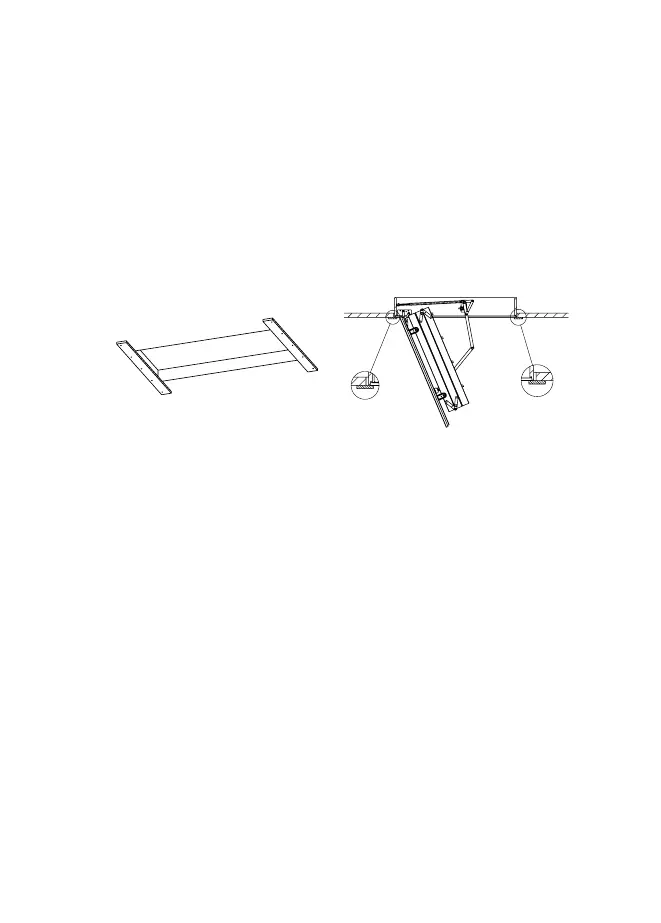

Figure 5
5. Attaching the loft ladder:
One fitter goes up into the attic room, taking all the tools he
needs. The other fitter remains below. c
lickFIX
®
models can
be installed by one person (using a work platform).
Lift the ladder up into the attic. Before lowering the loft lad-
der into the opening from above, attach 2 supporting planks
under the ceiling opening. The attic ladder rests on these
supports (see gure 5). Fold the ladder so that the frame can
be attached to the ceiling opening. Make sure that the attic
ladder is level and perpendicular. Attach the attic ladder with
