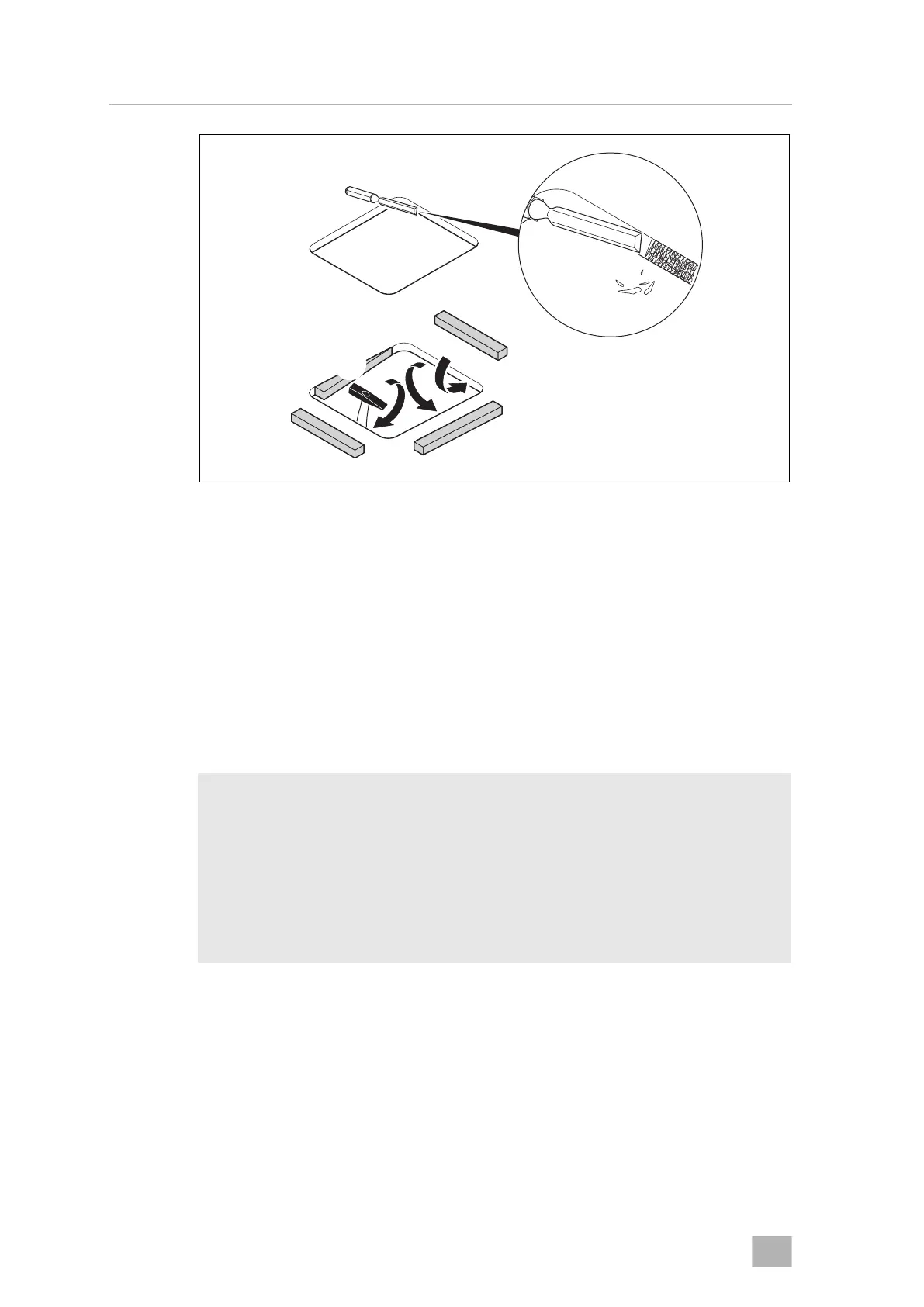

See fig. 7
➤ Before installation, check whether the roof hole needs reinforcing.
➤ If needed, remove the foam according to the width of your reinforcing rails
(not in scope of delivery) (A).
➤ Fit the reinforcing rails (B).
➤ If needed, fit a suitable H-frame to provide reinforcement to the roof.
8.3 Installing in an existing opening
I
NOTE
•
Existing roof hatch openings in accordance with fig. 8 are suitable for
installing the roof air conditioner.
•
Dispose of all waste material, glue, silicone and seals separately. Observe
the disposal guidelines.
•
The manufacturer only assumes liability for parts included in the scope of
delivery. The validity of the warranty expires if the device is installed
together with third-party parts.
B
2.
1.
