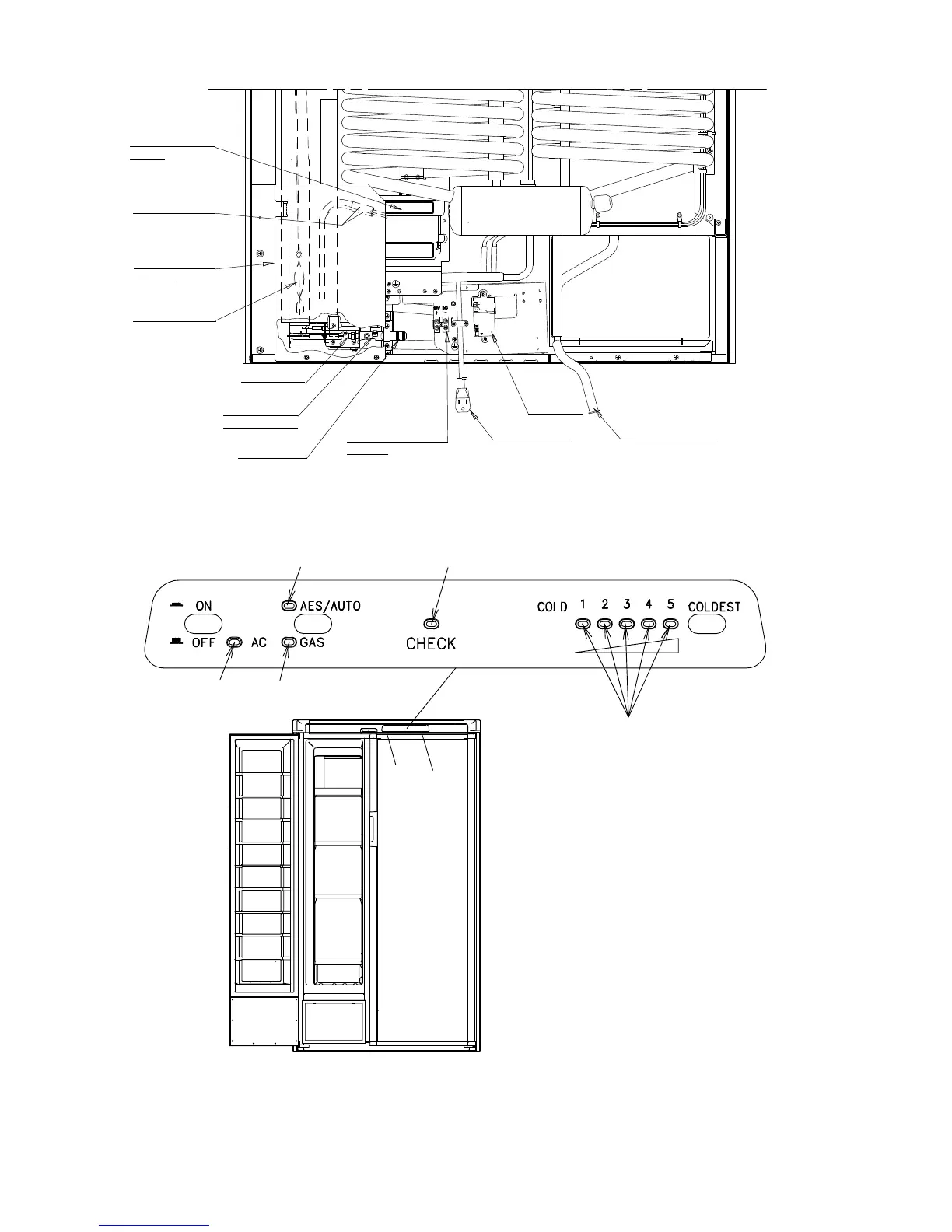

Dometic RM 1272 - Component and Control Identification; 2-WAY Display Panel and Controls

Burner jet
2 - WAY display panel.
FIG. 2
F
A
B
C
D
E
12 3
G
LEGEND 2-WAY AES Model
1. Main Power Button ON/OFF
2. AES/AUTO/GAS Mode Selector Button
3. Temperature Selector Button
A. AC Mode Indicator Lamp
B. AES/AUTO Mode Indicator Lamp
C. GAS Mode Indicator Lamp
D. CHECK Indicator Lamp
E. Temperature Indicator Lamps
F. Climate Control Switch
G. Low Ambient Switch
FIG. 1
Heaters
Power module
cover
Flexible cord
12 Volt Terminal
block
Flue baffle
Manual gas
shutoff valve
Drain water hose
Protection
cover
Reigniter
Inlet fitting
3
