- 12 -

2 CHECK RECESS DEPTH.

See “INSTALLATION PREPARATION > RE-

CESS DEPTH”. A box bafe is required above

the lower access vent.

3 INSTALL LOWER SIDE VENT.

See “APPENDIX D”.

4 INSTALL UPPER SIDE VENT.

See “APPENDIX D”.

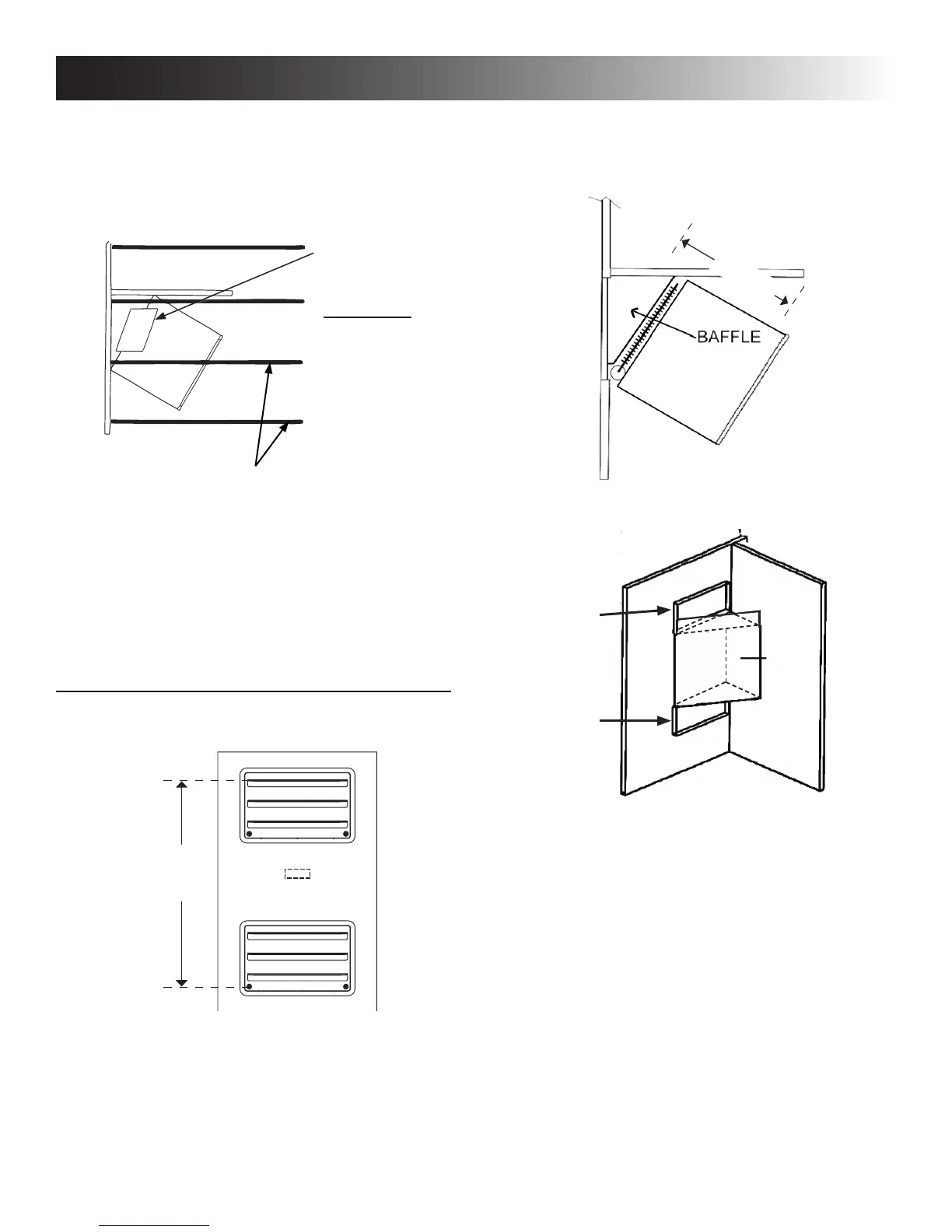

VENT APPLICATION TYPES

Roof vent opening

must be a mini-

mum of 110 in

unobstructed free

area.

Rafters

3 INSTALL LOWER SIDE VENT.

See “APPENDIX D”.

4 INSTALL ROOF VENT

See “APPENDIX D”.

OPTION 2 - INSTALL UPPER AND LOWER SIDE

VENTS

Step Action

1 CHECK VENTILATION HEIGHT.

See “APPENDIX B”.

RECESS

DEPTH

Fan*

Minimum

Ventilation

Height

* Fan position may vary by model.

BAFFLE

UPPER SIDE

VENT

LOWER

SIDE VENT
