The second standby mode of operation will execute when a failure of the temperature sensing device or
associated electronic circuitry occurs. If this should occur, the control system will operate on the energy
source selected via the control panel. The cooling unit will run continuously on the selected energy source.
The refrigerator will continue to operate in this mode indefinitely or until a new sensor is installed and the
system is reset.
1
2 3
4 5
1
2
3
4
5
F
G
ELITE REFRIGERATOR OPERATION (3-WAY)
MODELS INCLUDE: RM4873

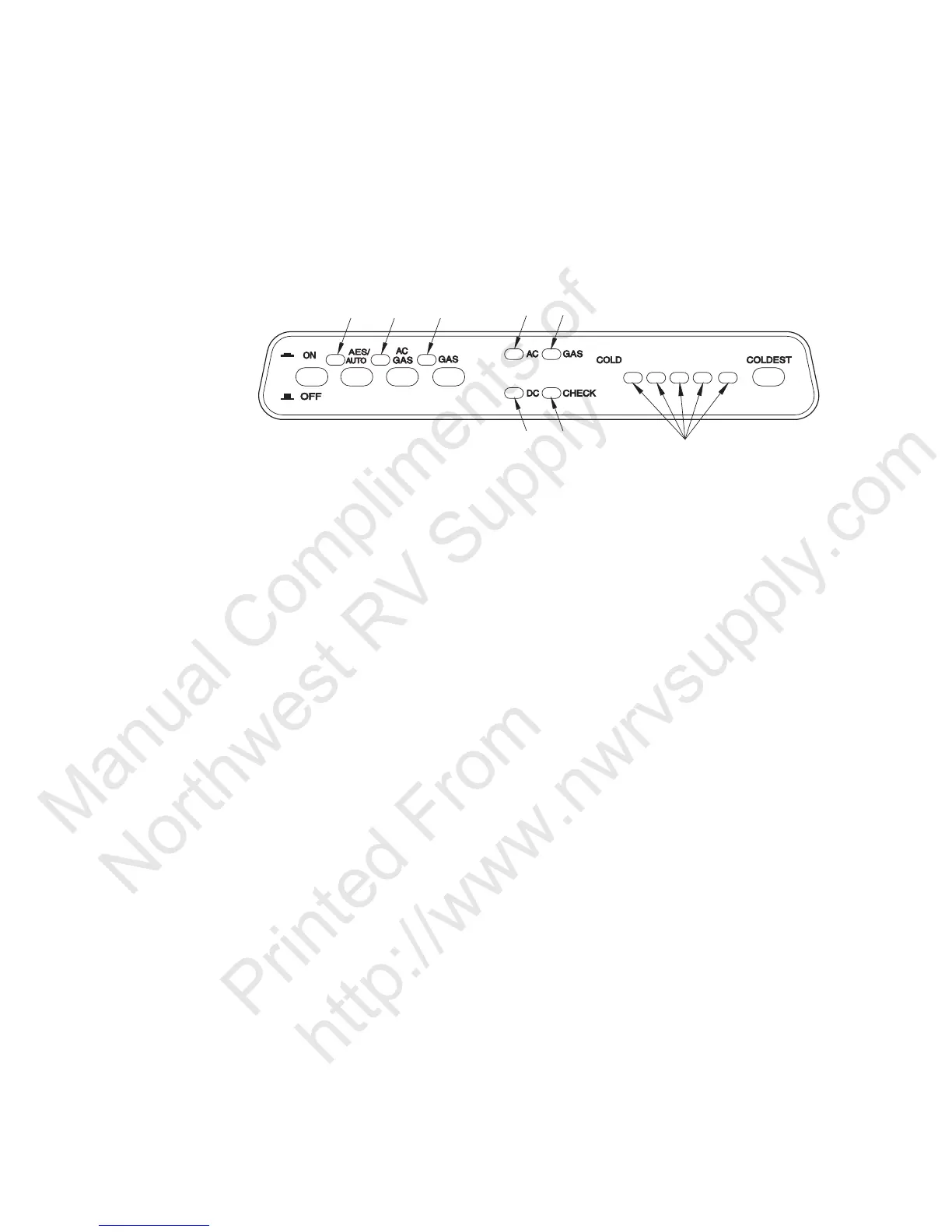

3-WAY PANEL
DISPLAY
AES/AUTO MODE
The AES/AUTO mode of operation takes priority over all other operating modes. If more than one mode
selector button (2), (3) or (4) is in the down position, the priority is from left to right.
When operating in this mode, the AES/AUTO mode indicator lamp (A) will illuminate. In this mode the
control system will automatically select the energy source with AC having top priority, DC second priority
and GAS third priority. If the control system has selected a particular energy source such as AC, and then
it becomes unavailable, it will automatically seek out the next available energy source.
Press the AES/AUTO mode selector button (2) to the DOWN position. Indicator lamp (A) should illuminate.
Indicator lamp (D), (E) or (F) should also illuminate indicating which energy source the control has
selected.
Press the TEMPERATURE SELECTOR button (5) until the lamp at the desired position is illuminated.
AC/GAS MODE
Press the AC/GAS mode selector button (3) to the DOWN (ON) position. Mode indicator lamp (B) should
illuminate.
In this mode of operation the control system will automatically select between the AC and GAS energy
sources with AC having first priority.
The AES/AUTO mode selector button (2) must be in the UP (OFF) position.
Indicator lamp (D) or (E) should also illuminate indicating which energy source the control has selected.
If the CHECK indicator lamp (G) illuminates, see GAS MODE for further instructions.
Press the TEMPERATURE SELECTOR button (5) until the lamp at the desired position is illuminated.
