DongFeng S30 - Page 120

Circuit Diagrams of Electrical Appliances
21-111

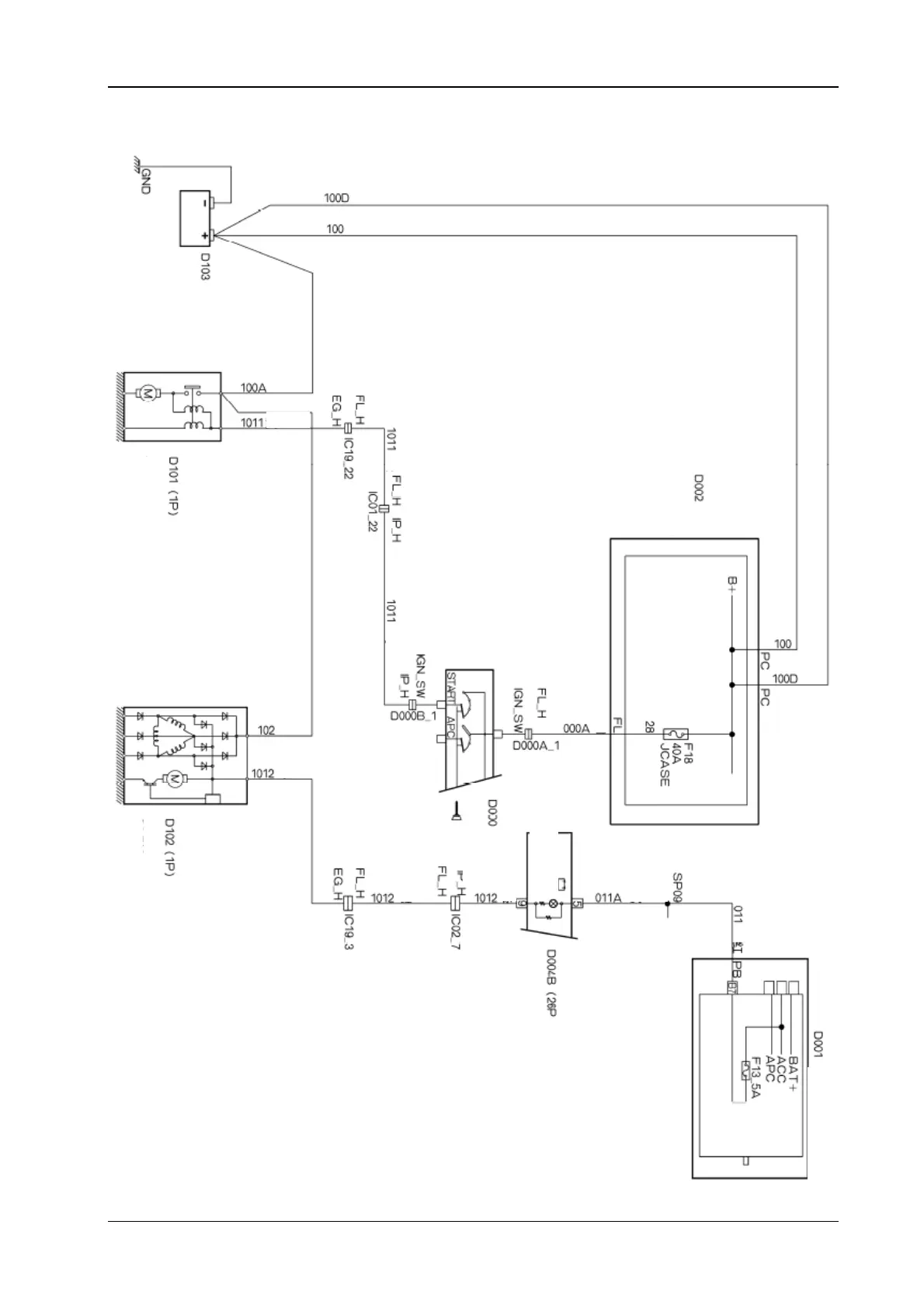

1.2. Electrical appliance diagram of startup and charging apparatus (manual transmission)
S30/H30
Battery
Starter motor
Yellow
Green
Green
Green
Yellow )
Engine compartment
fuse box
Brown
Cabin fuse box
Grey
Battery charging
alarm lamp
Red
Combination instrument
White
Generator
I
g
nition switch
