Circuit Diagrams of Electrical Appliances
21-151

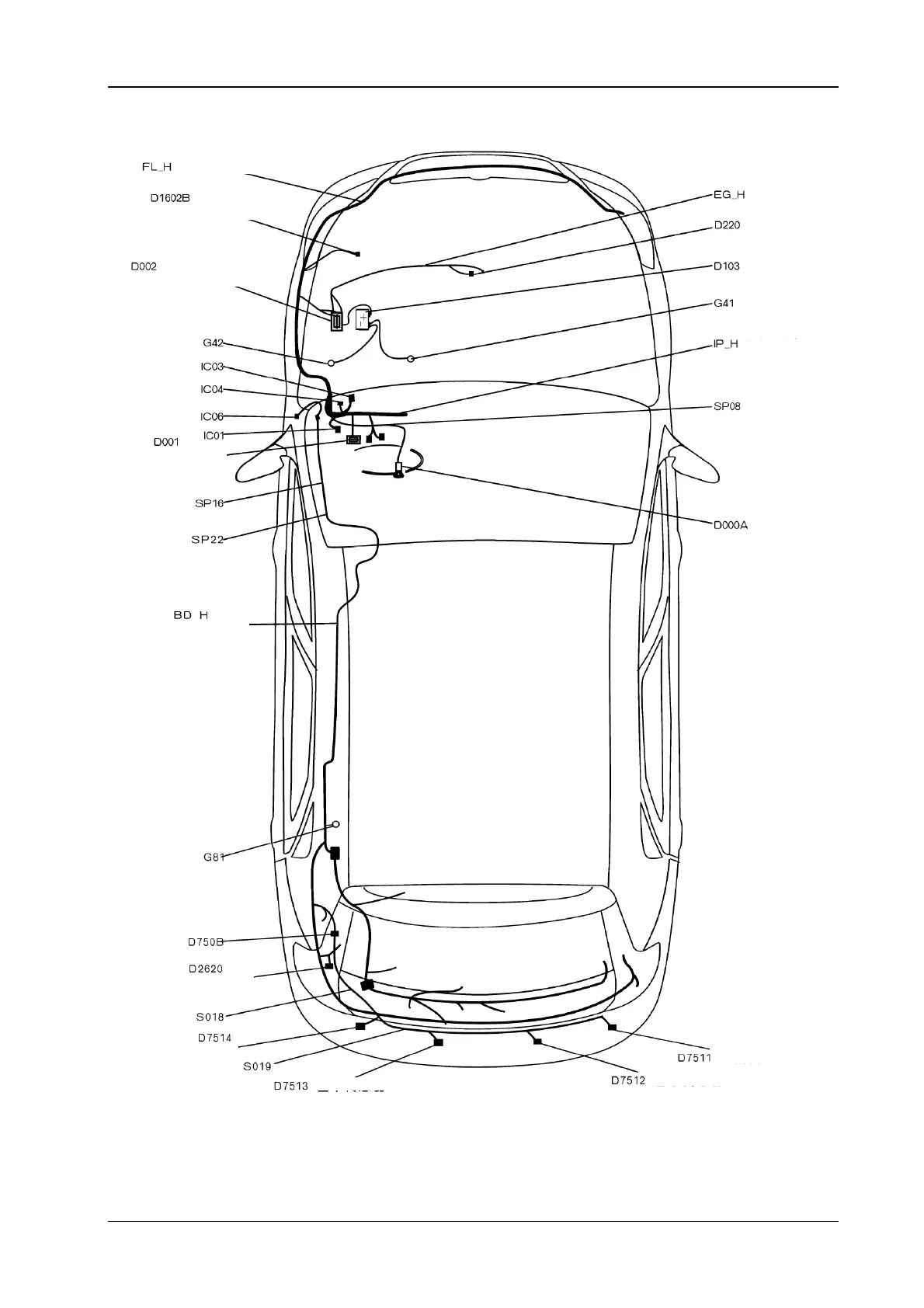

17.2 The auxiliary electrical location diagram for the parking H30
The front wiring harness
The gear selection switch
The engine compartment
Cabin fuse box
Cabin wiring harness
The left back combined light
The ignition switch
The instrument panel wiring
harness
Battery
The reverse light switch
Engine wiring harness
The left side sensor
The left center side sensor
The right center side sensor
The right side sensor
