Sunroof
15-13

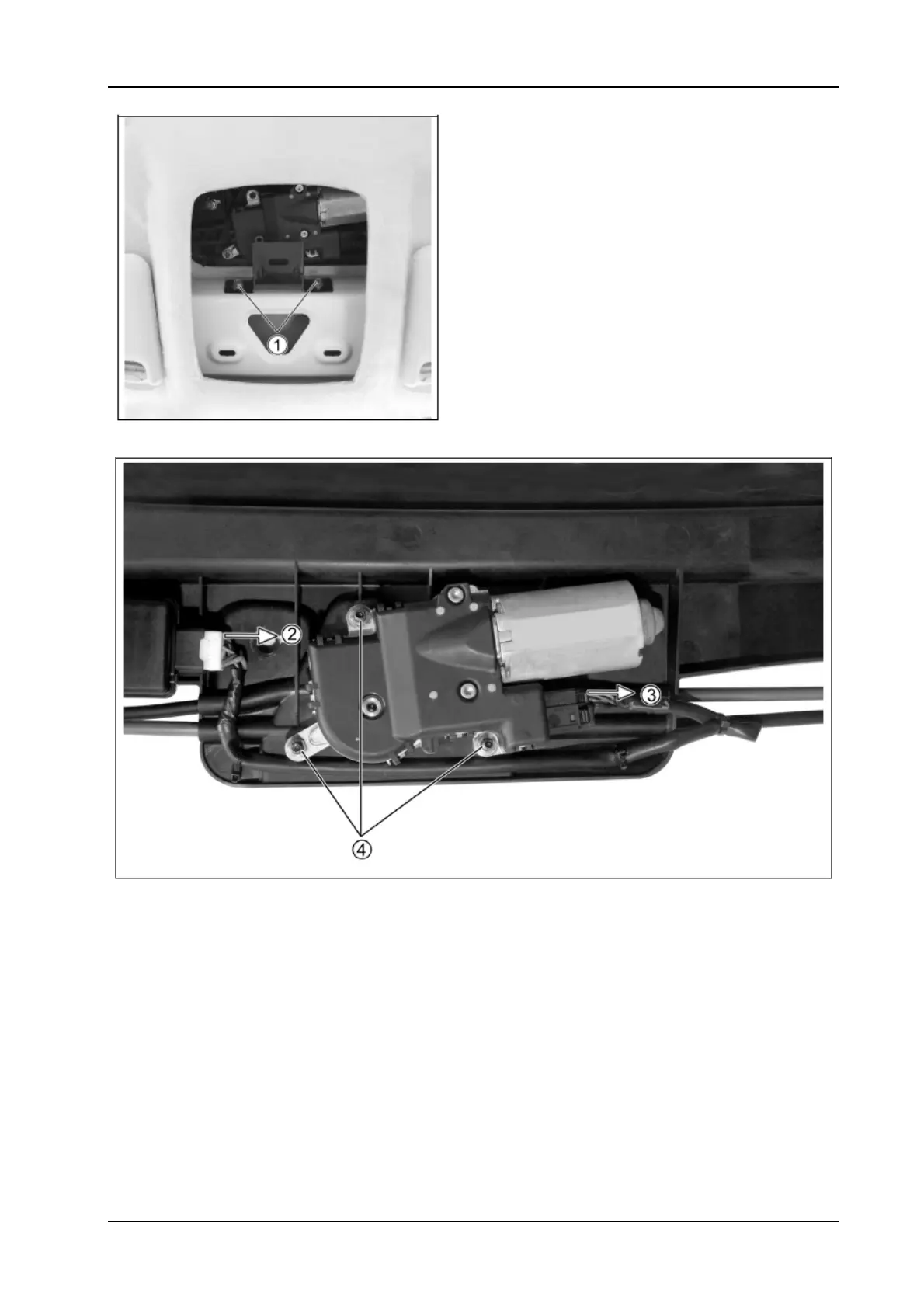

Remove the screw (1) of motor mounting bracket
Press down connector snap and
disengage connector (2);
Press down connector snap and
disengage connector (3);
Remove motor bracket nut (4).
3. Assembly
Assembly is in the reverse order of the
disassembly.
4. Inspection
Connect battery cable;
Turn ignition key to “ACC” position;
Operate sunroof control button to check
whether the sunroof is in normal working
condition.
