Sunroof
15-15

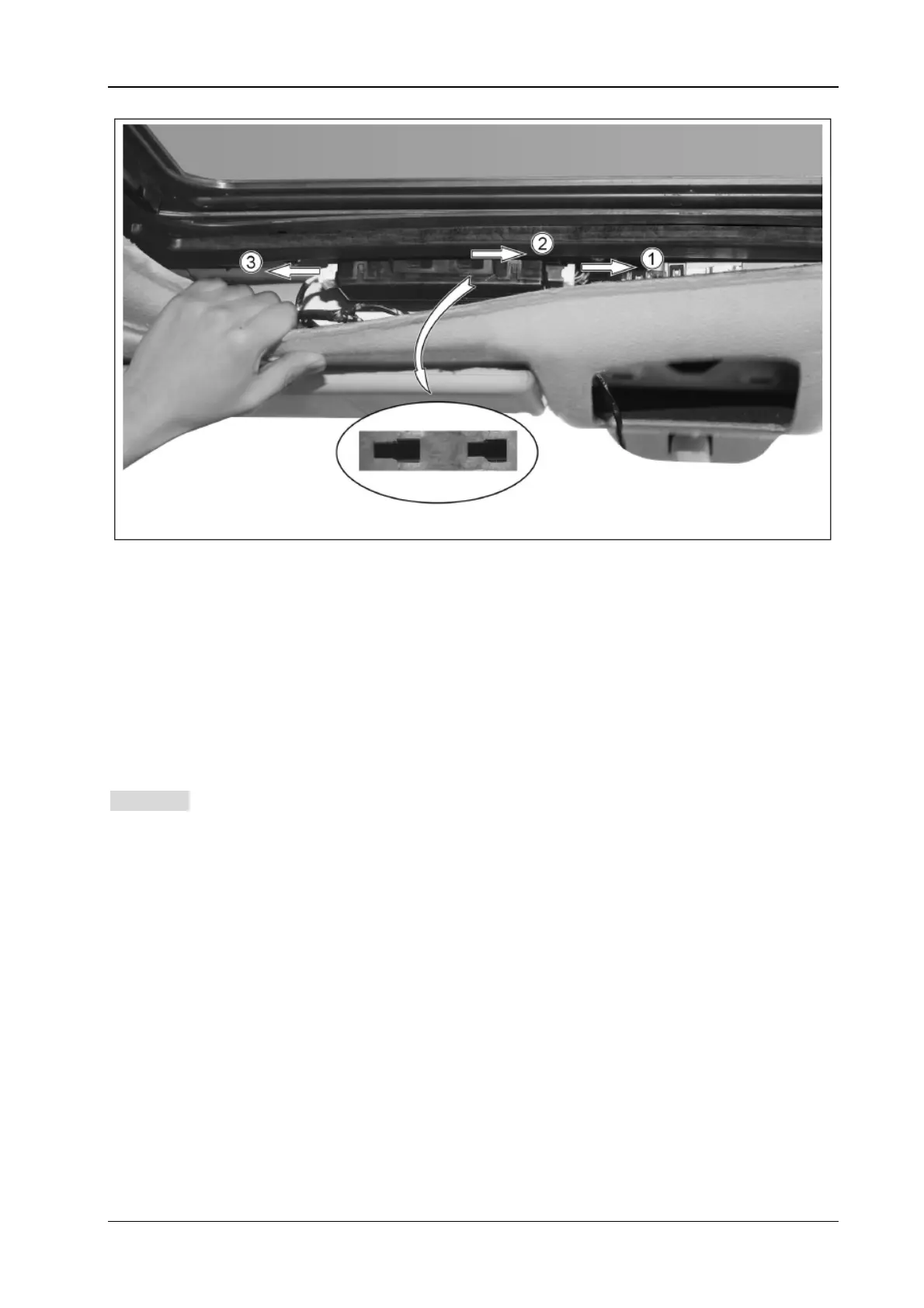

Slightly pull down the roof on the left of front roof lamp;
Press down connector snap and disengage connector (1);
Pull control unit rightward to the right most of snap as indicated in the figure. Push forward to
take down sunroof control unit. Do no damage plastic snap (2);
Pull out control unit rightward, press down connector snap and disengage connector (3).
3. Assembly
Assembly is in the reverse order of the disassembly.
Attention Handle with care to avoid damaging roof.
4. Inspection
Connect battery cable;
Turn ignition key to “ACC” position;
Operate sunroof control button to check whether the sunroof is in normal working condition.
