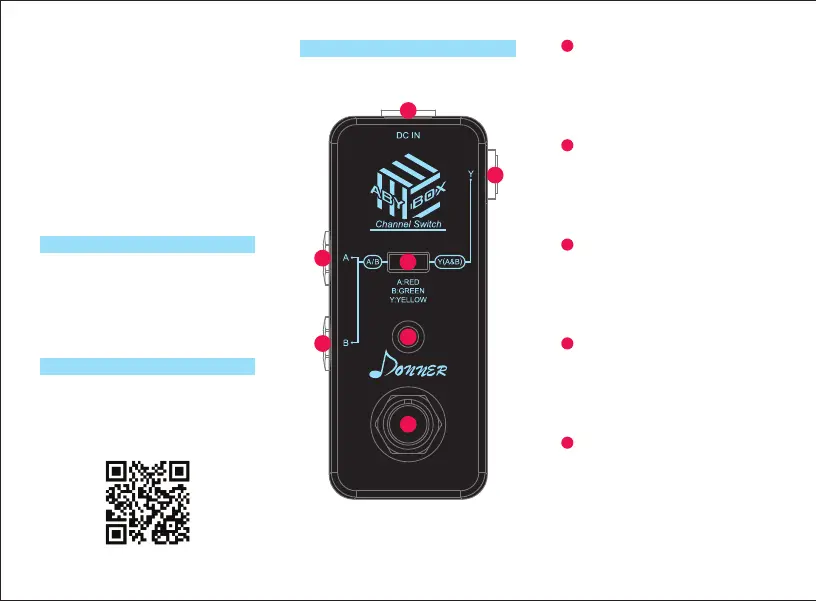

Connections & Controls
for the tiny unit: connect it to your gear,
set a mode and done. The power jack is
for supplying LED onboard only.
●True Bypass
The ABY Box features true bypass
design which keeps your sound pristine.
● Carefully Selected Components
The ABY Box is designed and built with
carefully selected components to ensure
best sound quality and road
performance. The solid Aluminum-alloy
chassis ensures touring reliability.
Features
●Convenient compact size
●True bypass
●Flexible dual-mode ABY box designed
for a variety of scenarios
●Can be used in two ways
●LED indicator shows the working
state
a
b
c
d
e
Specifications
Power Requirement: 9V DC center
negative
Current Consumption: 10mA
Dimensions: 42x93.5x52mm
Weight: 220g
www.donnerdeal.com
a
b
c
d
e
b
b
DC IN Power Jack:
For supplying LED only. Use a 9-volt
DC regulated by AC adapter, 500mA
(plug polarity is positive on the barrel
and negative in the center). This unit
can work without power.
A, B & Y Jacks:
1/4” mono audio jacks, for connecting
instruments, amps or other devices.
The ABY Box can be used in two
ways: the signal can flow from A/B to
Y, or from Y to A/B.
Mode Select Switch:
Selects from A/B and A&B modes.
Due to True Bypass circuit design,
the A and B jacks will affect each
other when used as inputs in A&B
mode.
LED Light:
In A/B mode, the LED indicates A/B
channel status (red means channel A,
green means channel B). In A&B
mode, LED shows yellow indicating
current mode only.
Footswitch:
In A/B mode, tap the footswitch to
switch between channel A and
channel B.
In A&B mode, the footswitch won’t
work.
