MAIN OUT: 1/4" TS mono output connector that outputs overall signal and is controlled by Master
knob.
MIDI IN: MIDI input connector that inputs MIDI messages and can support the use of external
MIDI devices.
MIDI OUT: MIDI output connector that allows you to output the MIDI signal from this unit to control
other MIDI devices.
USB-C : Type-C connector that connects to the host computer for firmware updates and USB MIDI
data transmission.
POWER INPUT: DC9V power input
POWER SWITCH: Power on/off.
AUX IN connector: 1/8" TS audio signal connector that used for connecting other audio signals and
outputting mixed signal with the sound of B1 through MAIN OUT jack and PHONES jack.
Headphone output interface: 1/8" audio signal interface that used for connecting the headphones
output. Turn Master knob can control the volume.
Sync In interface: connecting an external clock to start or stop signal.
Sync Out interface: connect and send internal clock to external device.
Wave switch : shifting between saw wave and square wave on the currently used oscillator.
Pitch knob: potentiometer with a detent at the center that controls oscillator frequency, with a range
of fifth intervals lower on the left half and fifth intervals higher on the right half.
Cutoff knob: controlling the cutoff frequency of low-pass VCF filter, the larger the value of the knob
the higher the cutoff frequency.
Resonance knob: controlling the signal amplitude at the cutoff frequency point, the larger the knob
value the stronger the gain.

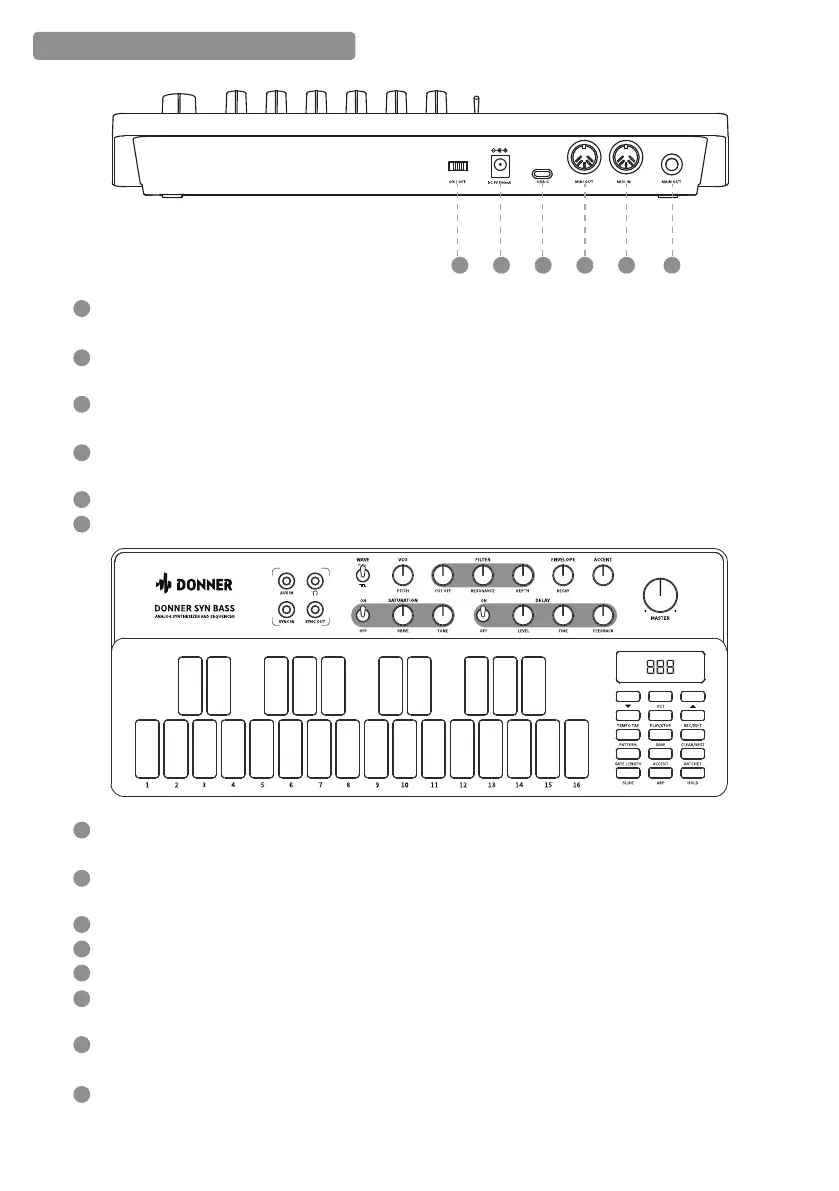

PANEL INTRODUCTION
