5.Folding mechanism
Direction riser folding

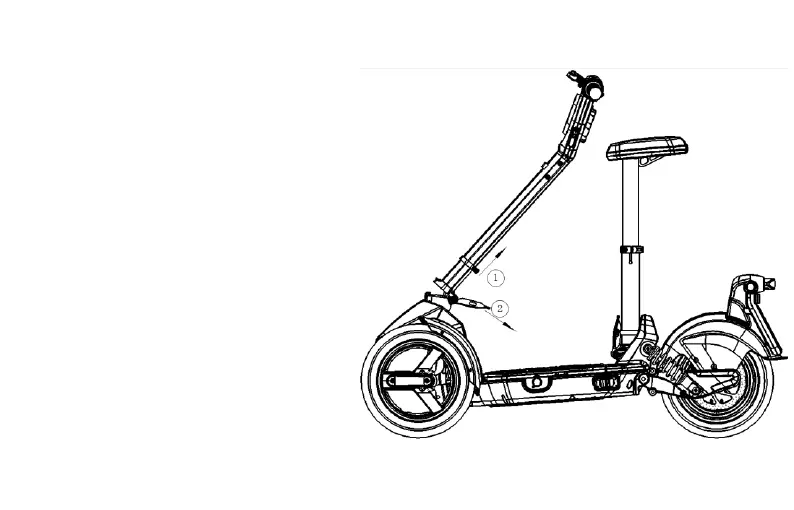

Step 1: Move the 1 direction
riser folding wrench hoop up
in the figure.
Step 2: Pull the 2 direction
riser folding wrench down in
the figure.
It can be folded down as
shown in the picture.
